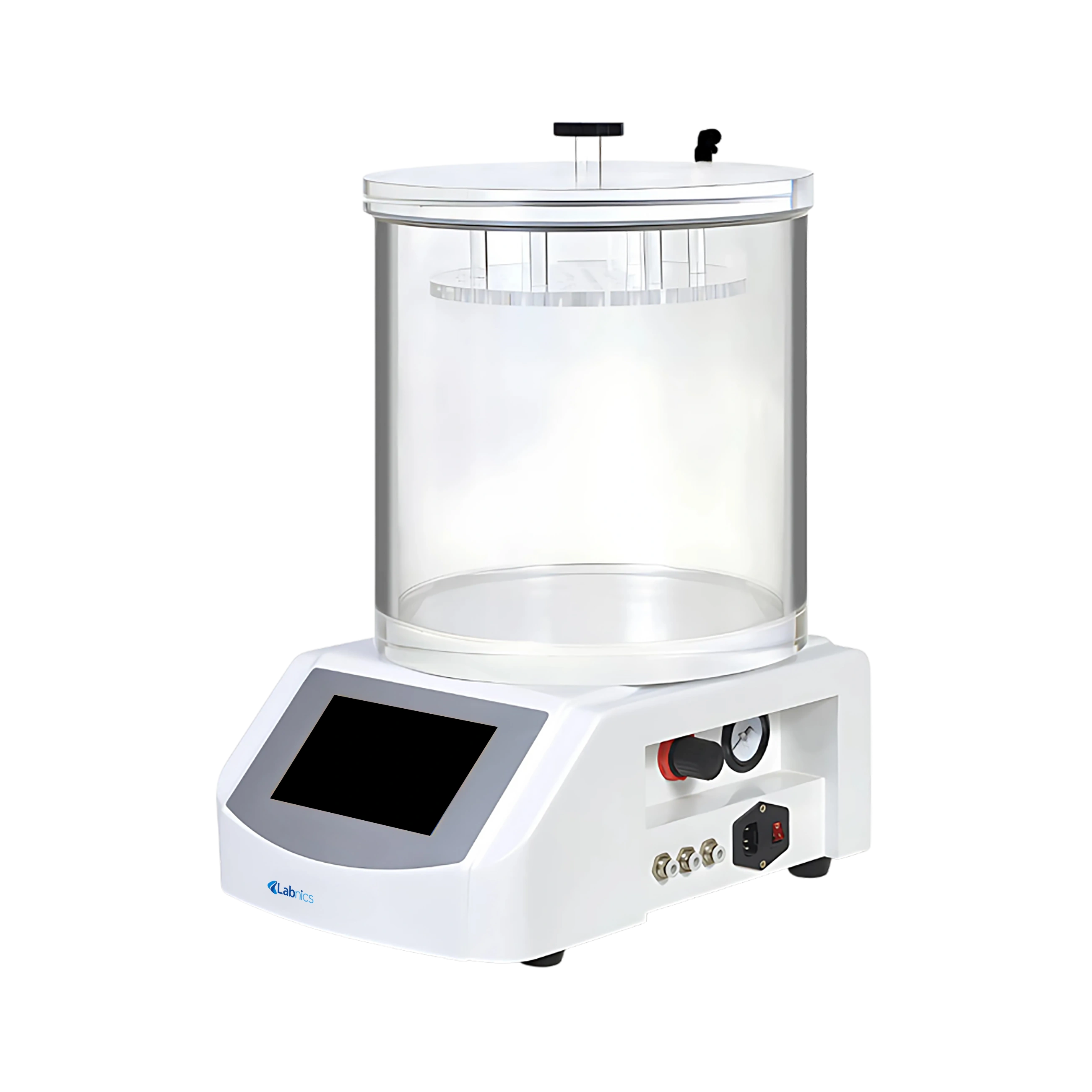

Vacuum Leak Tester NVLT-200 offers a vacuum degree range of 0 to -90 kPa with a fast response speed for accurate and reliable results. It features a 7-inch touch screen for convenient operation and clear data display. This has multiple test modes that allow users to perform flexible and customizable testing. Our compact design and customizable chamber sizes make it suitable for a wide variety of packaging materials. It has a long pressure holding time to ensure dependable leak testing across different applications.
$3,100.00
Specifications
| Vacuum Degree | 0 to -90 kPa |
| Response Speed | < 5 ms |
| Resolution | 0.01 kPa |
| Sensor Precision | ≤ 0.5 |
| Air Source | Compressed air |
| Test Mode | Single point mode, Increment mode |
| Screen | 7-inch touch screen |
| Pressure Range | 0.2 to 0.7 MPa |
| Port Size | Φ6 |
| Pressure Holding Time | 0 to 99999 s |
| Vacuum Chamber Sizes | Φ270 × 210 mm (H), Φ360 × 585 mm (H), Φ460 × 330 mm (H) |
| Dimension (L×B×H) | 420 × 300 × 165 mm |
| Net weight | 20 Kg |
| Gross weight | 25 Kg |
Features
Applications
Ask Expert
FAQ for Vacuum Leak Tester NVLT-200
1: What is the vacuum degree range of Vacuum Leak Tester NVLT-200?
The Vacuum Leak Tester NVLT-200 supports a vacuum range of 0 to -90 kPa, making it highly effective for detecting leaks in packaging. This wide range ensures compatibility with different product materials and testing requirements.
2: Does this Vacuum Leak Tester NVLT-200 support multiple test modes?
Yes, the Vacuum Leak Tester NVLT-200 offers single point mode and increment mode, allowing users to adapt testing methods to packaging types. These modes provide flexibility and improve accuracy in detecting even minor leaks.
3: Can the vacuum chamber size be customized in the Vacuum Leak Tester NVLT-200?
The Vacuum Leak Tester NVLT-200 comes with standard chamber sizes, but customization is available based on user requirements. This ensures that the tester can accommodate a wide range of packaging formats and sizes.
4: How is data displayed during testing in the Vacuum Leak Tester NVLT-200?
Vacuum Leak Tester NVLT-200 features a 7-inch touch screen that provides a clear, real-time display of vacuum levels, pressure status, and testing progress. This makes operation easy and minimizes human error in result interpretation.
5: In which industries can this Vacuum Leak Tester NVLT-200 be used?
Vacuum Leak Tester NVLT-200 is widely used in food, pharmaceuticals, consumer goods, and industrial packaging industries. The tester helps ensure product safety, compliance, and packaging integrity against leaks or seal failures.
