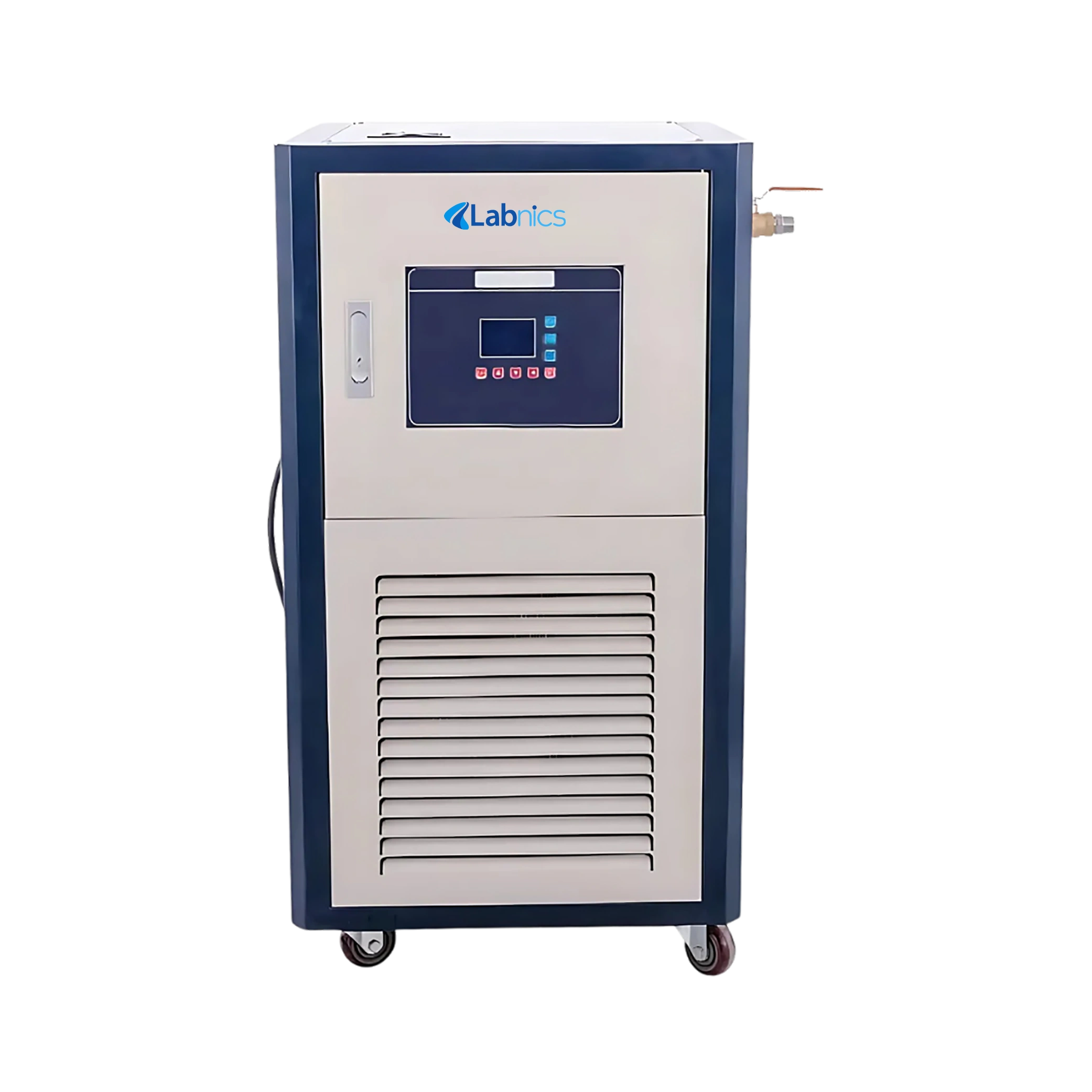

Refrigerated and Heating Circulator NRHC-402 comes with a 10-liter capacity, making it suitable for medium-scale operations. It features a temperature control range from -80°C to 200°C for versatile applications. This unit employs R22 refrigerant to deliver efficient cooling. It is built with a cold plate spray-coated body that resists corrosion for enhanced durability. Our circulator contains high-grade silicone oil that ensures consistent performance across extreme conditions.
| Capacity | 10L |
| Temperature range | -80°C to 200°C |
| Ambient temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Refrigerant | R22 |
| Body material | Cold plate spray anticorrosion |
| Compressor type | Closed |
| Compressor quantity | 2 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating, over-temperature, phase sequence, and phase loss protection |
| Compressor power | 4410W |
| Cooling capacity | 13944W |
| Heating power | 3000W |
| Total power consumption | 7510W |
| Power supply | 3phase 380V/50Hz |
| Outer loop interface | 4 points wire mouth with 4 points × 2 meters metal circulation pipe two |
| Circulating fluid | Grade A silicone oil |
| Product dimension | 804×703×900 mm |
Refrigerated and Heating Circulator NRHC-402 is used for precise temperature control in processes requiring both rapid cooling and heating across a wide range. It is commonly applied in pharmaceutical labs, chemical synthesis setups, and research facilities involving jacketed reactors or thermal testing.
