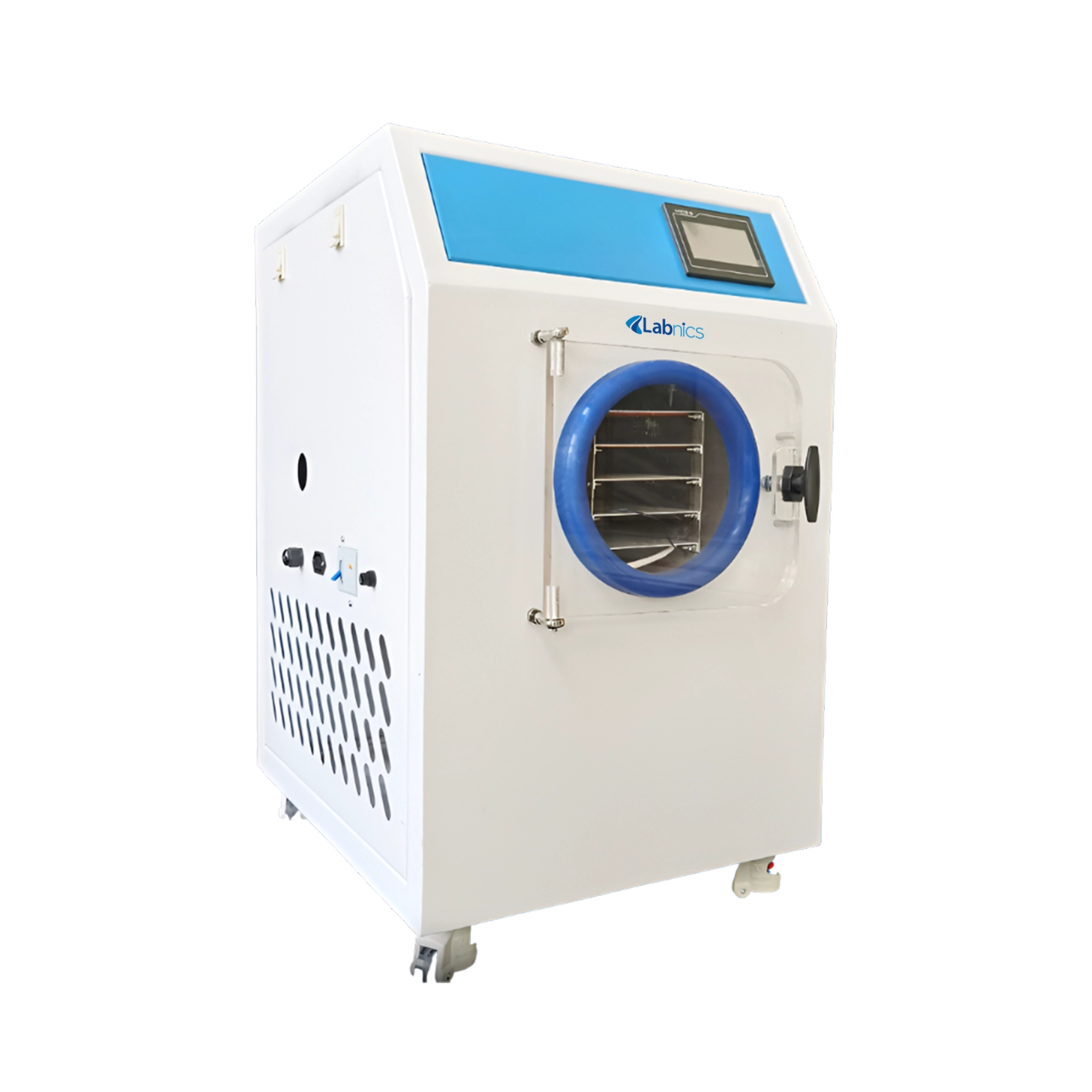

Pilot Freeze Dryer NPFD-302 features a 0.5 m² shelf area, offering greater volume for larger volume of samples in a single cycle. Our freeze dryer with a 5 kg input capacity offers efficient and reliable performance. It has Stainless steel trays that ensure durability, easy cleaning, and corrosion resistance. Our freeze dryer has a compact design that saves space and fits easily in pilot-scale production environments. This unit features an air-cooled system for efficient operation without water connections.
| Shelf area | 0.5 m2 |
| Nominal input capacity | 5 kg |
| Maximum input capacity | 7.5 kg |
| Maximum ice capacity | 7.5 kg |
| Product cooling | -20 to -30 ℃ |
| Product cooling way | In dryer |
| Ice condenser | -25 to -35 ℃ |
| Tray quantity | 6 pcs |
| Tray size | 245 × 315 mm |
| Way of cooling | By air |
| Ultimate vacuum | 15 Pa |
| Installation area | 2 m2 |
| Power frequency | 50/60Hz |
| Power phase | Single |
| Power consumption | 2.5 kw |
| Power supply | 220/115V |
| Dimension (L × W × H) | 860 × 650 × 1060 mm |
| Gross weight | 230 kg |
Pilot Freeze Dryer NPFD-302 is used to gently remove moisture from heat-sensitive products while maintaining their integrity and effectiveness. It is ideal for applications in food, pharmaceuticals, biotechnology, and research laboratories.
Air-cooled condenser
