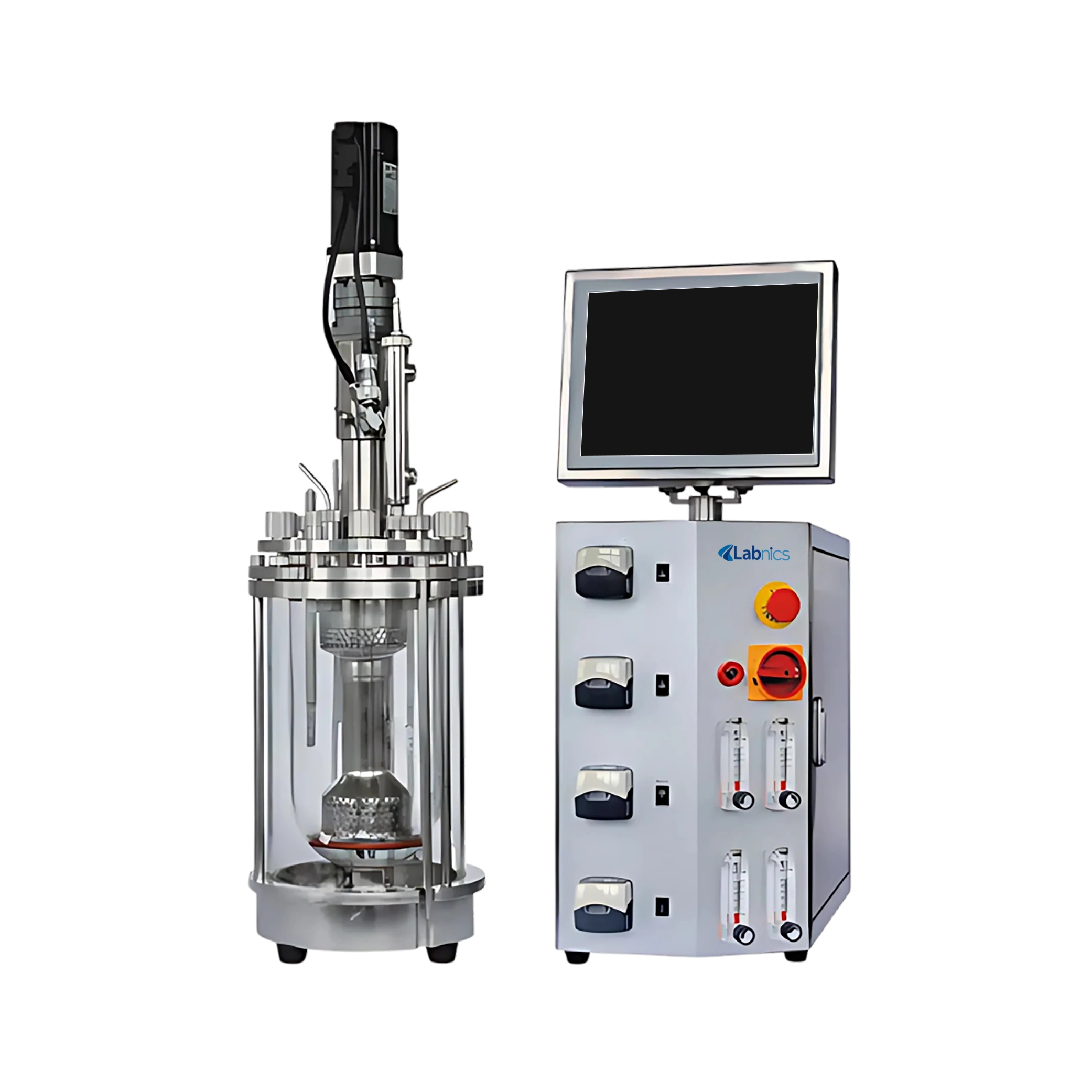

Jacketed Glass Reactor NJGR-401 is a compact and versatile bioreactor with a total volume of 10 L. It offers speed range from 50-1000 rpm to enhance nutrient exchange during culture. This system includes a turbine agitator for efficient mixing and deep aeration without damaging microorganisms. It includes four peristaltic pumps and a servo motor for stable and flexible operation. Our model is built with an industrial touchscreen, ensuring precise PID control and an intuitive user experience.
| Total Volume | 10 L |
|---|---|
| Working Volume | 7 L |
| Tank Material | Borosilicate glass |
| Top Cover | Equipped with various process ports |
| Stirring Method | Top mixing, servo motor, PID control |
| Speed Range | 50 to 1000 rpm |
| Impeller Type | Plow type impeller |
| pH Measurement | Mettler or Hamilton, 0 to 14PH, PID control, accuracy: ±0.02 |
| DO Measurement | Mettler or Hamilton, 0 to 200%, PID control, accuracy: ±2% |
| Liquid Level Sensor | Stainless steel probe, PID control, 1 to 2 probes |
| Temperature Sensor | Compact transmitter, accuracy: ±0.1°C |
| Gas Flow Control | Thermal mass flow controller (0.1 to 5 SLPM) |
| Inlet Filter | 37 mm, 0.2 µm, PTFE |
| Outlet Filter | 50 mm, 0.2 µm, PTFE |
| Exhaust Condenser | 316 L stainless steel |
| Liquid Feeding | 4 peristaltic pumps, 30 rpm, 0 to 100% adjustable time |
| Temperature Control Method | PID regulation, via cooling water or electric heating blanket |
| Temperature Control Accuracy | Display: ±0.1°C, Control: ±0.2°C |
| Control System | 5°C to 65°C above cooling water temperature |
| Power consumption | 2 Kw, 10 A |
| Sterilization size (Ø × H) | 260 × 630 mm |
| Product Dimension (Ø × H) | 290 × 820 mm |
