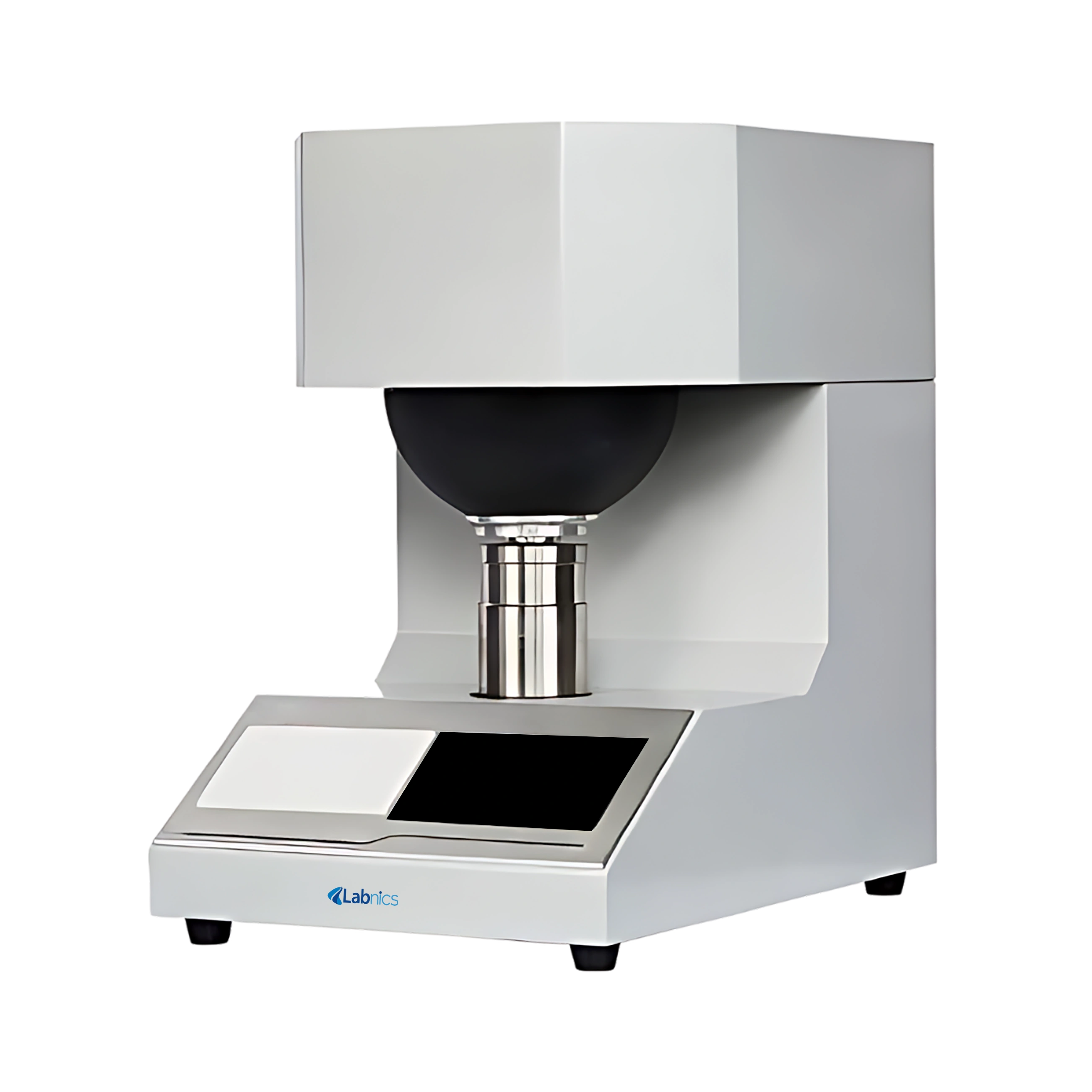

Automatic Colorimeter NACM-100 offers precise color evaluation with chromaticity accuracy up to 0.0001. Our compact design includes a built-in thermal printer for instant documentation. This instrument provides stable measurements even under varying temperature conditions. It has excellent repeatability and long-term accuracy for quality control and research applications. This easy to operate offers a dependable tool for laboratories and industries requiring accurate color analysis.
$5,063.00
Specifications
| Working Environment | 10 to 35 ℃, Humidity ≤ 85% |
| Sample Size | Plate ≥ 30 mm, thickness ≤ 40 mm |
| Indication Accuracy | Chromaticity coordinate ≤ 0.0001; others ≤ 0.01 |
| Data Stability | ±5 ℃ temperature range, ≤ 0.1 |
| Repeatability Accuracy | Coordinate ≤ 0.003; R457 ≤ 0.03 |
| Specular Reflectance Accuracy | Rx, Ry, Rz ≤ 0.03; Chromaticity ≤ 0.1 (after 30 min preheating) |
| Built-in thermal printer | |
| Communication Interface | RS232 |
| Power Consumption | 50 W |
| Power Supply | AC (100 to 240)V, 50/60 Hz |
| Dimension (L×W×H) | 380 × 260 × 410 mm |
| Weight | 12.5 kg |
Features
Applications
Ask Expert
FAQ for Automatic Colorimeter NACM-100
1: What makes the Automatic Colorimeter NACM-100 highly accurate?
The Automatic Colorimeter NACM-100 ensures chromaticity coordinate accuracy up to 0.0001 and repeatability of ?0.003. This level of precision makes it suitable for demanding laboratory and industrial quality control applications.
2: Can the Automatic Colorimeter NACM-100 store and print results?
Yes, Automatic Colorimeter NACM-100 comes with a built-in thermal printer for instant result output. Additionally, data can be stored and easily transferred via RS232 for extended analysis and reporting.
3: How stable are the measurements under varying conditions in Automatic Colorimeter NACM-100?
The Automatic Colorimeter NACM-100 maintains data stability within ±0.1 across a 5 ? temperature range. This ensures consistent and repeatable results, even when environmental conditions slightly fluctuate.
4: Is the Automatic Colorimeter NACM-100 suitable for powders and textiles?
Yes, the Automatic Colorimeter NACM-100 is versatile and can measure colors of powders, textiles, plastics, paper, and building materials. Its wide application range makes it suitable for both industrial and laboratory testing.
5: How user-friendly is the Automatic Colorimeter NACM-100?
The Automatic Colorimeter NACM-100 is designed with simple operation, compact structure, and energy-efficient components. Its intuitive interface makes it easy for new and experienced users to operate with minimal training.
6: What is the main purpose of an Automatic Colorimeter?
An Automatic Colorimeter is primarily used to measure the color, whiteness, and chromaticity of solids, powders, textiles, and building materials. It ensures accuracy and consistency in industrial and laboratory color analysis.
7: Which industries commonly use Automatic Colorimeters?
Automatic Colorimeters are widely used in industries such as paper and pulp, textiles, plastics, chemicals, food, ceramics, and building materials where accurate color quality and consistency are essential.
8: How is an Automatic Colorimeter different from a manual colorimeter?
Unlike manual models, Automatic Colorimeters feature touch screen controls, automated calibration, and digital data recording, which reduce errors and improve repeatability of results.
9: Can Automatic Colorimeters detect fluorescence in samples?
Yes, many Automatic Colorimeters can measure fluorescence brightness, enabling accurate detection of optical brightening agents and fluorescent additives in materials.
10: Why are Automatic Colorimeters important for quality control?
Automatic Colorimeters provide reliable and repeatable measurements, ensuring products meet industry standards for color and brightness. This reduces rejection rates and enhances overall quality assurance.
