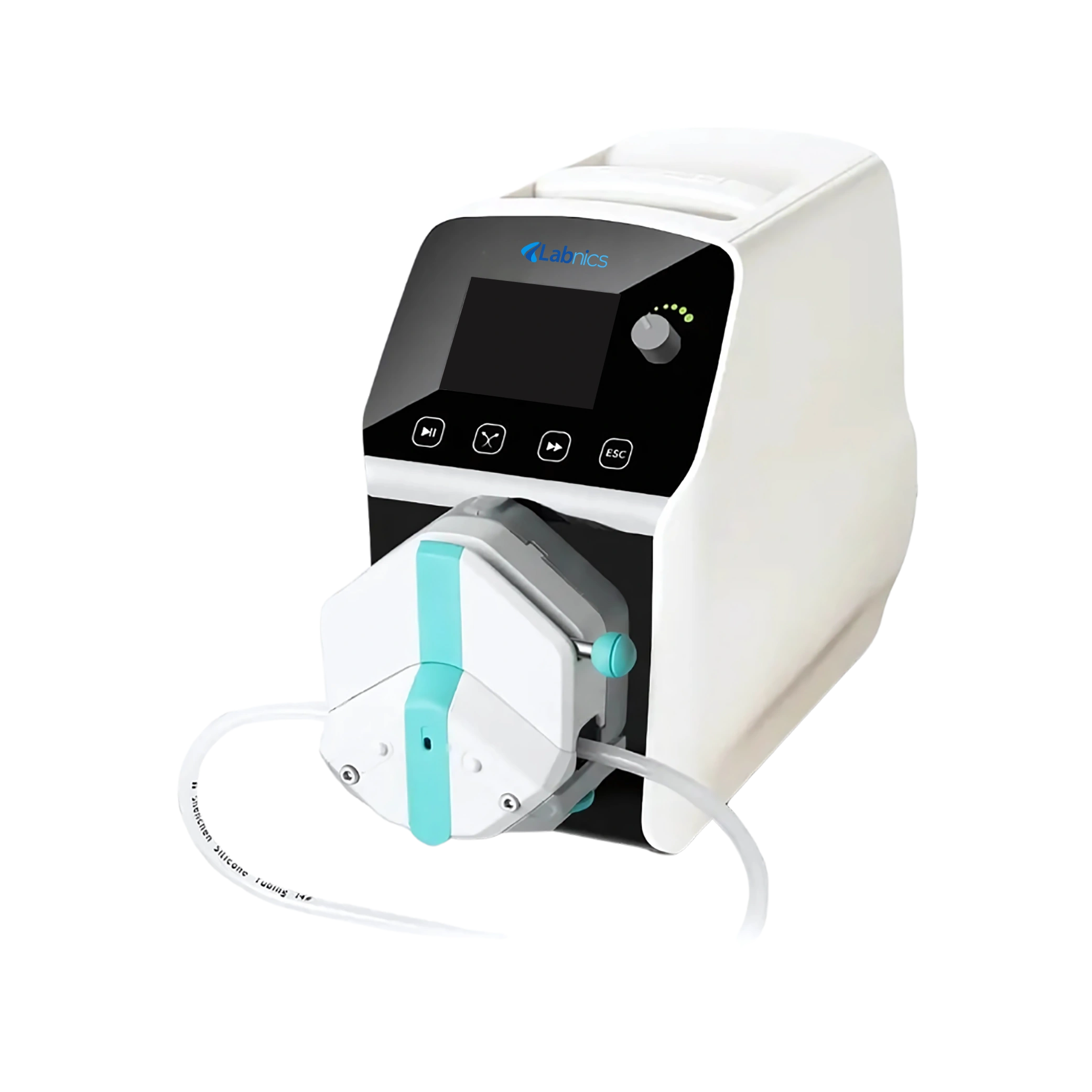

Intelligent Flow Peristaltic Pump NIFPP-300

Name: Intelligent Flow Peristaltic Pump NIFPP-300
Brand: Labnics
SKU: NIFPP-300
Rating: 4.8 (845 reviews)

Intelligent Flow Peristaltic Pump NIFPP-300 offers a speed range of 0.1 to 150 RPM with a resolution of 0.1 RPM. It uses a UV spray coating for enhanced chemical resistance and surface protection. This unit features a large LCD for clear and real-time display of working parameters. It includes tactile mechanical keys for accurate and comfortable operation. Our flow peristaltic pump has an ABS plastic shell for improved structural integrity and longevity.

$3,013.00

Data Sheet

Specifications

Flow Range	0.0053 to 775 mL/min
Flow Resolution	0.01 mL
Speed Range	0.1 to 150 RPM
Speed Resolution	0.1 RPM
Testing Time Range	0.1s to 9999h
Motor type	Closed-loop stepper motor
Display	3.2 inch
Temperature Range	0 to 40°C
Relative Humidity	<80%
Control Method	Mechanical keypad + Rotary encoded switch
Keypad Lifespan	300,000 times
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	259 × 157 × 237 mm
Weight	4.40 kg

Features

Strong anti-jamming design

Wide voltage compatibility

Compact structure

Power-down memory

Built-in timing function

Applications

Intelligent Flow Peristaltic Pump NIFPP-300 is ideal for industrial automation, precise laboratory liquid transfer, controlled chemical dispensing, biomedical research, and food and beverage processing.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
