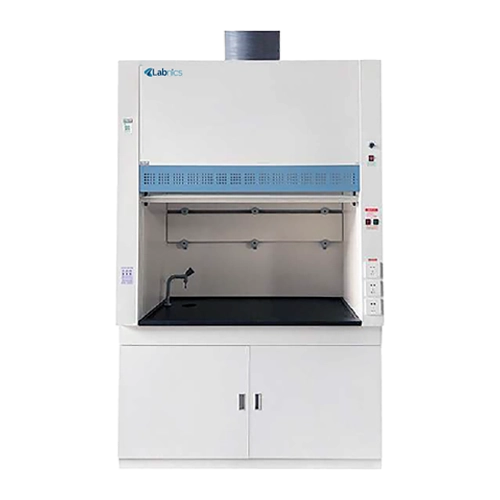

Ducted Fume Hood NDFH-102 also known as fume cupboard is designed to draw air away from the working area to protect the user from inhaling hazardous air contaminants or other toxic chemicals. The fume hoods create a negative air pressure environment by pulling the contaminated air up and away from the user's breathing zone and into a ventilation system or filter chamber. Anti-corrosive, anti-acid compact panel ensures safe working environment.
|Overall dimension (L × W × H)||1200 × 650 × 1900 mm|
|Working area dimension (L × W × H)||1000 × 600 × 750 mm|
|Surface wind speed||0.3 to 0.6 m/s|
|Exhaust duct diameter||250 mm|
|Sliding door thickness||5 mm|
|PP cup diameter||100 mm|
|Worktop thickness||12.7 mm|
|Inner lining board thickness||5 mm|
|Shell thickness||1.0 mm|
|Axial fan flow||110 W|
|Air Flow Velocity||1850 m3/h|
|Rated Power||2000 W|
|Noise level||≤ 60dB|
|Power Supply||AC 110 V/ 220 V; 50-60 Hz|
Used in research & development processes, pharmaceutical laboratories, microbiological laboratories, quality control laboratories, etc.
|4||Faucet (water type)|
|5||Sink (water type)|
