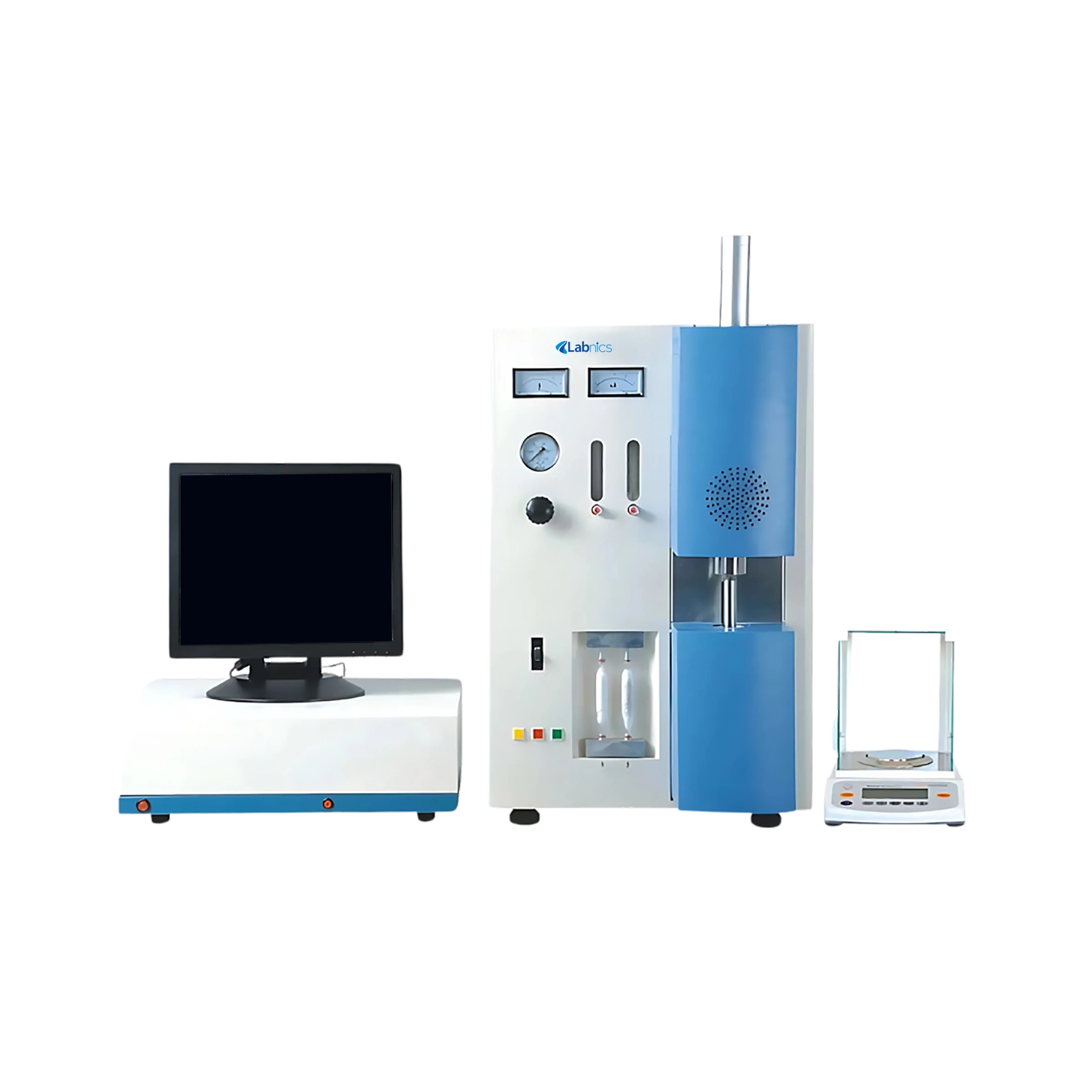

IR Carbon and Sulphur Analyzer NCSA-104 accurately measure carbon and sulfur concentrations from 0.0005% to 99.9999%. Our unit has an automatic high-frequency inductive combustion furnace for precise analysis. It integrates a TSC infrared detector with platinum IR light for stable measurements. It includes a high-precision flow controller to ensure consistent gas flow. This analyzer enables simultaneous analysis of high and low carbon and sulfur concentrations in a single measurement.
| Measurement range | Carbon: 0.0005 % to 99.9999 % Sulphur: 0.0005 % to 99.9999 % |
| Analysis time | 25 to 60 seconds (adjustable) |
| Oscillation frequency | 20 MHz |
| Analysis precision | Carbon: RSD ≤ 1.0 % Sulphur: RSD ≤ 1.5 % |
| Metal filter pore size | 0.4 μm |
| Sensitivity | 0.1 ppm |
| Reading Precision | 0.0001 grams |
| Indoor temperature | 10 ℃ to 30 ℃ |
| Relative humidity | < 75 % |
| Sample weight | 0.5 grams |
| Carbon analysis pool | 1 |
| Sulphur analysis pool | 1 |
| Burning power | 2.2 kVA |
| Dimension of furnace (L × W × H) | 640 × 500 × 790 mm |
| Dimension of analysis unit (L × W × H) | 530 × 370 × 200 mm |
| Packaging dimension (L × W × H) | 1380 × 760 × 980 mm |
| Net weight | 130Kg |
| Gross weight | 192Kg |
IR Carbon and Sulfur Analyzer NCSA-104 is used for precise determination of carbon and sulfur content in various materials. It is widely applied in metallurgy, mining, steel production, foundries, cement, and research laboratories.
| Accessory No | Accessory | Quantity |
| 1 | Main unit | 1 |
| 2 | High frequency automatic inductive combustion furnace | 1 |
| 3 | Electric balance | 1 |
| 4 | Computer | 1 |
| 5 | Printer | 1 |
