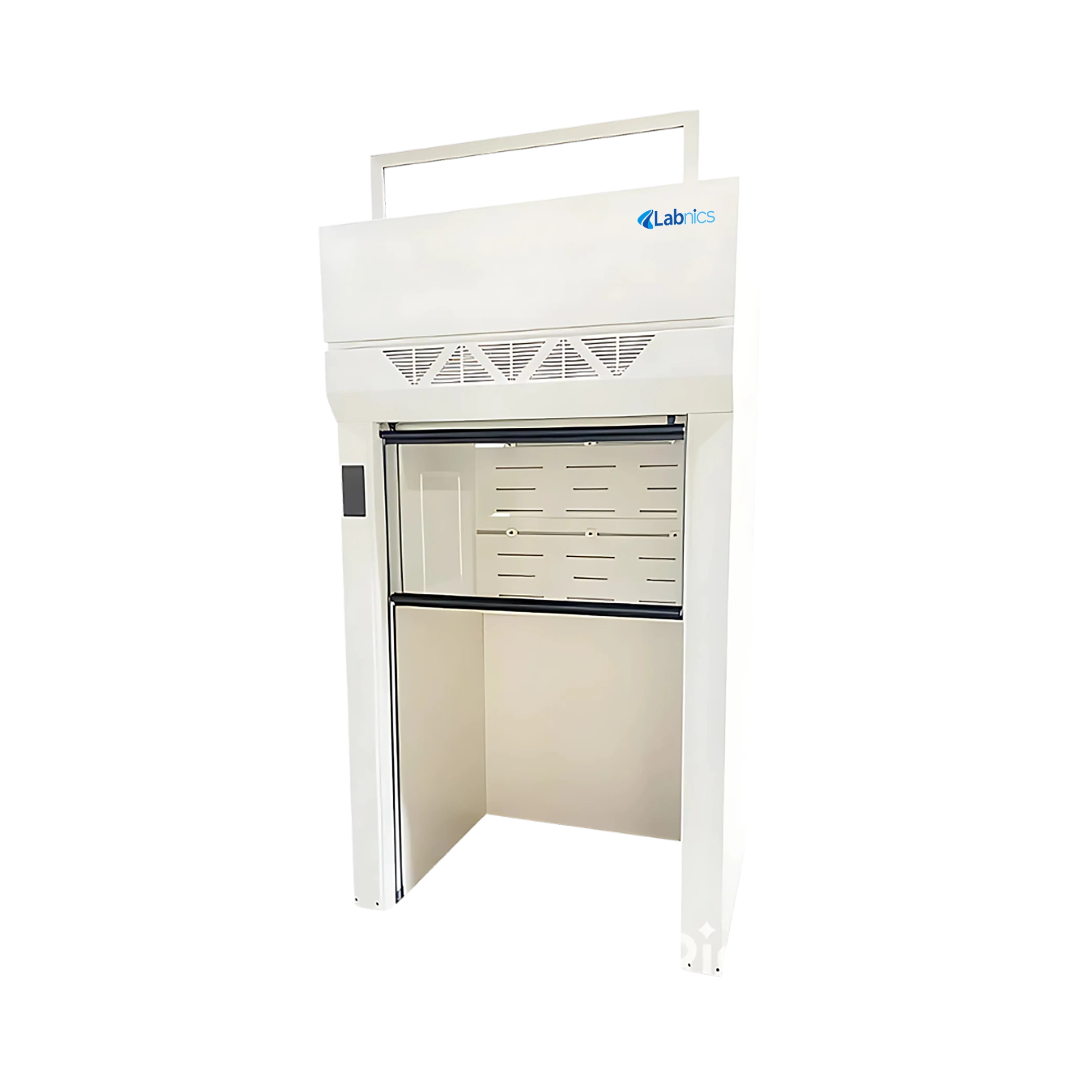

Walk in Fume Hood NWFH-100 has 30W LED lamp ensures bright, purified lighting with >300 LUX output. This features a 1.0 mm thick steel body coated with epoxy resin and cured at high temperature. It includes two explosion-proof tempered glass sashes with synchronized lifting for smooth operation. Our intelligent control panel manages all key functions including ventilation, lighting, and sterilization. It includes built-in electrical sockets for convenient power access designed to ensure efficient fume extraction and superior chemical resistance.
| Baffle Material |
Polypropylene (PP) |
| Body Material |
1.0 mm cold-rolled steel with epoxy coating, thickness 1.15–1.2 mm |
| Surface Treatment |
Phosphating + electrostatic epoxy powder coating, cured at 220°C |
| Control System |
Intelligent digital switch (fan, power, lighting, sockets, sterilization, damper) |
| Sash Type |
Two vertical rising sashes with 5 mm tempered explosion-proof glass |
| Sash Mechanism |
Synchronized counterweight system with aluminium alloy handle |
| Lighting |
LED purification lamp, 30W, >300 LUX brightness |
| Interior Liner |
5 mm compact-grade laminate |
| Junction Box |
Integrated with circuit board and AC contactor; suitable for 110V–230V |
| Dimensions (W × D × H) |
1200 × 850 × 2350 mm |
Walk in Fume Hood NWFH-100 is used in laboratories for safe ventilation during chemical handling, experiments, or sterilization procedures. It is commonly installed in pharmaceutical labs, research institutes, and educational settings requiring dual access and high safety.
FAQ for Walk in Fume Hood NWFH-100
1: What is a Walk in Fume Hood NWFH-100 used for?
It is designed for safely ventilating large or tall lab equipment that doesn't fit in standard fume hoods.
2: Can multiple users work in a Walk in Fume Hood NWFH-100?
Yes, its spacious design allows safe, simultaneous use by more than one operator.
3: Does Walk in Fume Hood NWFH-100 support tall apparatus setups?
Absolutely, it’s built specifically for vertical space and floor-standing instruments.
4: Is the airflow system adjustable in Walk in Fume Hood NWFH-100?
Yes, most walk-in hoods come with intelligent controls to manage airflow and exhaust.
5: What safety features does Walk in Fume Hood NWFH-100 include?
Explosion-proof glass, smooth sash movement, LED lighting, and corrosion-resistant interiors.
6: What types of equipment are walk-in fume hoods designed for?
They are ideal for floor-mounted or tall laboratory instruments that require more vertical space than standard hoods can offer.
7: Can a walk-in fume hood handle highly corrosive substances?
Yes, they are built with chemical-resistant materials such as polypropylene and epoxy-coated steel for high durability.
8: Are walk-in fume hoods suitable for cleanroom environments?
Many models meet cleanroom compatibility standards and include HEPA/ULPA filtration options if required.
9: How do the sash mechanisms function in walk-in fume hoods?
They typically use a counterweight system that allows smooth, vertical movement for ease of access and user safety.
