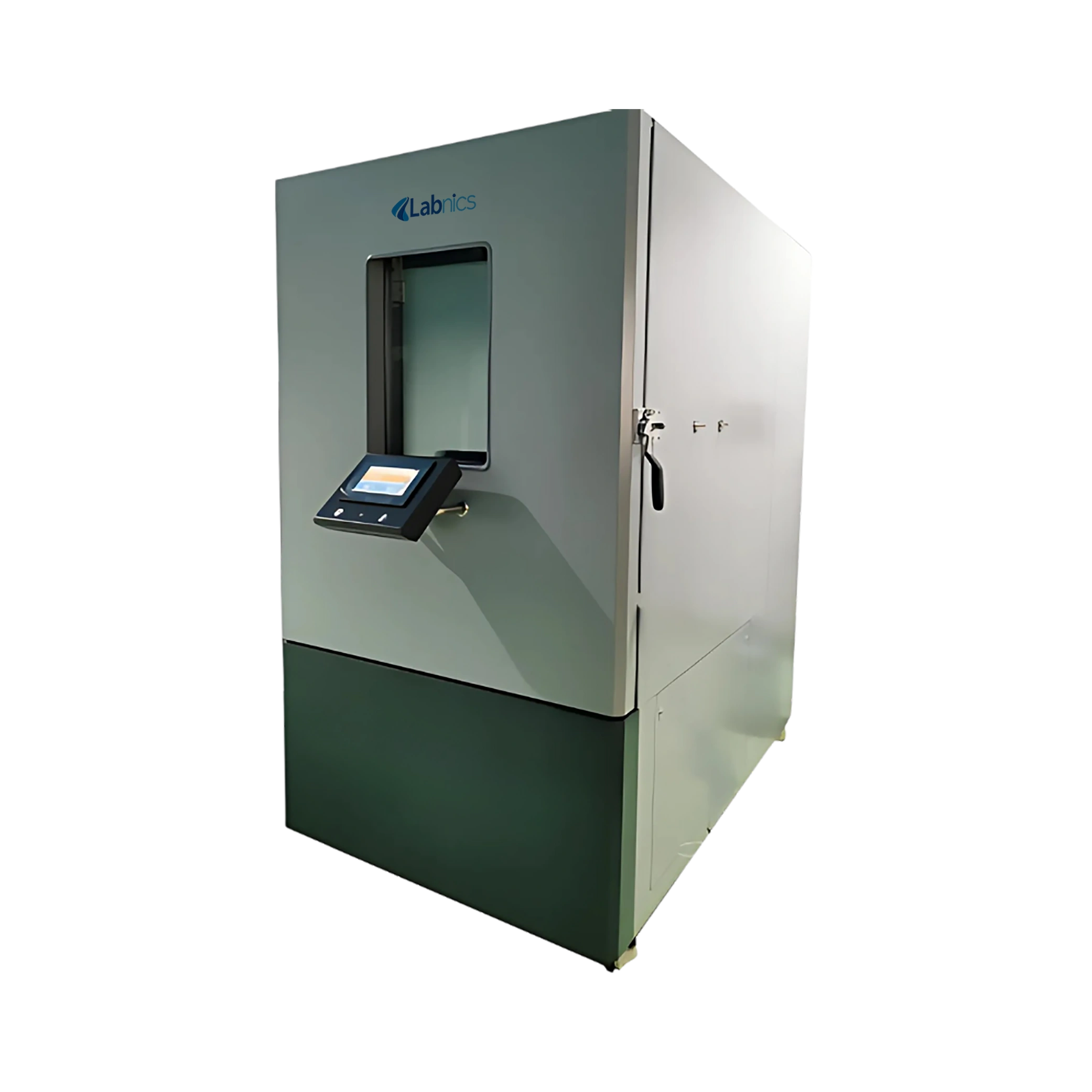

Formaldehyde Climate Chamber NFCC-100 features a chamber with a temperature range of 15 to 40 ℃ and humidity range of 30 to 80 % R.H. It offers accurate air exchange rates that ensure reliable formaldehyde concentration monitoring. Our inner stainless steel chamber ensures durability with advanced insulation. It is equipped with a high-precision sampling pump and positive pressure maintenance. This feature ensures reliable and repeatable test results under controlled conditions.
| Chamber Volume | (1 ± 0.02) m³ |
| Adjustable Temperature Range | 15 to 40 ℃ (Temperature Deviation: ±0.5 ℃) |
| Temperature Fluctuation | ≤ ±0.5 ℃ |
| Adjustable Humidity Range | 30 to 80 % R.H. (Regulation Accuracy: ±3 % R.H.) |
| Humidity Fluctuation | ±3 % R.H. |
| Air Exchange Rate | 0.2 to 2.0 times/hour |
| Air Replacement Volume | 0.5 to 1.5 m³/h |
| Air Flow Speed | 0.1 to 0.3 m/s |
| Test Temperature | 23 ℃ ± 0.5 ℃ |
| Test Humidity | 45 % ± 3 % R.H. |
| Sampling Pump Flow Rate | 0.8 to 2.5 L/min (Adjustable, Accuracy: ±1.5 %) |
| Formaldehyde Background Concentration | ≤ 0.006 mg/m³ |
| Relative Positive Pressure | 10 ± 5 Pa |
| Inner Material | SUS304 Stainless Steel (Rounded Corners) |
| Outer Material | Painted Finish |
| Insulation Thickness | 100 mm |
| Operating Power | 1.5 kW |
| Humidification Water | Distilled Water |
| Operating Environment Temperature | 15 to 40 ℃ |
| Operating Environment Humidity | ≤ 90 % R.H. |
| Power Consumption | 3 kW |
| Power Supply | AC 220 V, 16 A, 50 Hz |
| Dimension ( W × D × H ) | 960 × 1500 × 1460 mm |
Formaldehyde Climate Chamber NFCC-100 used to test and analyze formaldehyde emissions under controlled temperature and humidity conditions. It is widely used in research laboratories, building material testing, furniture manufacturing, and environmental inspection agencies.
