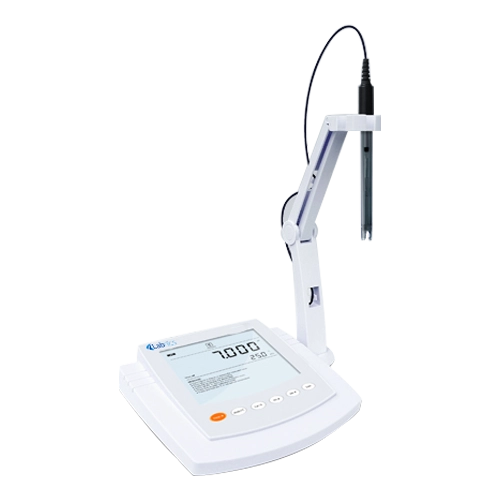

Benchtop Multi-Parameter Meter NBMM-101

Benchtop Multi-Parameter Meter NBMM-101 offers a wide pH measurement range from -2.000 to 20.000 for diverse testing needs. It features a real-time clock that complies with GLP standards for reliable time tracking. This meter provides self-calibration along with built-in reminders for timely adjustments. It provides automatic temperature compensation, ensuring accurate readings. Our unit includes a large backlit LCD for clear and easy viewing of data.

---

Get Quote Catalog

Specifications

Test parameters	pH, conductivity, temperature, salinity, TDS, and dissolved oxygen
pH Range	-2.000 to 20.000 pH
pH Accuracy	±0.002pH
pH Resolution	0.1, 0.01, 0.001pH, Selectable
pH Calibration Points	1 to 5 points
pH Calibration Solutions	USA, NIST, DIN or User-defined
Temperature Compensation	0 to 100°C, 32 to 212°F
mV Range	(-1999.9 to 1999.9) mV
mV Accuracy	±0.2mV
mV Resolution	0.1, 1mV, Selectable
mV Calibration Points	1 point (Only for Relative mV mode)
mV Measurement Modes	Relative or absolute mV
Conductivity Range	0.01 to 20.00mS/cm
Conductivity Accuracy	±0.5% F. S
Conductivity Resolution	0.001,0.01,1, Automatic
Conductivity Calibration Points	1 to 5 points
Temperature Coefficient	Linear(0.0to10.0%/°C) or pure water compensation
Cell Constant	K=0.1,1,10 or custom
Reference Temperature	20°C or 25°C
DO Range	0.00to20.00mg/L
DO Accuracy	±0.2mg/L
DO Resolution	0.01, 0.1mg/L, selectable
% Saturation of Oxygen	0.0 to 200.0%
% Saturation Accuracy	±2.0%
% Saturation Resolution	0.1, 1%, selectable
Calibration Points	1 or 2 points
Pressure Correction	60.0 to 112.5kPa, 450 to 850mmHg, manual
Salinity Correction	0to50g/L, manual
Temperature Range	0 to105°C, 32to221°F
Temperature Accuracy	±0.5°C, ±0.9°F
Temperature Resolution	0.1°C, 0.1°F
Offset Calibration	1 point
Calibration Range	Measured value ±10°C
Power Supply	DC5V, using AC adapter, 220V/50Hz
Dimensions	430 × 310 × 100 mm
Weight	5 kg

Features

• Automatic electrode diagnosis
• Supports storage of 500 readings
• Auto Reset and hold function
• Selectable pH buffer standard
• USB interface for data transfer
• Electrode slope auto display

Applications

• Benchtop Multi-Parameter Meter is used for the measurement of various parameters such as pH, conductivity, and temperature. It is commonly used in laboratories for research, quality control, and environmental analysis.

Standard Accessories

pH electrode

---

Temperature probe

---

pH buffer solutions (pH 4.0/7.00/10.01)

---

DC9V power adapter
