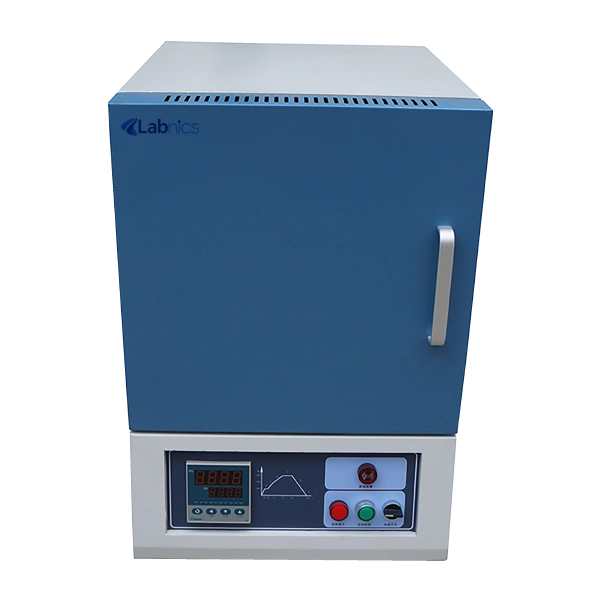

Muffle Furnace NMF-202
Muffle Furnace NMF-202
Muffle Furnace NMF-202 is self-contained, bench-top, front-loading oven-type equipment which makes use of ultra-high temperatures above 1000°C for heating of the samples into ash-like substance. It is composed of ceramic fibre that withstands up to 1200°C temperature. It is designed with Type N thermocouple that provides accurate and optimum insulation properties. This allows complete maintenance of heat inside the chamber. The automatic switching off power feature ensures safety of the furnace as well as the user.
Specifications
| Capacity | 3.3 L |
| Chamber size (W x H × D) | 150 × 150 × 150 mm |
| External dimension (W x H × D) | 600 × 620 × 810 mm |
| Chamber material | Alumina ceramic fibre |
| Working Temperature | 1100 °C |
| Maximum Temperature | 1200 °C |
| Temperature resolution | ± 1 °C |
| Temperature uniformity | ± 5 °C at 1000 °C |
| Heating rate | ≤ 25℃/min |
| Heating elements | Resistance wire |
| Rated power | 2.5 KW |
| Display | LCD |
| Power Supply | AC 220/110 V ; 50/60 Hz |
| Net weight | 70 kg |
Features
- ✔ Long working hours at high temperature
- ✔ PID auto control
- ✔ Built-in protection for overheating
- ✔ Can be equipped RS-232 interface and USB port
Applications
They are widely used for scientific experiments in physics laboratories, water analysis with respect to measurement of total solids/total suspended solids. Rice laboratories, steel and paint industries, biotech companies and small industrial production etc.
