Bottle Top Dispenser NBTD-201

Name: Bottle Top Dispenser NBTD-201
Brand: Labnics
SKU: NBTD-201
Rating: 4.9 (945 reviews)

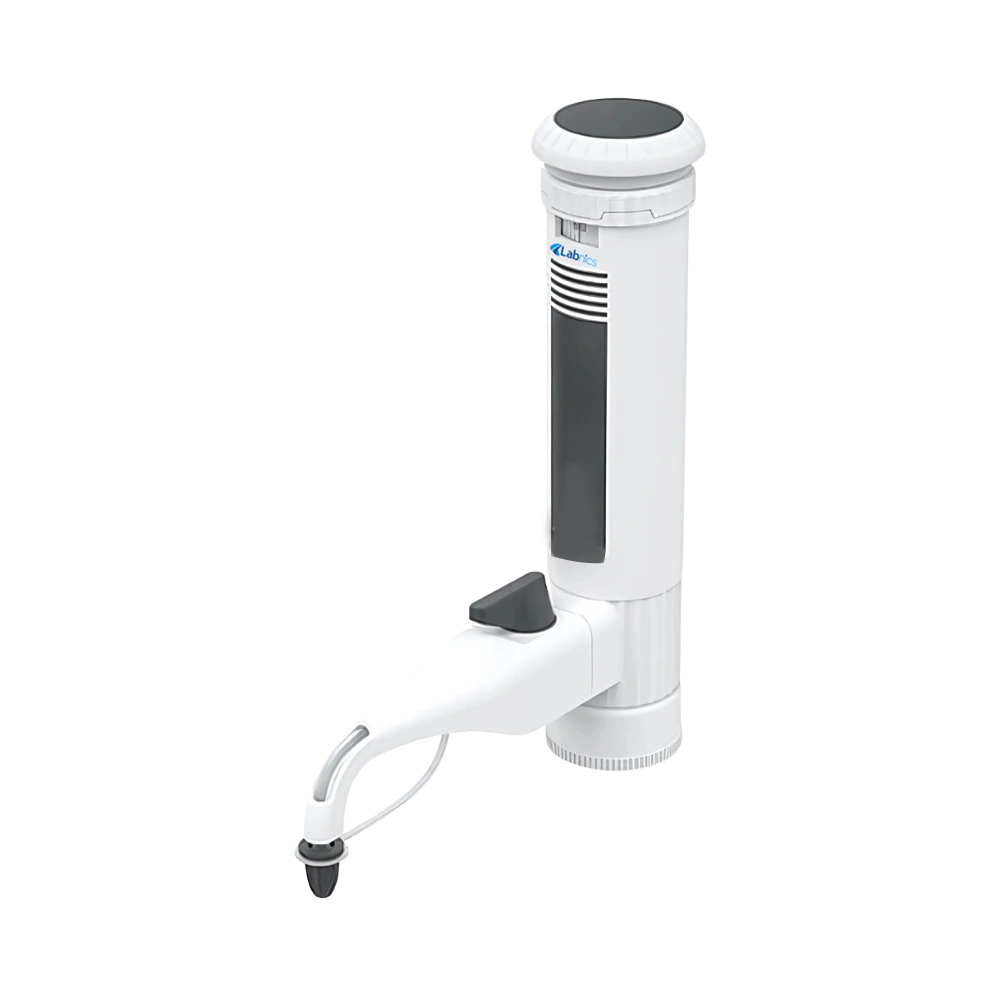

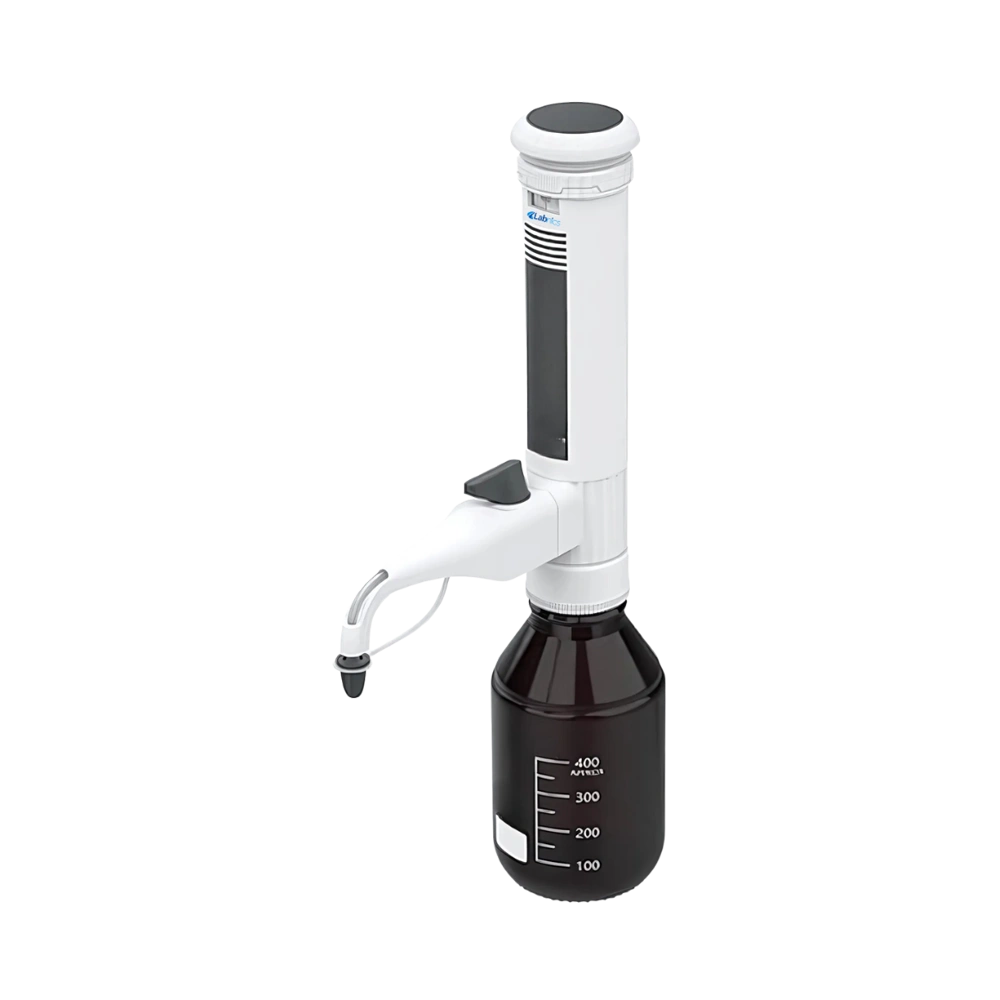

Labnics Bottle Top Dispenser NBTD-201 mounts on bottle necks via screw adapters, dispensing 2 to 10 ml at 0.2 ml increments with volume set through the adjustable knob and digital readout. The suction mechanism draws liquid on each stroke, while the reflux valve redirects residual reagent back into the piston chamber to cut waste. The floating piston holds system error within ±0.5-5% and random error within ±0.1-1%, and the drain pipe safety cap keeps the outlet sealed between uses to prevent drip and cross-contamination, and it includes an inlet pipe and assembly tool for setup.

$1,025.00

Data Sheet

Specifications

Dispensing Range	2 to 10 ml
Increment Volume	0.2 ml
Calibration Volume at 2 ml	System Error: ±5 % System Error: ±100 μl Random Error: ±1 %
Calibration Volume at 5 ml	System Error: ±1 % System Error: ±50 μl Random Error: ±0.2 %
Calibration Volume at 10 ml	System Error: ±0.5 % System Error: ±50 μl Random Error: ±0.1 %

Features

High-Precision Dispensing — Accurate volume delivery

Low Maintenance — Simplifies routine upkeep

Drain Pipe Safety Cap — Prevents reagent leakage

Ergonomic Design — Comfortable and easy handling

Micron-Level Floating Piston — Smooth dispensing accuracy

Applications

Chemical Laboratories	Pharmaceutical Industries	Research Laboratories	Clinical Laboratories
Precisely dispenses chemicals with a micron-level floating piston and integrated reflux valve	Delivers safe pharmaceutical reagent dispensing with a drain pipe safety cap and ergonomic design	Accurately handles a wide range of liquids with an adjustable volume knob and clear digital readouts	Ensures precise clinical liquid dispensing with a high-precision suction mechanism & minimal waste

Standard Accessories

Screw adapters × 1 pc

Liquid inlet pipe × 1 pc

Tool × 1 pc
