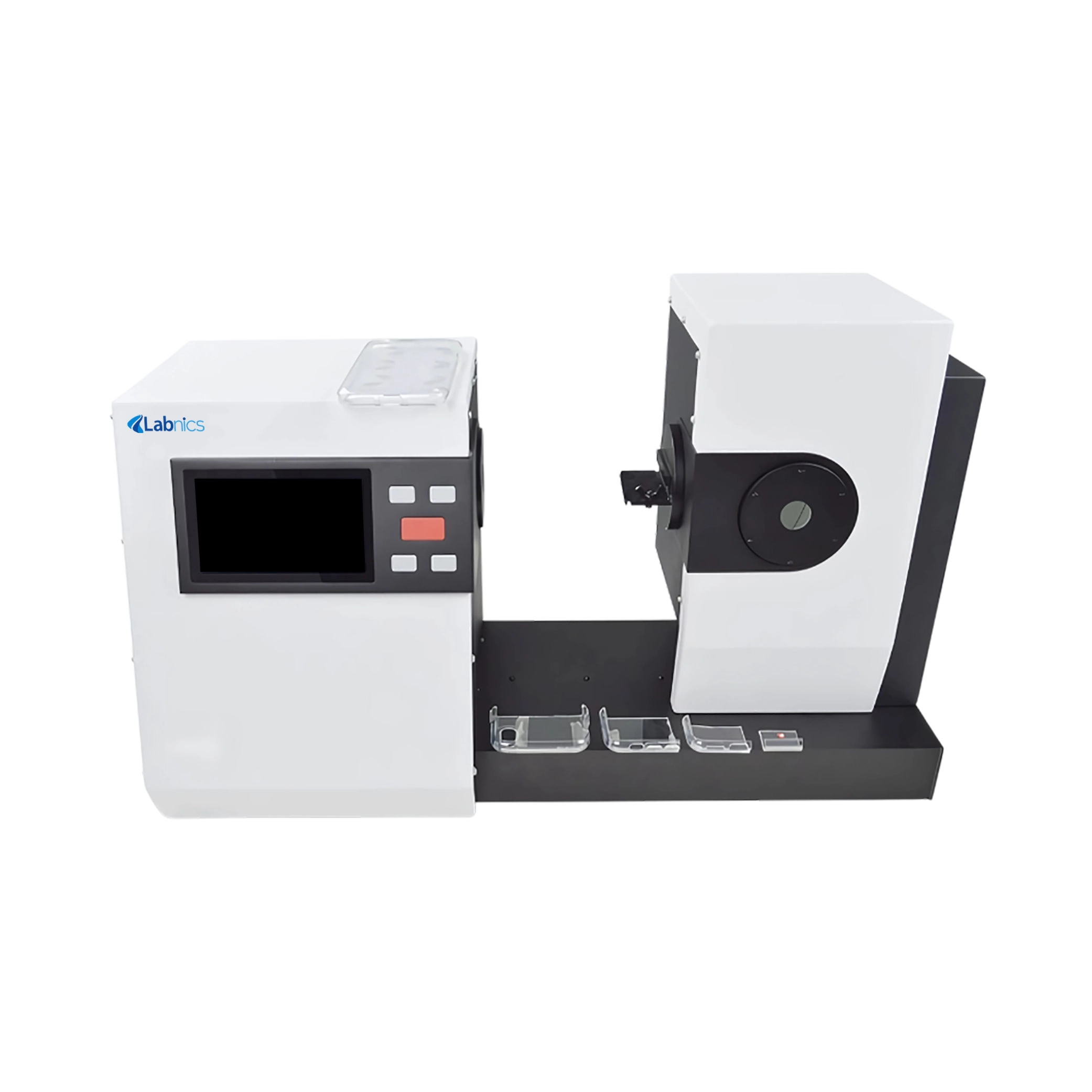

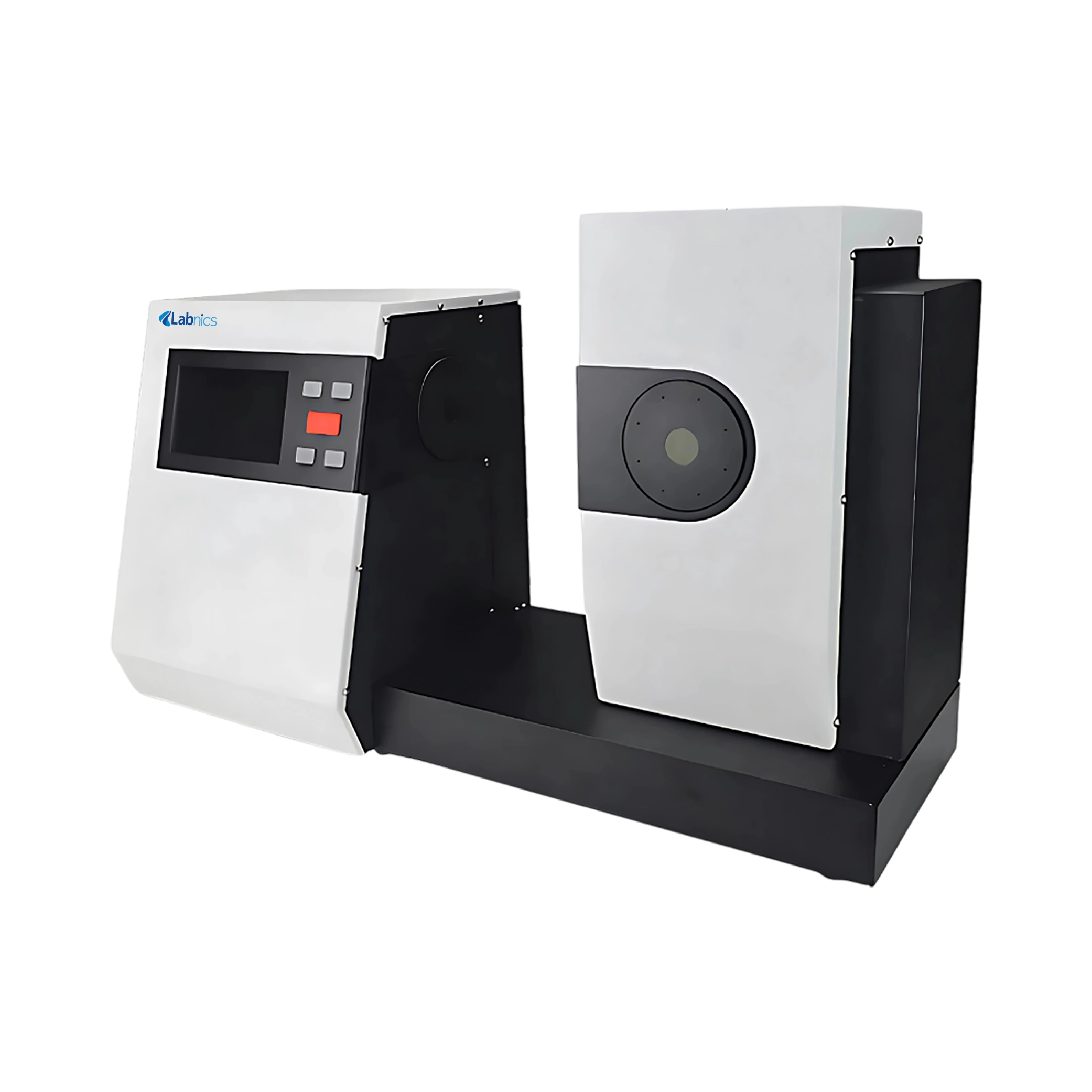

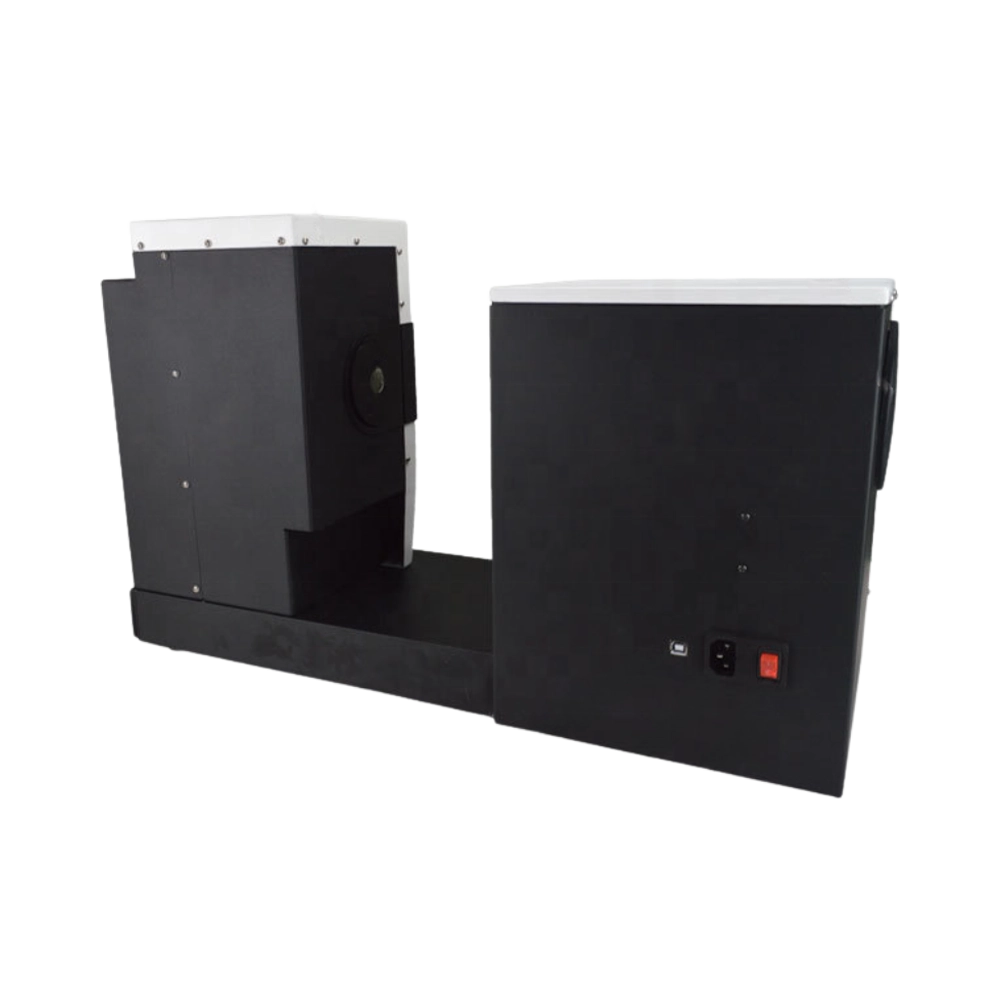

Haze Meter NHM-100
Haze meter NHM-100 is used for haze and transmittance measurement. It has open measurement area with no limit on sample size, can carry out vertical measurements as well. It comes with different light sources such as A, C, D65 etc. for haze, transmittance measurement. Design is confirmed to ASTM & ISO standards, where transmittance compensation measurement provides highly accurate test result.
| Light source | CIE-A, CIE-C, CIE-D65 |
| Standards | ASTM D1003/D1044 & ISO13468/ISO14782 |
| Parameters | HAZE, Transmittance(T) |
| Spectral response | CIE Luminosity function y |
| Wavelength | 400 to 700 nm |
| Wavelength interval | 10 nm |
| Geometry | 0/d |
| Measurement area/sample port | 16.5 mm/ 21 mm |
| Measurement range | 0 to 100 % |
| Haze resolution | 0.01 |
| Haze responsibility | ≤ 0.1 |
| Sample size | Thickness ≤ 150 mm |
| Display | 5.0 inch TFT touch LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220 V with power cable |
| Working temperature | 10 to 40°C |
| Storage temperature | 0 to 50°C |
| Dimension (L*W*H) | 598 × 247 × 366 mm |
Haze meter has applications in haze and transmittance measurement of anti-glare plastic sheets, films, glass, LCD panel screens used for TV screen, car navigation screen, computer screen, mobile phone cover & other transparent & semi-transparent material color.
