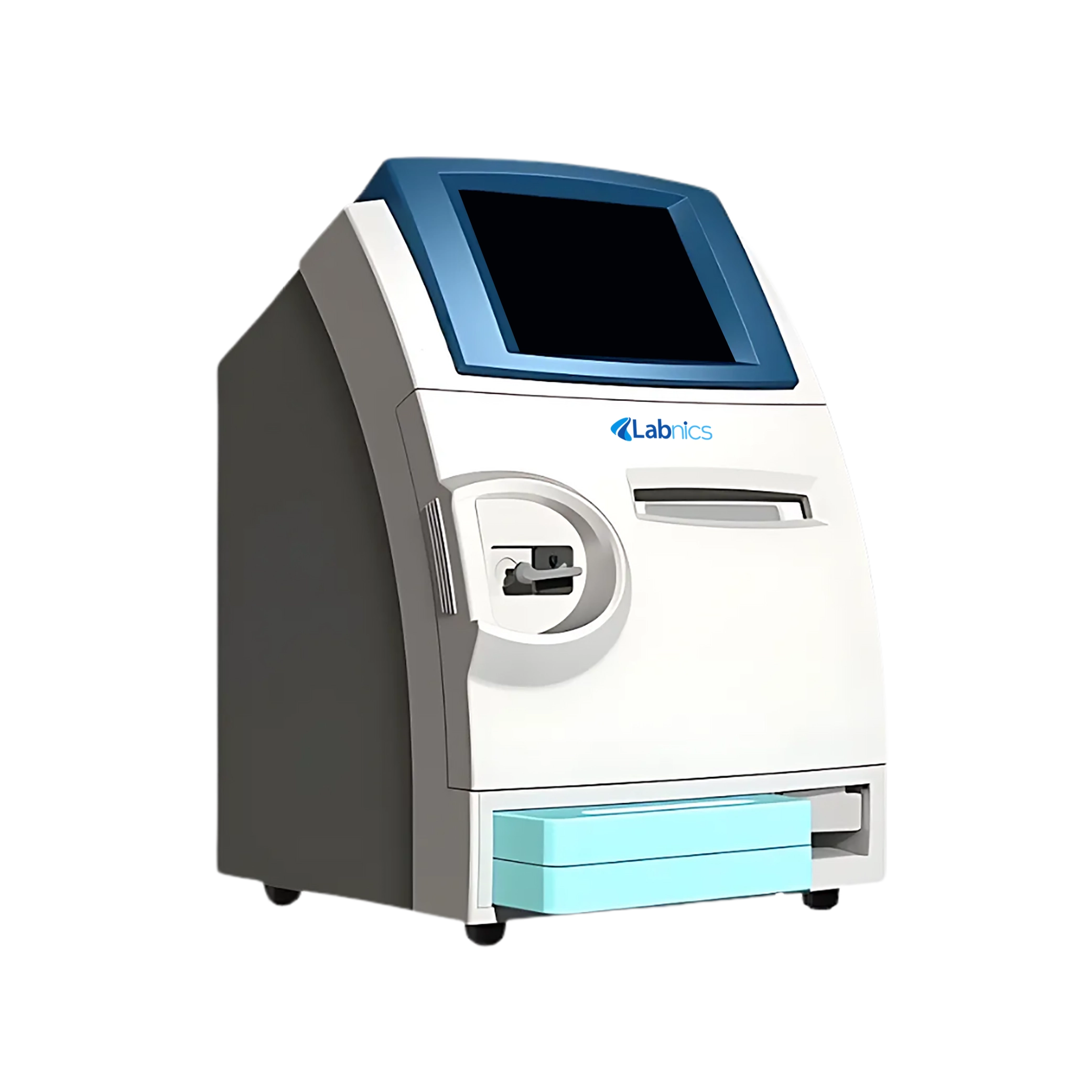

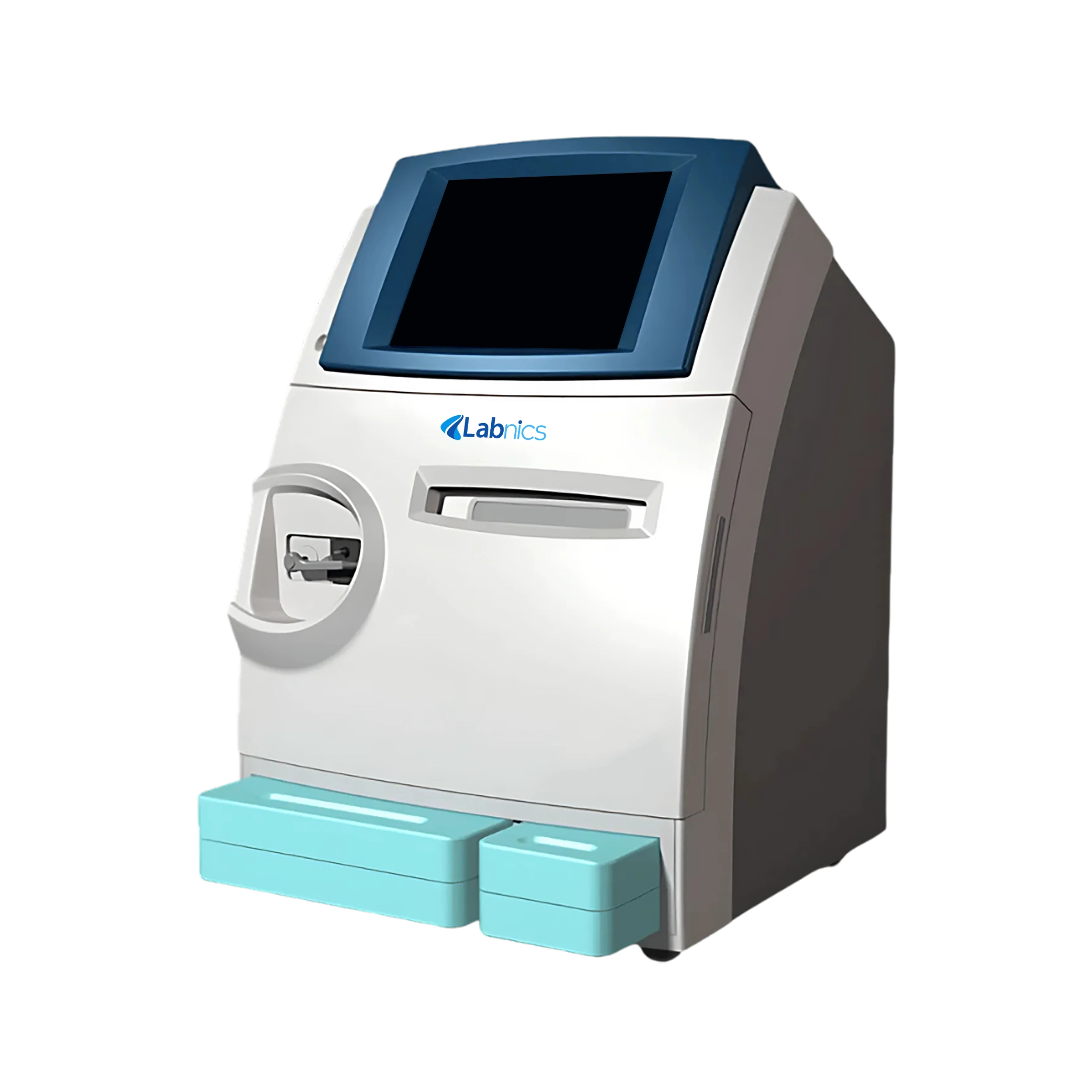

Blood Gas Analyzer NBGA-100

Blood gas analyzer NBGA-100

Blood Gas Analyzer NBGA-100

Blood gas analyzer NBGA-100 analyses various sample types, including whole blood, serum, plasma, and more. Operating with swiftness, it delivers results in under 90 seconds. Sample volumes needed are 120μl for whole blood and 50μl for capillary blood. Our analyzer boasts a storage capacity of over 5000 results and is equipped with a user-friendly large touchscreen display for effortless operation

Specifications

Sample Whole blood, Serum, Plasma, Dialysate, CSF
Sample Volume 120 µl whole blood , 50 µl capillary blood
Analysis Time < 90s
Test Parameter pO2, pCO2, pH, K, HCT.B.P, Na+ , Cl- , Ca++
Operating Temperature 15 to 30°C
Storage Environment 5 to 45°C
Input Variable Patient temperature, Hemoglobin, FiO2 , Barometric Pressure
Measured Factor Hydrogen ion activity (pH): 6.000 to 9.000 pH
Partial pressure (pCO2): 1.607 to 26.67 Kpa, 8.0 to 200.0 mmHg
(PO2): 0 to 106.7 kPa,0 to 800.0 mmHg
Potassium ion (K): 0.5 to 15.0 mmol/L
Sodium ion (Na+): 20.0 to 200.0 mmol/L
Chloride ion (Cl-): 20.0 to 200.0 mmol/L
Ionized calcium (Ca++) : 0.3 to 5.0 mmol/L
Hct: 12.0 to 65.0%
B.P. : 500 to 800 mmol/L
Derived Factors pH (CH)pCO2 , pO2 , K , Na+ , Cl- , Ca++ , Hct , B.P
Calibration Automatic, programmable 1-point and 2-point calibration
Data Storage >5000 result
Display 10.4 inches TFT touch screen
Printer Built-in thermal printer
Bar Code Reader Multiple types barcode type
Interface Serial line RS-232, TCP/IP interface, USB port, Integrated Bar-Code Reader
Battery 24 Nickel-metal hydride battery, 3.0 Ah
Power Supply 100 to 240 V, 50/60 Hz
Reagent Dimension (W × D × H ) 586 × 460 × 380 mm
Packaging Dimension (W × D × H ) 920 × 650 × 610 mm
Gross Weight ( Reagent ) 9.7 kg
Gross Weight (Main Instrument ) 52.8 kg

Features

Applications

Blood gas analyzers are utilized across diverse sectors, from healthcare and biotechnology to environmental monitoring.
