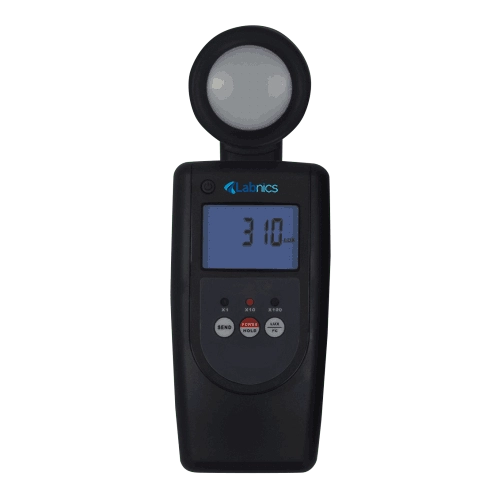

Lux Meter NLXM-201

Lux Meter NLXM-201 is a handheld unit designed for measurement of luminosity and brightness in Lux. Equipped with probe inbuilt in unit and separate light sensor for optimum position readings. Measurement ranges into 3 grades X1, X10 and X100 with LCD display assures accurate reading without any manual error. It also shows resolution and range in foot candle (FC) unit. It is used for laboratories as well as on-field measurement of light and luminosity.

---

Get Quote Catalog

Specifications

X1 Grade range 1	0 to 199 Lux
X1 Grade resolution 1	0.1Lux
X1 Grade range 2	200 to 1,999 Lux
X1 Grade resolution 2	1 Lux
X10 Grade range	2,000 to 19,999 Lux
X10 Grade resolution	10 Lux
X100 Grade range	20,000 to 50,000 Lux
X100 Grade resolution	100 Lux
Foot candle range	0 to 5,000 FC
Foot candle resolution	1 FC
Accuracy	± (5%n + 5d)
Temperature	0 to 50°C (32 to 122°F)
Humidity	˂ 80 % RH
Main unit	140 × 72 × 34 mm
Sensor	50 mm
Power Supply	4 × 1.5 V AAA (UM-4)Battery
Weight	200 g

Features

• Wide measuring range and high resolution
• Low battery indicator
• Maximum value hold function
• Digital display gives exact reading with no guessing
• Use of durable, long lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years
• Separate light sensor for optimum positions readings
• Feature with RS-232 data output to connect with PC
• Provide Bluetooth data output choice

Applications

• Lux Meter is widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.

Standard Accessories

• Accessories no.	Name	unit
  1	Carrying case	1
