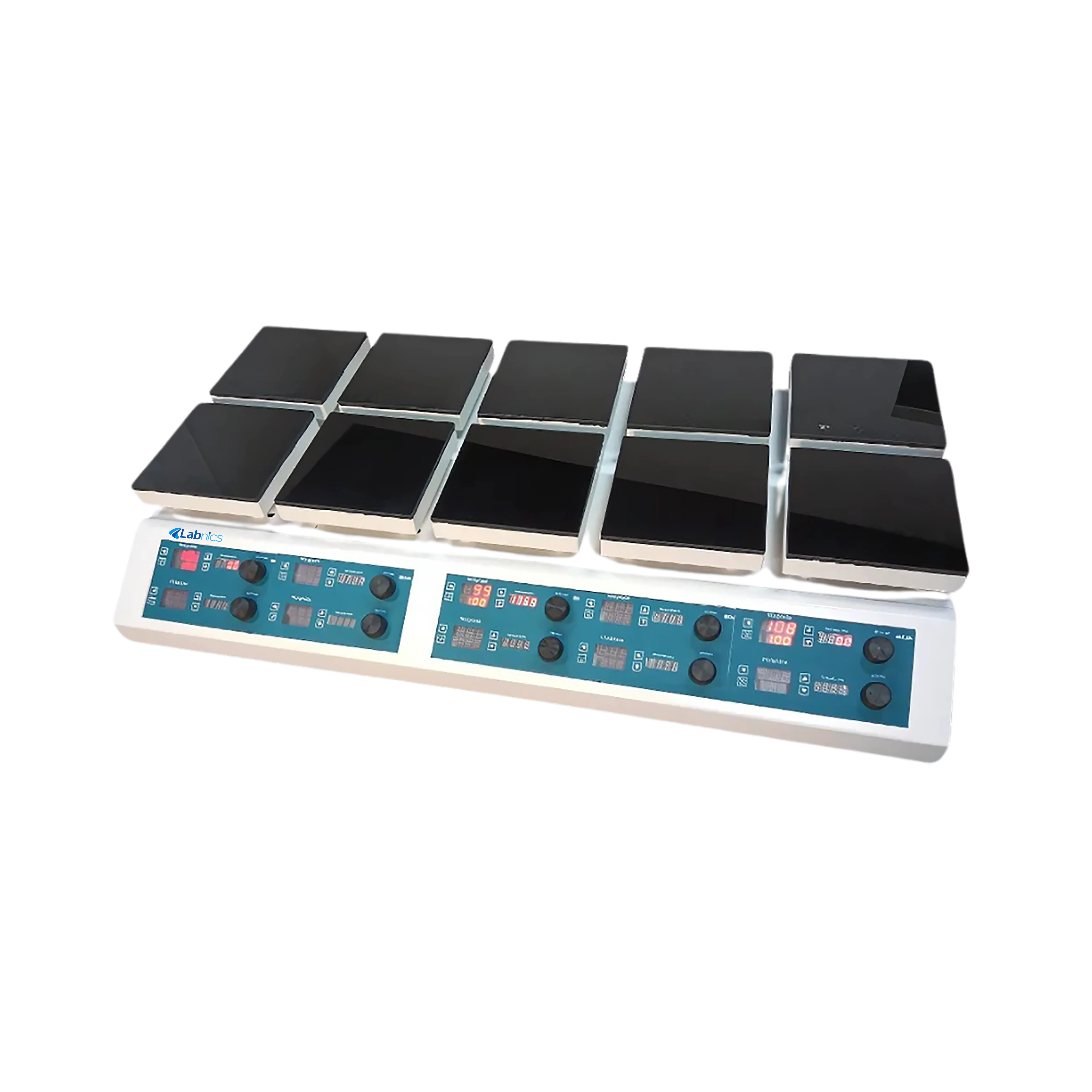

Multi-Position Hotplate Magnetic Stirrer NMHS-802

Multi-Position Hotplate Magnetic Stirrer NMHS-802

Multi-Position Hotplate Magnetic Stirrer NMHS-802 is designed for up to 3 L × 10 of stirring capacity and performs reliably at temperatures from 5°C to 40°C. It has a low-noise DC motor for quiet and stable stirring. This unit includes an over-temperature alarm for added safety. It features an LED display for clear temperature settings. Our hotplate magnetic stirrer offers dual temperature probe switching for flexible monitoring.


$4,150.00

Catalog

Specifications

No. of positions 10
Stirring capacity 3 L × 10
Maximum capacity 30 L
Stirring speed range 0 to 2500 RPM
Temperature range Ambient to 480°C
Temperature sensor Platinum RTD (Resistance Temperature Detector)
Operating temperature 5°C to 40°C
Operating humidity <90%
Working Area Size 150 × 150 mm × 10
Plate material Seamless microcrystalline ceramic
Stirring spacing 170 mm
Maximum stirring length ≤2 0mm
Maximum torque 2500 F
Frequency 50/60 Hz
Motor input power 9W
Motor output power 7W
Power consumption 2500 W
Power supply 220 V / 110 V
Overall Dimensions 830 × 430 × 130 mm
Packing dimension 900 × 520 × 220 mm
Weight 27 Kg
Gross weight 32 Kg

Features

  • Stepless speed adjustment
  • Temperature timer function
  • Corrosion-resistant ceramic surface
  • Powerful infrared heating
  • Smooth and stable speed control

Applications

  • Multi-Position Hotplate Magnetic Stirrer NMHS-802 is widely used in laboratories and industries for precise heating and stirring in chemical, biological, pharmaceutical, and research applications.

Standard Accessories

Support Stand × 1 pc

Stir Bar × 1 pc

Ask Expert

FAQ for Multi-Position Hotplate Magnetic Stirrer NMHS-802

1: What safety features does the Multi-Position Hotplate Magnetic Stirrer NMHS-802 offer?

It is equipped with an over-temperature alarm and a temperature timer function, which together help ensure safer operation and allow for more precise control during experimental processes.

2: How does the Multi-Position Hotplate Magnetic Stirrer ensure stable and quiet stirring?

Powered by a DC motor, it provides smooth, low-noise operation across a wide range of speeds, featuring a digital display and stepless speed adjustment for precise control.

3: What types of containers can be used on the Multi-Position Hotplate Magnetic Stirrer NMHS-802?

The Multi-Position Hotplate Magnetic Stirrer is compatible with various vessel types, including plastic, glass, ceramic, and metal containers, enhancing its versatility for a wide range of laboratory applications.

4: What should I check if the Multi-Position Hotplate Magnetic Stirrer shows uneven heating?

Ensure the vessel is properly centered on the plate and that the surface is clean. Also, verify that the correct temperature probe is selected to ensure accurate readings.

5: Can I control and monitor temperature accurately on the Multi-Position Hotplate Magnetic Stirrer?

Yes, it features an LED display for setting the temperature and allows seamless switching between built-in and external probes to ensure accurate temperature monitoring.

6: How safe is it to use the Multi-Position Hotplate Magnetic Stirrer?

Safety is a top priority with these stirrers. It comes equipped with advanced safety mechanisms that protect users during operation, preventing overheating and ensuring stable performance. The magnetic stirring method also minimizes contamination, making it a safe choice for sensitive samples.

7: Can the Multi-Position Hotplate Magnetic Stirrer be used for both heating and stirring at the same time?

Yes, the stirrer offers the ability to heat and stir simultaneously, making it ideal for processes that require both mixing and temperature control. The digital interface allows you to easily set both temperature and stirring speed, and the unit maintains consistent performance. This dual function enhances efficiency, allowing for more complex experiments to be carried out in less time.

8: How can I determine if the Multi-Position Hotplate Magnetic Stirrer is functioning properly?

It includes several indicators that help you monitor its performance. The digital interface displays both stirring speed and temperature settings, allowing you to confirm that the unit is operating as expected. Additionally, any irregularities such as temperature inconsistencies or failure to stir properly are usually indicated through the system's built-in safety alerts or visual cues.

9: How easy is it to clean and maintain?

The stirrer is designed with easy maintenance in mind. The smooth, flat surface makes it simple to wipe down after use, and the magnetic stirring method means there is no need for complex cleaning of mechanical parts. Regular checks and basic care ensure long-lasting performance, and the durable materials resist wear and tear, reducing the need for frequent repairs.


Multi-Position Hotplate Magnetic Stirrer NMHS-802

Multi-Position Hotplate Magnetic Stirrer NMHS-802

Related Models Of Multi-Position Hotplate Magnetic Stirrer

Labnics Multi-Position Hotplate Magnetic Stirrers feature multiple stirring positions for efficient simultaneous sample mixing. They offer variable stirring speeds for precise mixing control. These units include an intuitive digital interface displaying temperature and stirring speed settings. They use a magnetic field to provide effective agitation while minimizing contamination. Our stirrers come equipped with advanced safety mechanisms for enhanced user protection.
