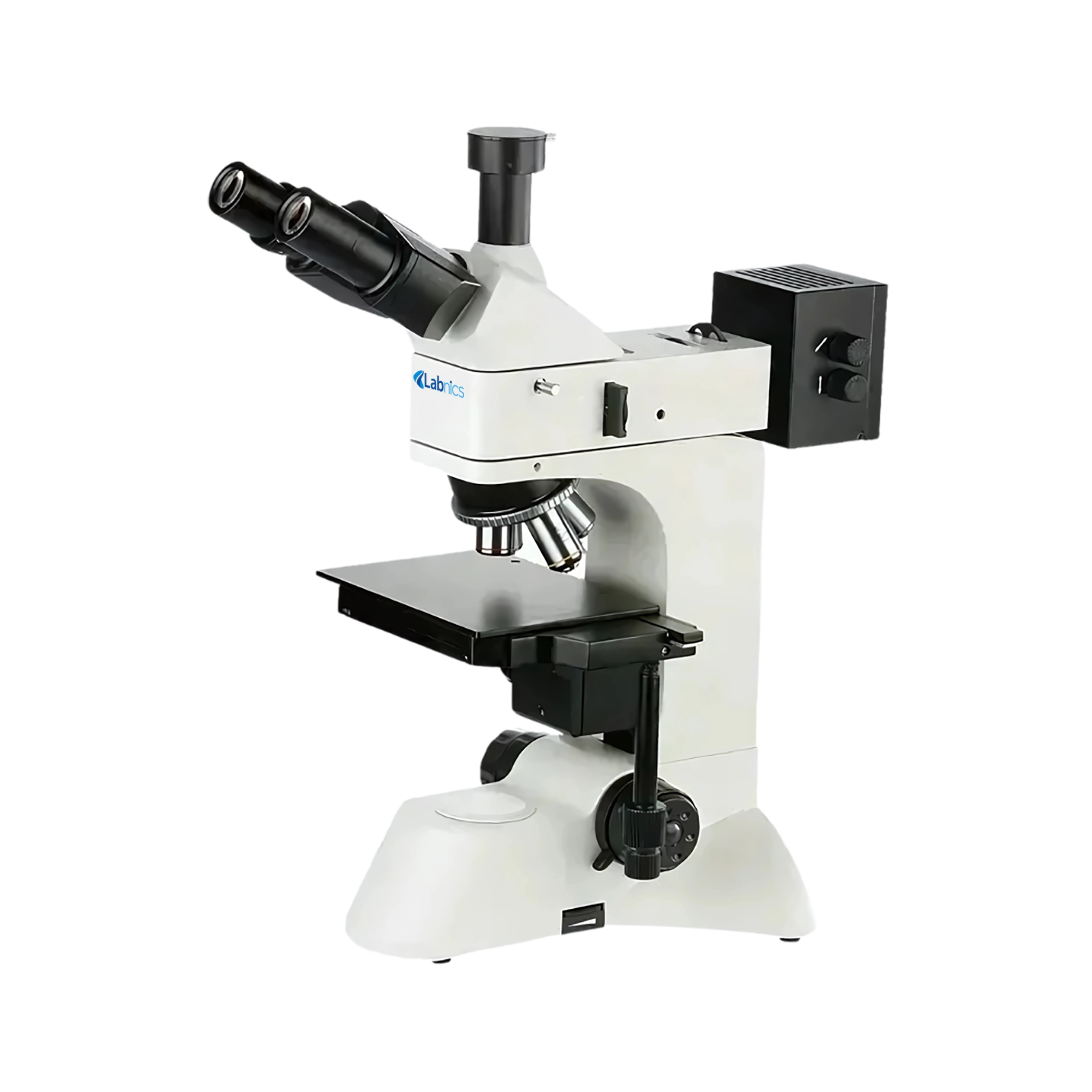

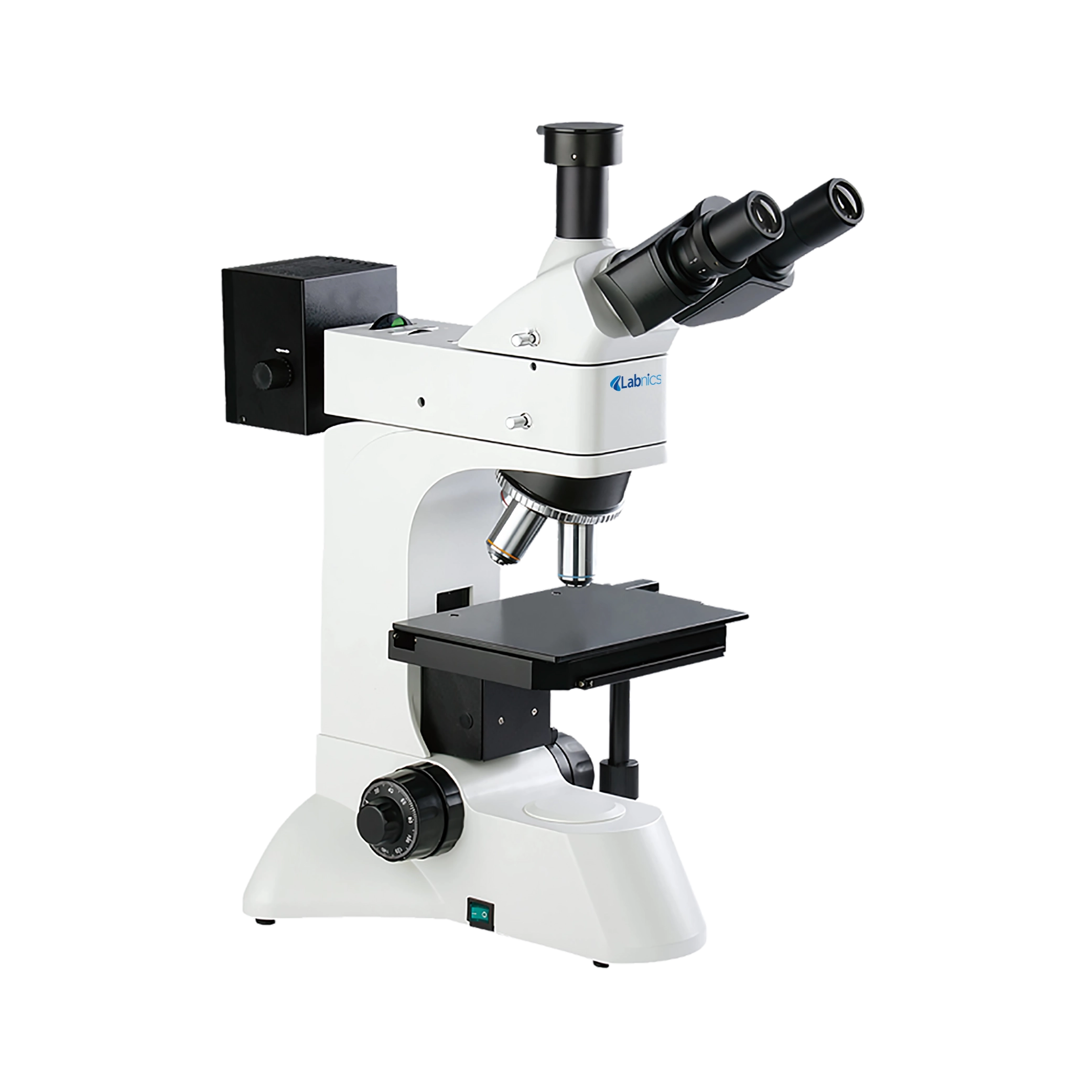

Metallurgy Microscope NMM-105 is designed with 10× wide field plan eyepieces and a field of view number of Φ22 mm. It has a photography unit compatible with various adapters for digital imaging. This unit includes a double-layer mechanical stage for precise sample positioning. It features a halogen lamp with adjustable brightness for optimal illumination. Our microscope provides clear observation of both solid and transparent samples.
$2,875.00
Specifications
| Eyepiece | 10× wide field plan |
| Field of view number | Φ22 mm |
| Eyepiece interface | Φ30 mm |
| Infinity Plan Achromatic Objectives | PL 5×/0.12 : working distance: 26.1 mm PL 10×/0.25 : working distance: 20.2 mm PL 40×/0.60 : working distance: 3.98 mm PL 60×/0.70 : working distance: 2.03 mm |
| Eyepiece Tube | Trinocular inclined 30°, pupil separation 53 to 75 mm |
| Focusing System | Coaxial coarse/fine focus system with tension adjustable device, minimum division of fine focusing 2.0 μm |
| Filters | Ground glass and yellow, green, and blue filters |
| Aperture/Polarizer | Integrated field diaphragm, aperture diaphragm, and puller-type polarizer |
| Illumination System | 12V 30W halogen |
| Moving range | 63 × 50 mm |
| Dimension | 210 × 140 mm |
Features
Applications
Ask Expert
FAQ for Metallurgy Microscope NMM-105
1: What types of objects can be observed with this metallurgical microscope?
This microscope is designed for observing both opaque and transparent objects, making it ideal for a range of applications including biology, metallography, mineralogy, precision engineering, and electronics.
2: Can this metallurgy microscope be connected to a camera for photography?
Yes, it can be equipped with accessories such as a CCD adapter, a digital camera adapter, and a single reverse digital camera adapter for high-clear observation using a camera or vidicon.
3: What is the illumination system of the Metallurgy Microscope NMM-105?
The transmitted illumination system features a collector for halogen lamp illumination and an integrated field diaphragm for clear and bright images. The system is adjustable to meet various observation needs.
4: Can the microscope be used in polarized light observation?
Yes, the microscope is equipped with an integrated polarizing system, including a push-pull type analyzer and polarizer, for polarized light observation.
5: How can I maintain the Metallurgy Microscope NMM-105 for longevity?
To extend the life of your microscope, ensure regular cleaning of lenses and components, store it in a dry and dust-free environment, and avoid overloading the stage.
