| Door opening method |
Double door |
| Capacity |
268 liters ×2 |
| Internal usable height |
327mm (layer 1 to 2)
365mm (layer 2 to top) |
| Maximum loading capacity |
2000ml×24
1000ml×36
500ml×64
250ml×100
100ml×196
50ml×224 |
| No. of trays |
4 |
| Temperature range |
4 to 60°C (Ambient temperature-15°C, minimum 4°C ) |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Temperature editing |
5 groups/30 segments of curve editing |
| Rotation way |
Rotary switchable |
| Rotation speed |
30 to 300 rpm |
| Rotation accuracy |
±1 rpm |
| Throw |
25 mm |
| Timing range |
0 to 9999H/0 to 9999min |
| Display |
7-inch color touch screen |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Decontamination method |
UV sterilization |
| Illumination lamp/ UV lamp |
8W×2 |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
600W×2 |
| Cooling power |
195W×2 |
| Motor power |
150W×2 |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
498×490mm |
| Internal dimension |
607×506×875mm |
| External dimension |
1350×700×1568mmz |
| Net weight |
410 kg |

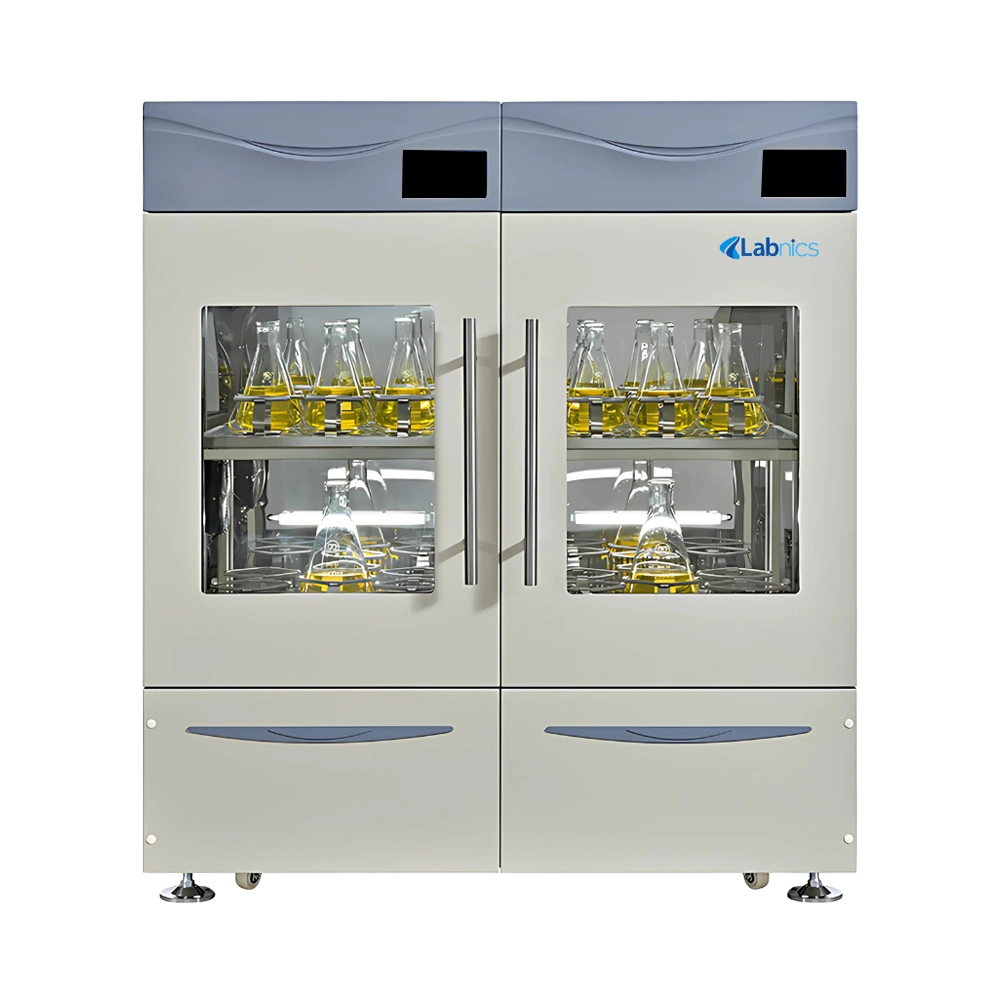

FAQ for Vertical Shaker Incubator NVSI-204
1: How does the Vertical Shaker Incubator NVSI-204 ensure smooth operation over time?
Our Vertical Shaker Incubator uses imported double-row bearings and a ductile iron movement mechanism to provide strength and stability. These high-quality components minimize friction, reduce wear, and guarantee consistent performance over long-term usage.
2: Is the Vertical Shaker Incubator NVSI-204 energy efficient?
Our Vertical Shaker Incubator is equipped with a variable frequency compressor that optimizes cooling performance while reducing power consumption. This feature helps maintain stable temperature conditions with lower energy usage, making it both efficient and cost-effective.
3: How easy is it to monitor samples during operation?
The Vertical Shaker Incubator comes with hollow double-layer tempered glass doors that provide excellent insulation along with clear visibility. This design allows safe observation of cultures without opening the chamber, maintaining stable internal conditions.
4: How often should the Vertical Shaker Incubator NVSI-204 be cleaned?
It is recommended to clean the incubator regularly to maintain hygiene and prevent contamination. A gentle wipe with a non-corrosive disinfectant is usually sufficient for the stainless steel interior and trays.
5: What is the best way to clean the glass doors?
It is best to use a soft cloth with a mild cleaning solution to wipe the hollow double-layer tempered glass doors. This ensures clear visibility and prevents scratches or damage to the glass surface.
6: Can the Vertical Shaker Incubator be programmed for complex experimental protocols?
Yes, the Vertical Shaker Incubator supports multi-segment programming with up to 30 segments and 999 cycles. This allows you to set different temperature, shaking speed, and duration for each segment. The incubator can automatically run these steps in sequence without manual input. This feature enables precise control over complex experimental protocols. It simplifies running multi-phase experiments efficiently.
7: What components ensure stable temperature and shaking performance in the Vertical Shaker Incubator?
Our Vertical Shaker Incubator uses a high-quality compressor to provide consistent and uniform temperature control throughout the chamber. It is equipped with a DC motor that delivers smooth and quiet shaking. These components work together to maintain stable environmental conditions during experiments. This ensures reliable and accurate results.
8: What safety features are included in the Vertical Shaker Incubator?
The Vertical Shaker Incubator features tempered glass doors that provide clear visibility while ensuring safety. Mechanical locks secure the doors to prevent accidental opening during operation. It also includes multi-level user permissions, allowing controlled access to settings. This helps prevent unauthorized changes and protects your experiments.
9: How does the Vertical Shaker Incubator support data monitoring and storage?
It is equipped with a 7-inch touchscreen that displays real-time parameters, records key events, and shows data curves for easy monitoring. It also supports USB storage, allowing the export of up to one million data records for convenient experiment documentation and analysis.
