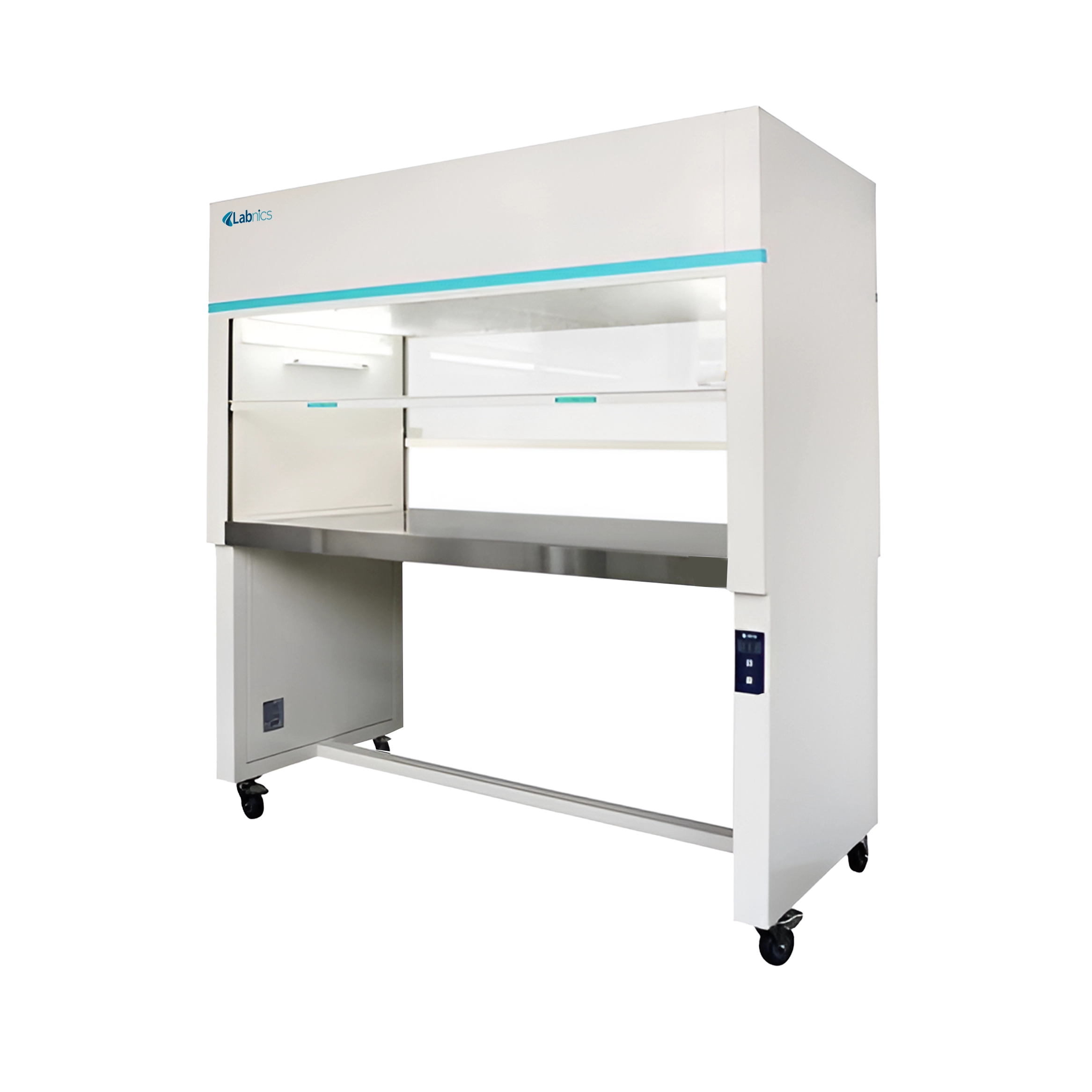

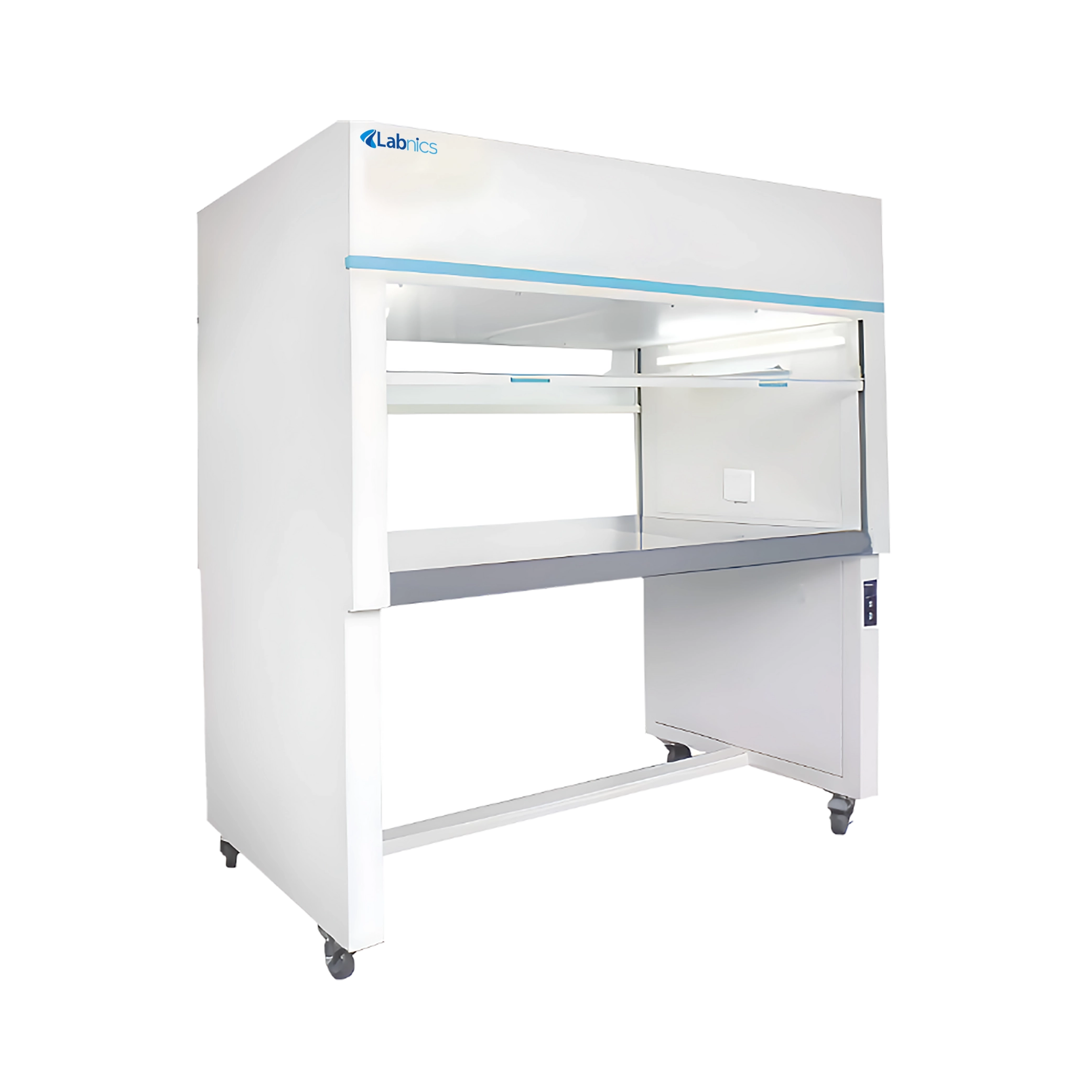

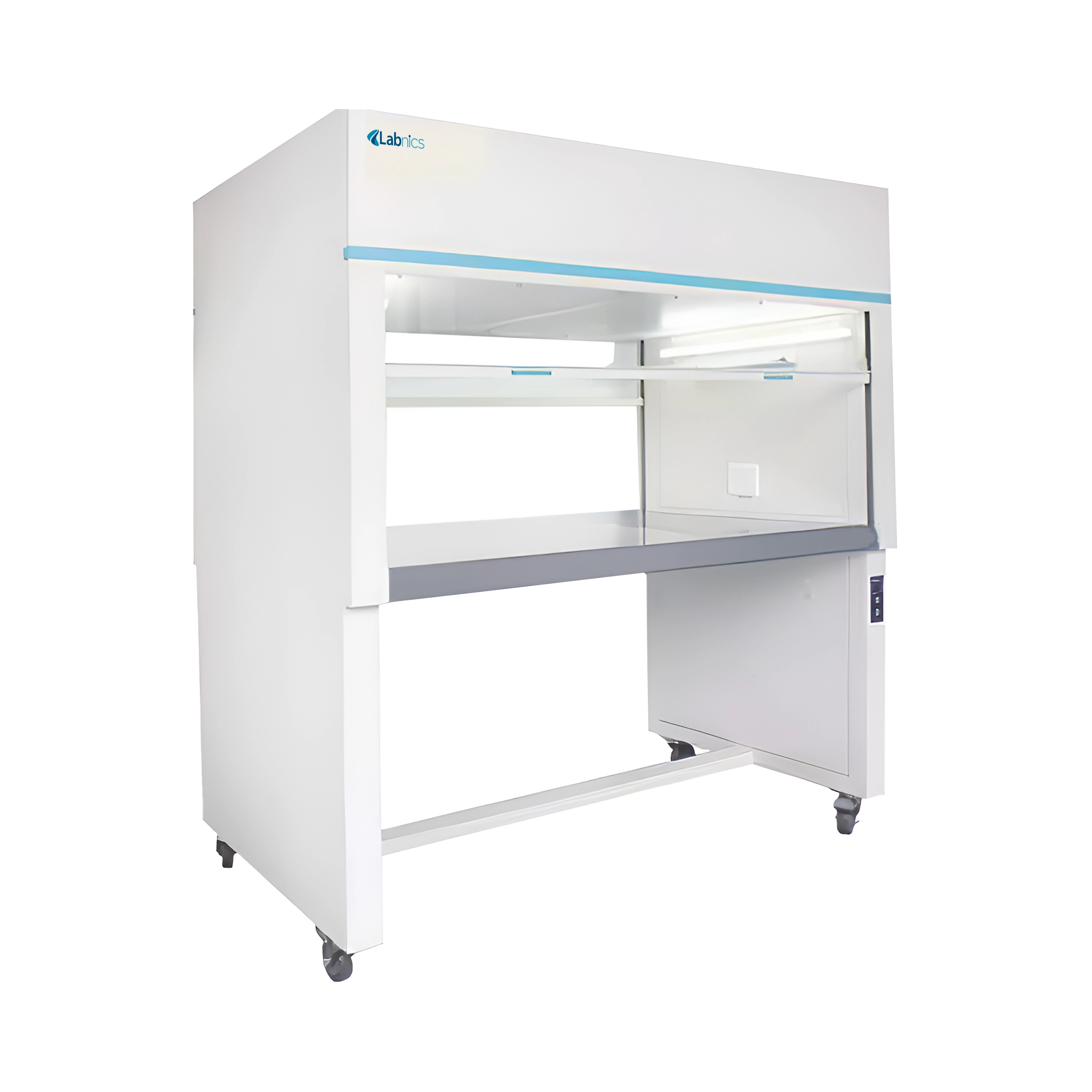

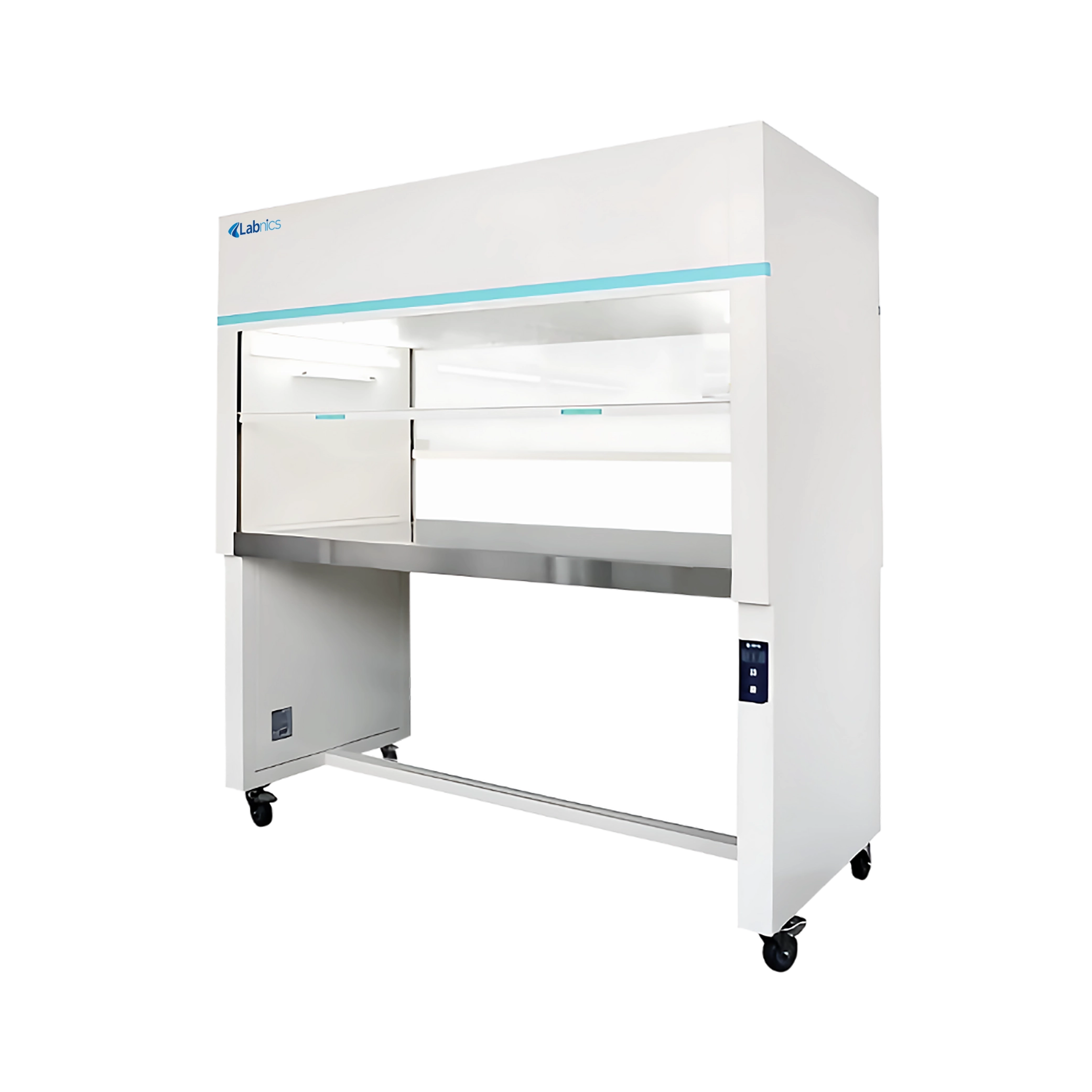

Vertical Laminar Flow Hood NVLH-101

Vertical Laminar Flow Hood NVLH-101 features a double-person, double-side configuration, providing flexibility to adapt to various workspace needs. It offers an adjustable air velocity of ≥0.3m/s for optimal airflow. This unit includes a UV lamp reservation function, allowing users to set the lamp’s on/off times for efficient disinfection. It is built with high-grade cold-rolled steel, finished in ivory white electrostatic powder coating for durability. Our cabinet is mounted on universal casters for easy mobility and convenient relocation.

---

$4,188.00

Buy Now Catalog

Specifications

Overall dimension	1500 × 750 × 1600mm
Working dimension	1360 × 690 × 520mm
Size & no. of HEPA filters	610 × 610× 50 × 2 sets
Mode of operation	Two person double side
Light	7W × 2pcs
UV lamp (optional)	8W × 2pcs
Cleanliness	100 class≥0.5μm
No. of colony	≤0.5cfu/dish × 0.5h
Air velocity	≥0.3m/s (adjustable, three-level）
Noise	≤62dB(A)
Illumination	≥300LX
Vibration half peak value	≤0.5μm (x.y.z direction)
Work table material	Stainless steel
External cabinet material	High-grade steel and lacquered in ivory
Power consumption	500W
Power supply	AC220V/50Hz
Weight	170kg

Features

• Adjustable fan speed levels
• Real-time operational status display
• High filtration efficiency
• Low noise level operation
• Smooth sliding door system
• High cleanliness standard
• Convenient filter access for cleaning

Applications

• Vertical Laminar Flow Hood NVLH-101 is used to provide a sterile and controlled environment by directing HEPA-filtered air downward to protect samples from contamination. It is commonly used in laboratories, particularly in biological research, microbiology, and pharmaceutical industries.
