Vertical Autoclave NVA-201

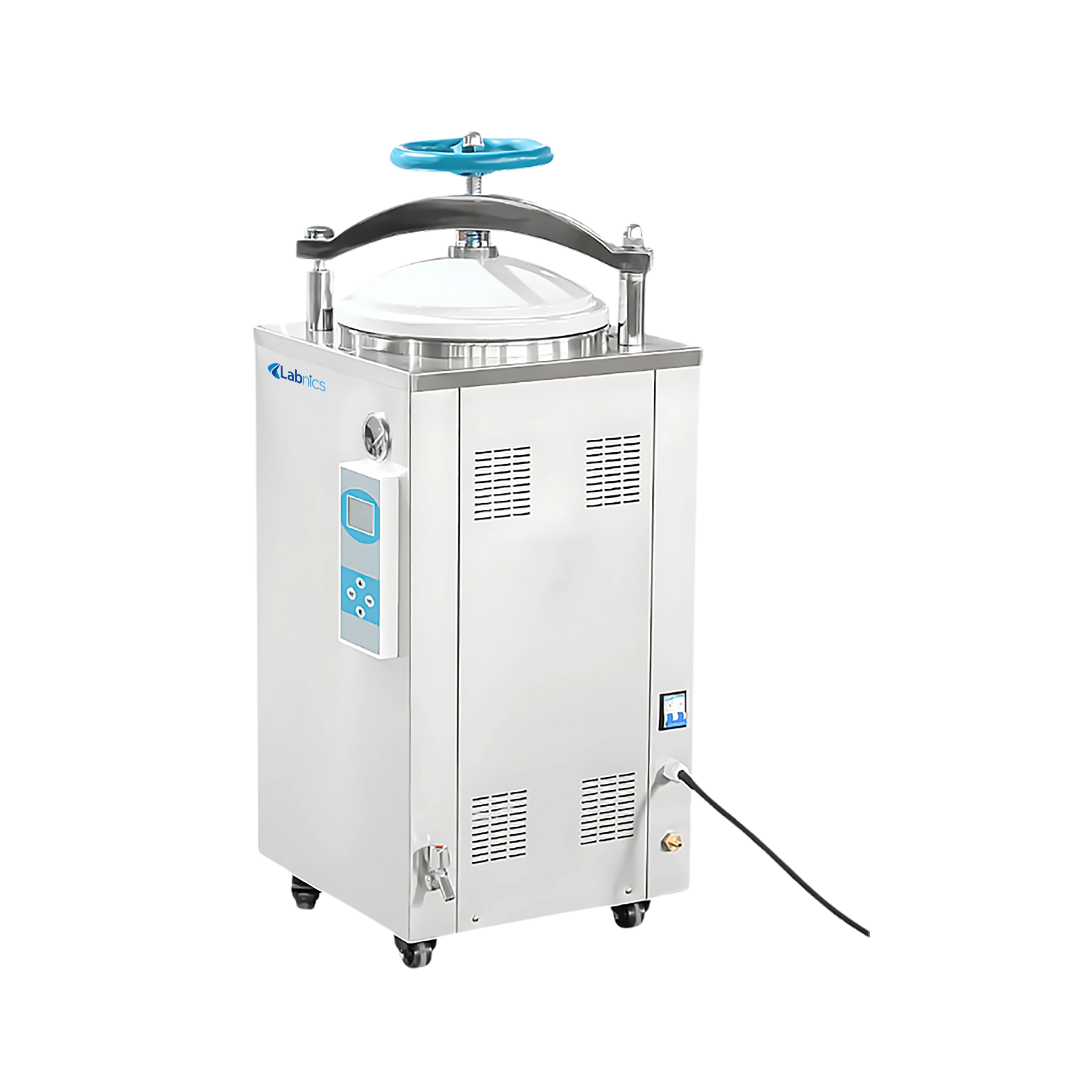

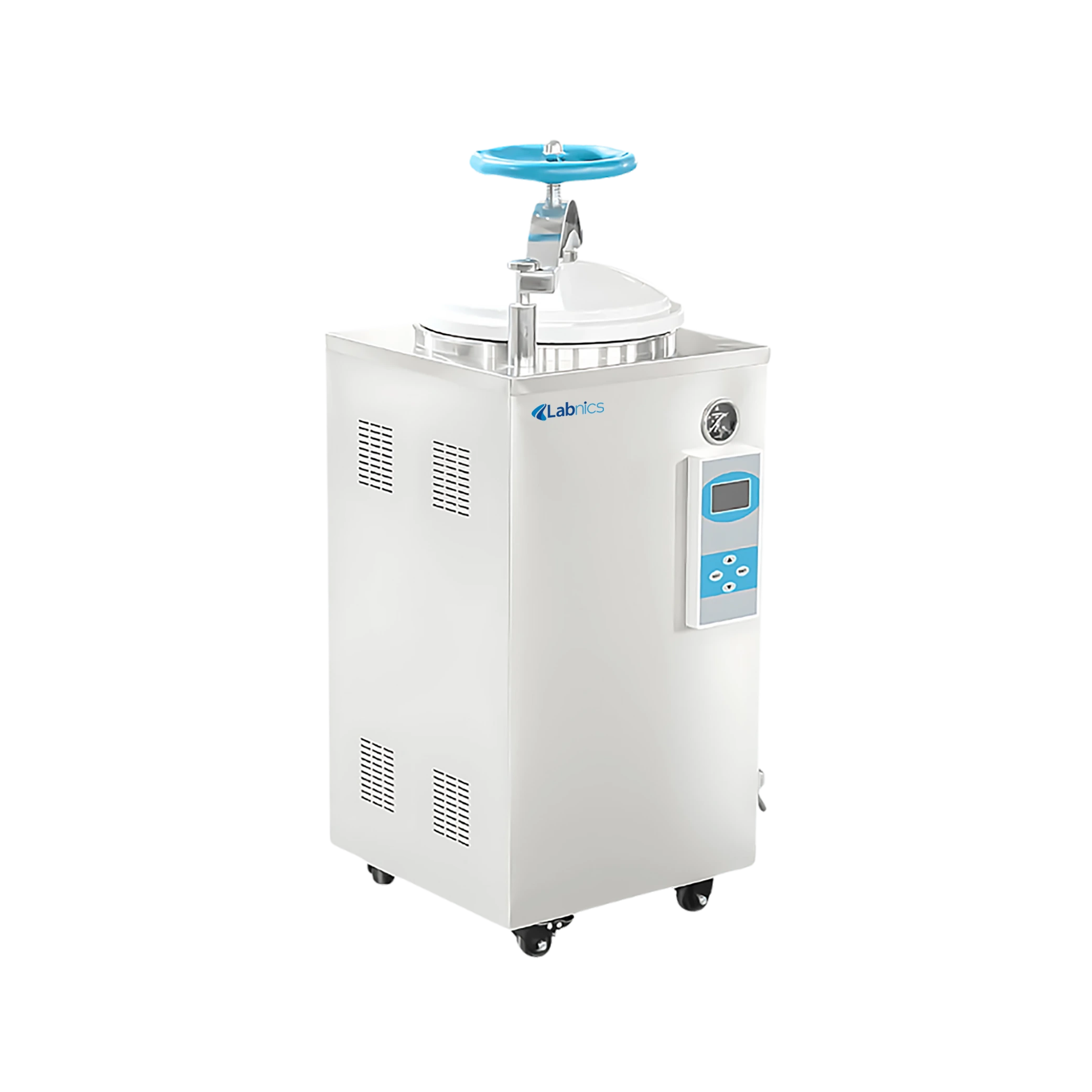

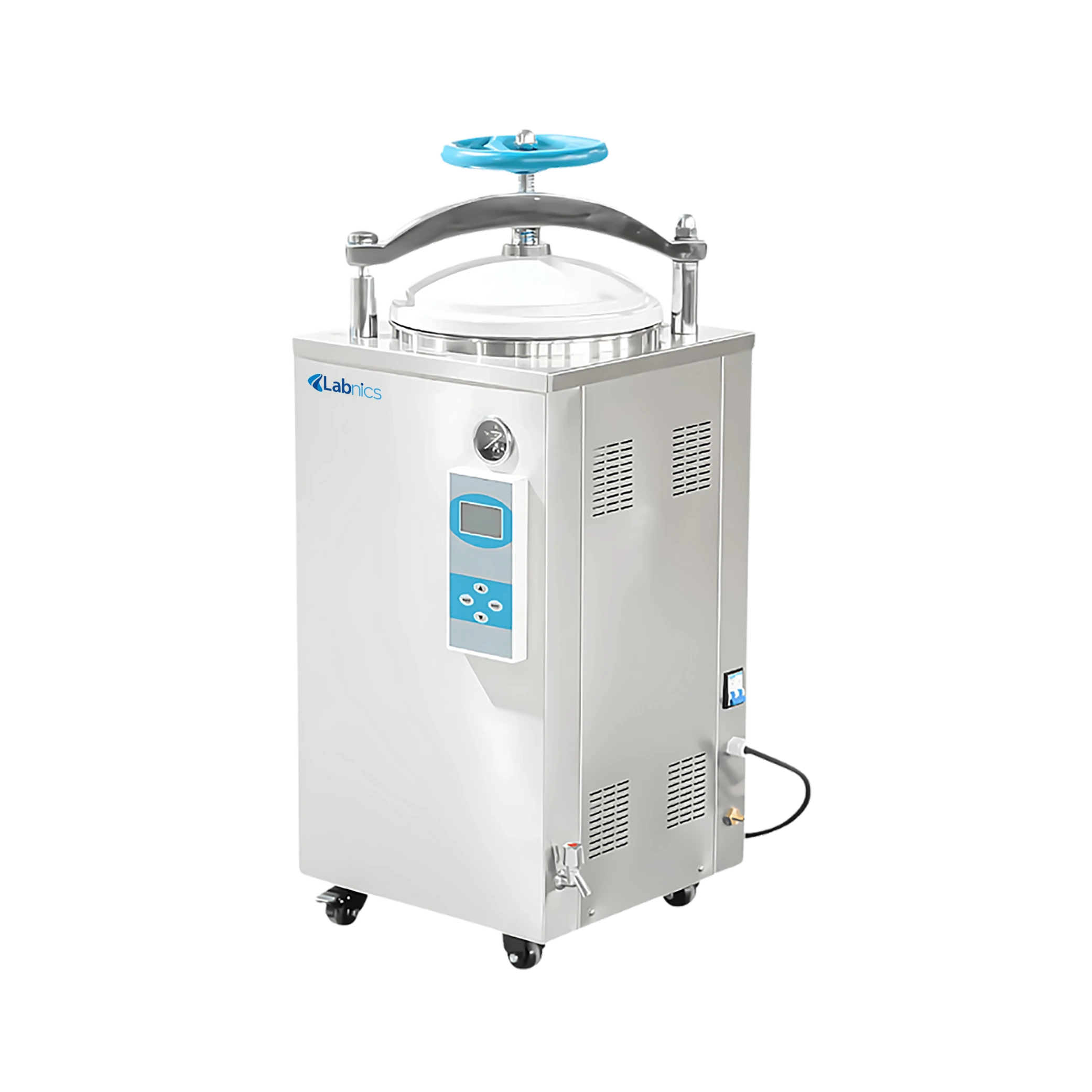

Vertical Autoclave NVA-201

Vertical Autoclave NVA-201 has a 50L capacity, making it ideal for medium-sized batch sterilization. It features a high-quality stainless-steel body, ensuring durability and ease of cleaning. This unit is equipped with built-in safety mechanisms to protect against overheating and overpressure. It includes a self-inflating type seal for an airtight closure, providing effective sterilization. Our vertical autoclave comes with two sterilizing baskets to organize and enhance the process.


Catalog

Specifications

Capacity 50L
Chamber volume 340×550mm
Working temperature 134°C
Working pressure 0.22Mpa
Temperature range 105°C to 134°C
Maximum working pressure 0.23Mpa
Heat average ≤±1°C
Timer range 0 to 99min or 0 to 99hour 59min
Display LCD
Body Stainless steel
Door Wheel-type, quick-open door
No. of sterilizing baskets 2 pcs
Sterilizing baskets dimensions 315×250mm/pc
Total CBM 0.42CBM
Power consumption 3kW
Power supply AC220V, 50Hz
Overall dimension 520×490×1150mm
Packaging dimension 580×580×1250mm
Gross weight 94kg
Net weight 74kg

Features

  • LCD digital display
  • Automatic air and steam venting
  • Touch-key operation
  • Hand-wheel quick-open door
  • Minimal maintenance required
  • Alerts after sterilization

Applications

  • Vertical Autoclave NVA-201 is employed for sterilizing a variety of materials, including surgical instruments, glassware, and laboratory tools, by exposing them to high-pressure steam. It is applied in hospitals, medical centers, dental offices, veterinary clinics, pharmaceutical labs, and research facilities.

Ask Expert

FAQ for Vertical Autoclave NVA-201

1: What safety features are included in the Vertical Autoclave NVA-201?

Our Vertical Autoclave comes with built-in mechanisms to prevent overheating and overpressure. A self-inflating seal ensures a tight, leak-proof closure for effective and safe sterilization.

2: How easy is it to operate the Vertical Autoclave NVA-201?

The Vertical Autoclave features a user-friendly LCD digital display and touch-key operation for convenience. The hand-wheel quick-open door system allows safe and quick access to the chamber.

3: What type of door does this Vertical Autoclave have, and how does it benefit the user?

Our Vertical Autoclave uses a hand-wheel type quick-open door that provides a secure seal and allows faster access to the chamber. The design enhances both safety and convenience during loading and unloading.

4: What kind of display is used on the control panel?

Our Vertical Autoclave features an LCD digital display that shows real-time data such as temperature, pressure, and timer settings. This helps monitor the sterilization cycle clearly and accurately.

5: How much maintenance does the Vertical Autoclave NVA-201 require?

Minimal maintenance is needed due to its durable design and reliable sealing mechanism. Regular cleaning of the chamber and checks on the sealing ring ensure optimal performance.


Vertical Autoclave NVA-201

Vertical Autoclave NVA-201

Related Models Of Vertical Autoclaves

Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.
