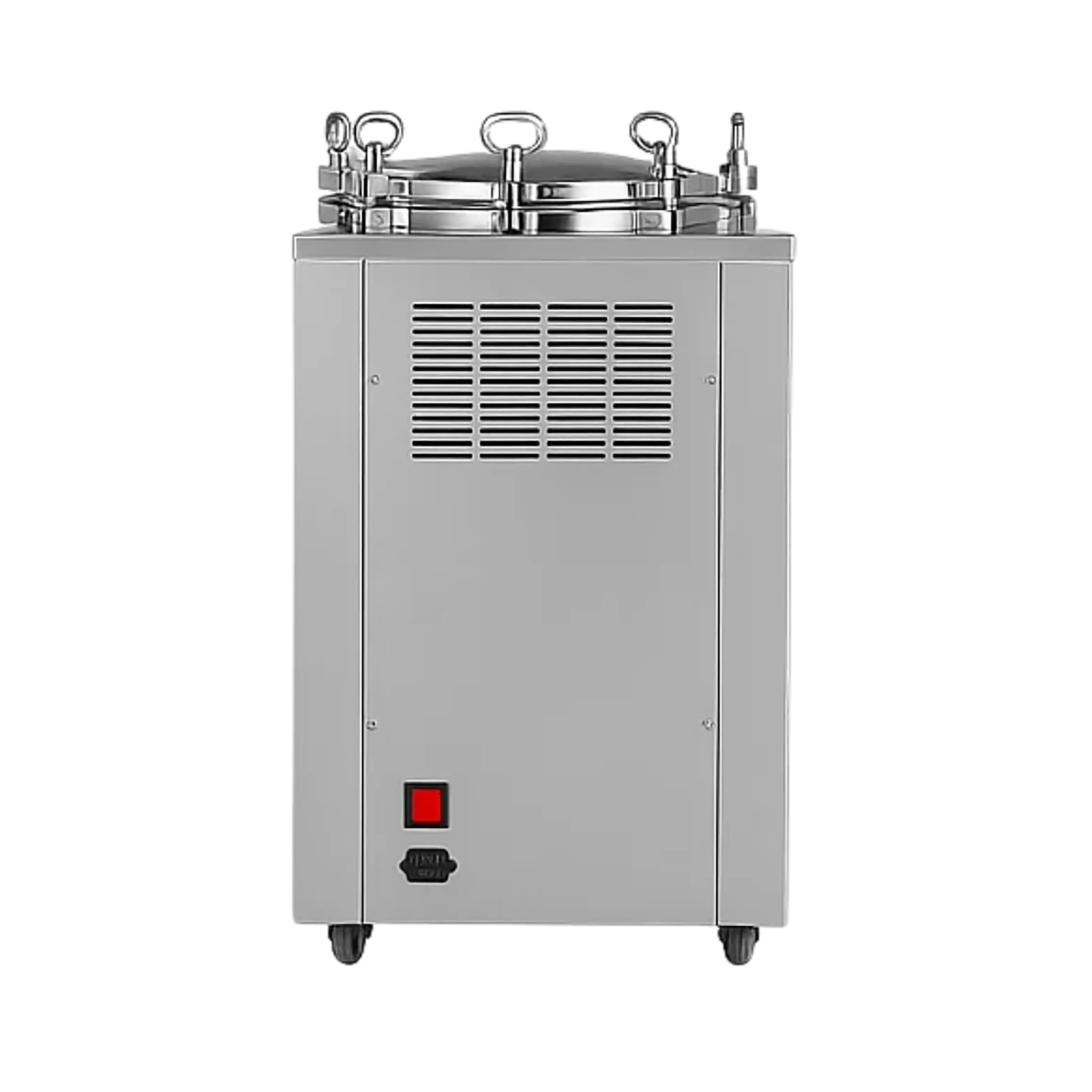

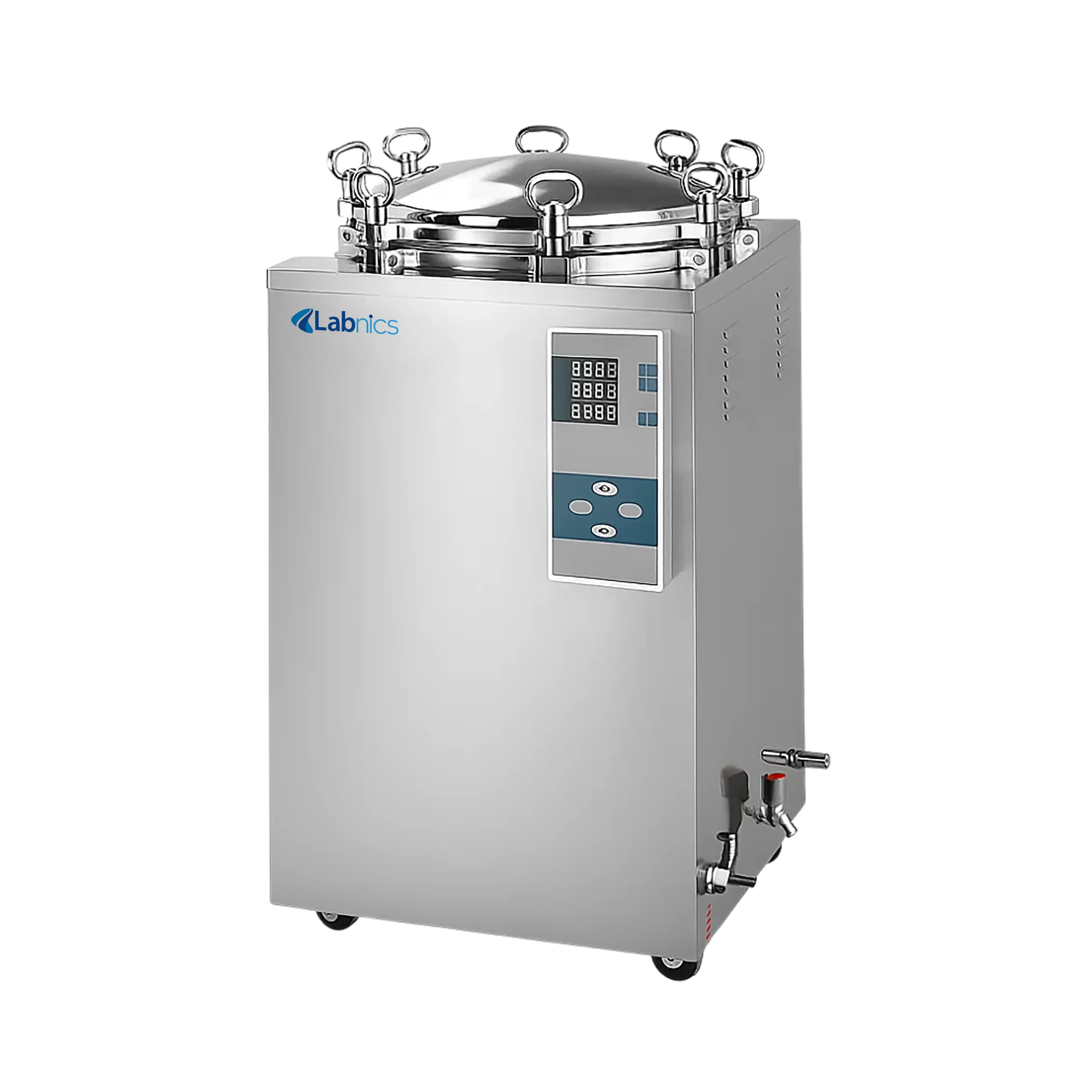

Vertical Autoclave NVA-101
Vertical Autoclave NVA-101 offers a 50-liter capacity and operates effectively within a temperature range of 105 ℃ to 136 ℃. It has an inner circulation system preventing steam discharge, maintaining a clean and dry environment. Our autoclave is crafted from a stainless-steel ensuring durability and easy maintenance. It features an LCD for monitoring working status and touch-sensitive keys for intuitive operation.
| Capacity | 50 L |
| Chamber Dimension | Φ 340 × 550 mm |
| Working Pressure | 0.23MPa |
| Designed Pressure | 0.28Mpa |
| Working Temperature | 105 to 136℃ |
| Temp. Display Accuracy | 0.1℃ |
| Heat Fluctuation | ≤ ± 1°C |
| Stainless Steel Sterilizing Baskets | 2 |
| Timer Range | 0-99 min / 0-99 hour 59 min |
| Temp. Holding Range | 45 to 60℃ |
| Power Supply | 230V, 50/60Hz |
| Overall Dimension | 520 × 520 × 980 mm |
| Packing Dimension | 590 × 590 × 1110 mm |
| Net Weight | 50 kg |
| Gross Weight | 68 kg |
Vertical Autoclave is utilized in medical facilities and laboratories to ensure the sterilization of surgical instruments, laboratory equipment, and other items requiring aseptic conditions.
Pressure gauge
| Capacity | 150 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 440 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 200 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 515 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 280 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 600 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 400 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1100 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 500 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1300 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 150 L |
| Body | Stainless Steel |
| Type | Pressure Steam Sterilization |
| Chamber Volume | Φ 440 × 1000 mm |
| Capacity | 20 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 420 mm |
| Capacity | 24 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 520 mm |
| Capacity | 35 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 300 × 500 mm |
| Capacity | 50 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 340 × 550 mm |
| Capacity | 45L |
| Working Temperature | 134℃ |
| Working Pressure | 0.22 Mpa |
| Maximum Temperature | 139℃ |
| Capacity | 18 L |
| Chamber Volume | ∮ 280 × 260 mm |
| Working Pressure | 0.14 - 0.16 Mpa |
| Working Temperature | 126 °C |
| Capacity | 24 L |
| Chamber Volume | ∮ 280 × 390 mm |
| Working Pressure | 0.14 - 0.16 Mpa |
| Working Temperature | 126 °C |
| Chamber volume | 6 L |
| Sterilization temperature | 115 ℃ to 135 ℃ (Selectable) |
| Ambient temperature | 5 to 40 ℃ |
| Working pressure | 42 kPa to 212 kPa |
| Capacity | 250 L |
| Working Pressure | 0.00 to 3.50 bar |
| Working Temperature | 100℃ to 135℃ |
| Holding Time | 05 min to 30 min |
