| Door opening method |
Front-opening double door |
| Capacity |
624 liters |
| Internal usable height |
327mm (layer 1 to 2)
365mm (layer 2 to top) |
| Maximum loading capacity |
2000ml×32
1000ml×48
500ml×80
250ml×120
100ml×180
50ml×264 |
| No. of trays |
2 |
| Temperature range |
4 to 60°C (Ambient temperature-15°C, minimum 4°C) |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Temperature editing |
Repeat/Pace/8-segment curve editing |
| Rotation way |
Rotary switchable |
| Rotation speed |
30 to 300 rpm |
| Rotation accuracy |
±1 rpm |
| Throw |
35 mm |
| Timing range |
0 to 999.59H |
| Display |
LCD |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Decontamination method |
UV sterilization |
| Illumination lamp/ UV lamp |
8W×2 |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
1100W |
| Cooling power |
334W |
| Motor power |
250W |
| Whole machine power |
1885W |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
928×530mm |
| Internal dimension |
1100×705×805mm |
| External dimension |
1240×836×1500mm |
| Net weight |
440 kg |

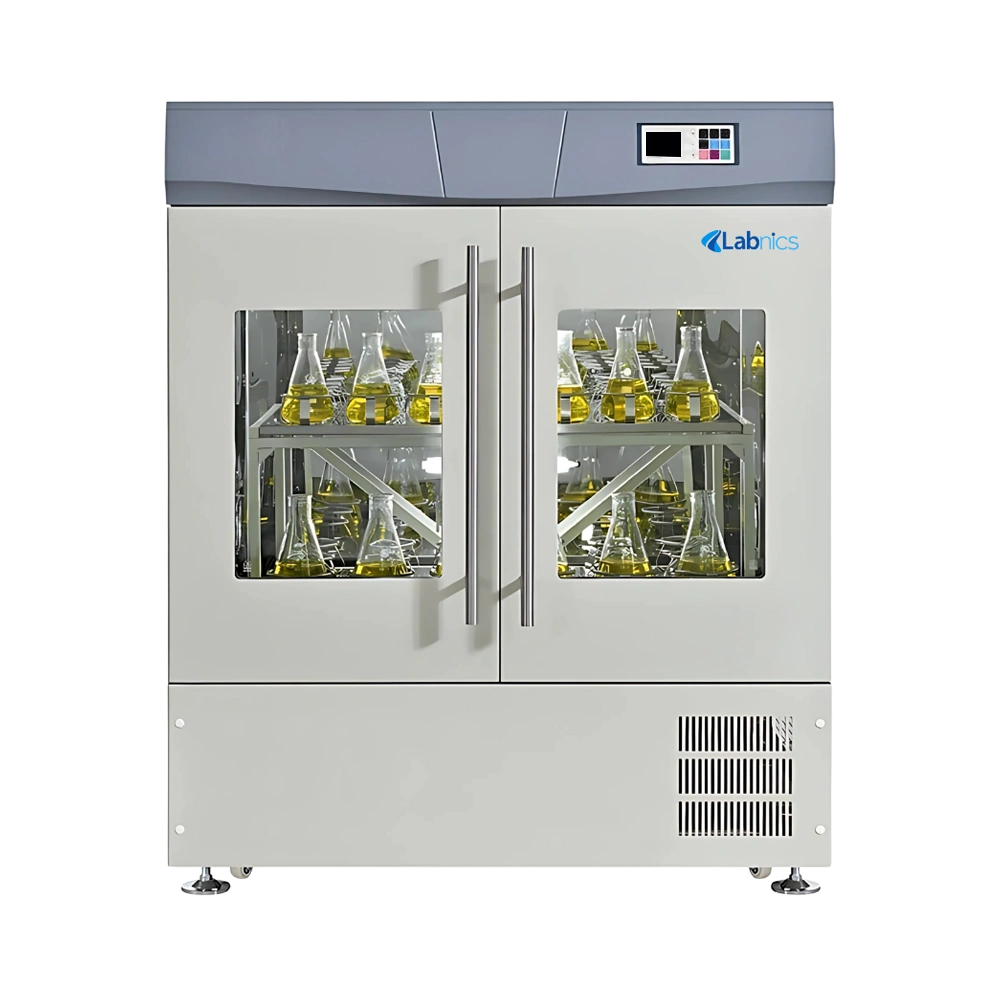

FAQ for Vertical Shaker Incubator NVSI-202
1: How does the airflow system benefit sample growth?
Our Vertical Shaker Incubator uses a forced circulation convection system to maintain even airflow and temperature distribution. This prevents hot or cold spots, ensuring all samples receive uniform growth conditions.
2: What type of safety features are included?
Our Vertical Shaker Incubator is equipped with a hollow double-layer safety tempered glass door that provides strong insulation while allowing safe observation. It also features electrical safety measures such as leakage detection, overcurrent protection, and a speed monitoring alarm to safeguard both users and samples.
3: How does the glass door improve usability?
The Vertical Shaker Incubator is fitted with a hollow double-layer safety tempered glass door that provides excellent insulation. At the same time, it allows you to observe the samples inside without disturbing the internal conditions.
4: Can the Vertical Shaker Incubator NVSI-202 be adapted for specialized studies?
Our Vertical Shaker Incubator comes with optional features such as active humidification, light cultivation, and 3Q verification. These options make it suitable for moisture-sensitive cultures, phototrophic organisms, and quality-controlled research environments.
5: How should the Vertical Shaker Incubator NVSI-202 be cleaned regularly?
The Vertical Shaker Incubator should be cleaned with a soft cloth and mild disinfectant to maintain hygiene and prevent contamination. It is recommended to avoid strong acids or abrasive cleaners, as they may damage the stainless-steel chamber and glass surfaces.
6: Can the Vertical Shaker Incubator be programmed for complex experimental protocols?
Yes, the Vertical Shaker Incubator supports multi-segment programming with up to 30 segments and 999 cycles. This allows you to set different temperature, shaking speed, and duration for each segment. The incubator can automatically run these steps in sequence without manual input. This feature enables precise control over complex experimental protocols. It simplifies running multi-phase experiments efficiently.
7: What components ensure stable temperature and shaking performance in the Vertical Shaker Incubator?
Our Vertical Shaker Incubator uses a high-quality compressor to provide consistent and uniform temperature control throughout the chamber. It is equipped with a DC motor that delivers smooth and quiet shaking. These components work together to maintain stable environmental conditions during experiments. This ensures reliable and accurate results.
8: What safety features are included in the Vertical Shaker Incubator?
The Vertical Shaker Incubator features tempered glass doors that provide clear visibility while ensuring safety. Mechanical locks secure the doors to prevent accidental opening during operation. It also includes multi-level user permissions, allowing controlled access to settings. This helps prevent unauthorized changes and protects your experiments.
9: How does the Vertical Shaker Incubator support data monitoring and storage?
It is equipped with a 7-inch touchscreen that displays real-time parameters, records key events, and shows data curves for easy monitoring. It also supports USB storage, allowing the export of up to one million data records for convenient experiment documentation and analysis.
