Vacuum-Type Glass Filtration Unit NVGF-103

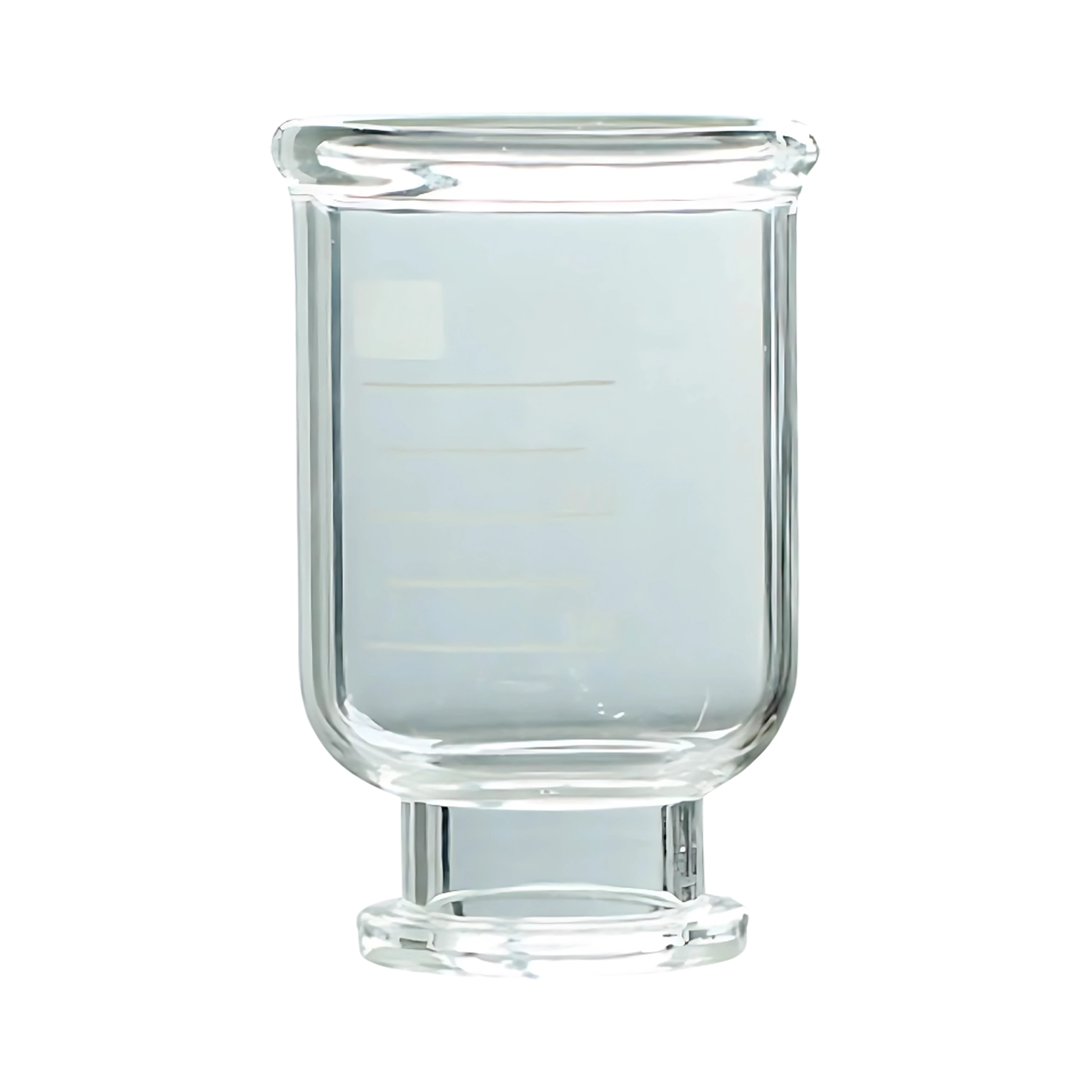

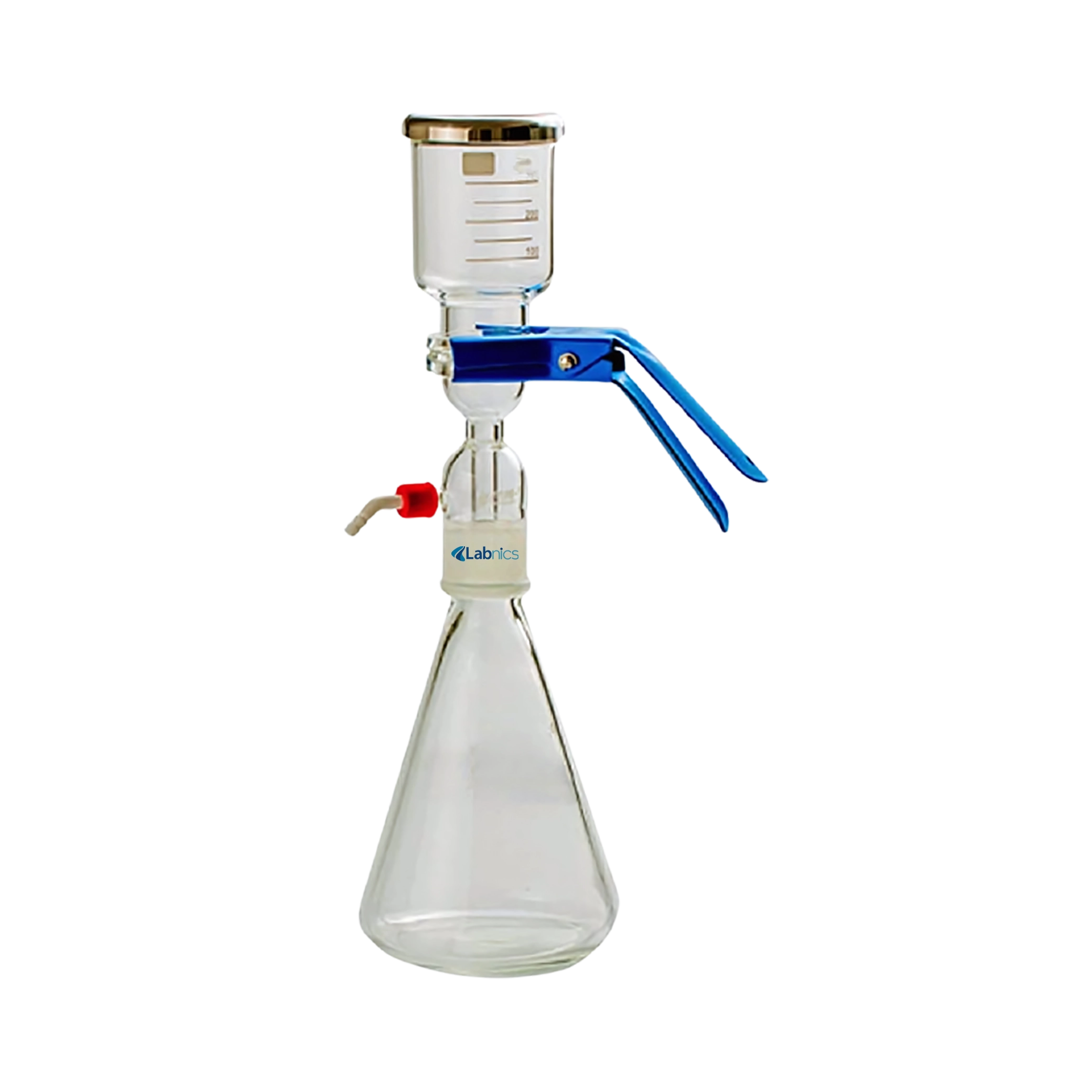

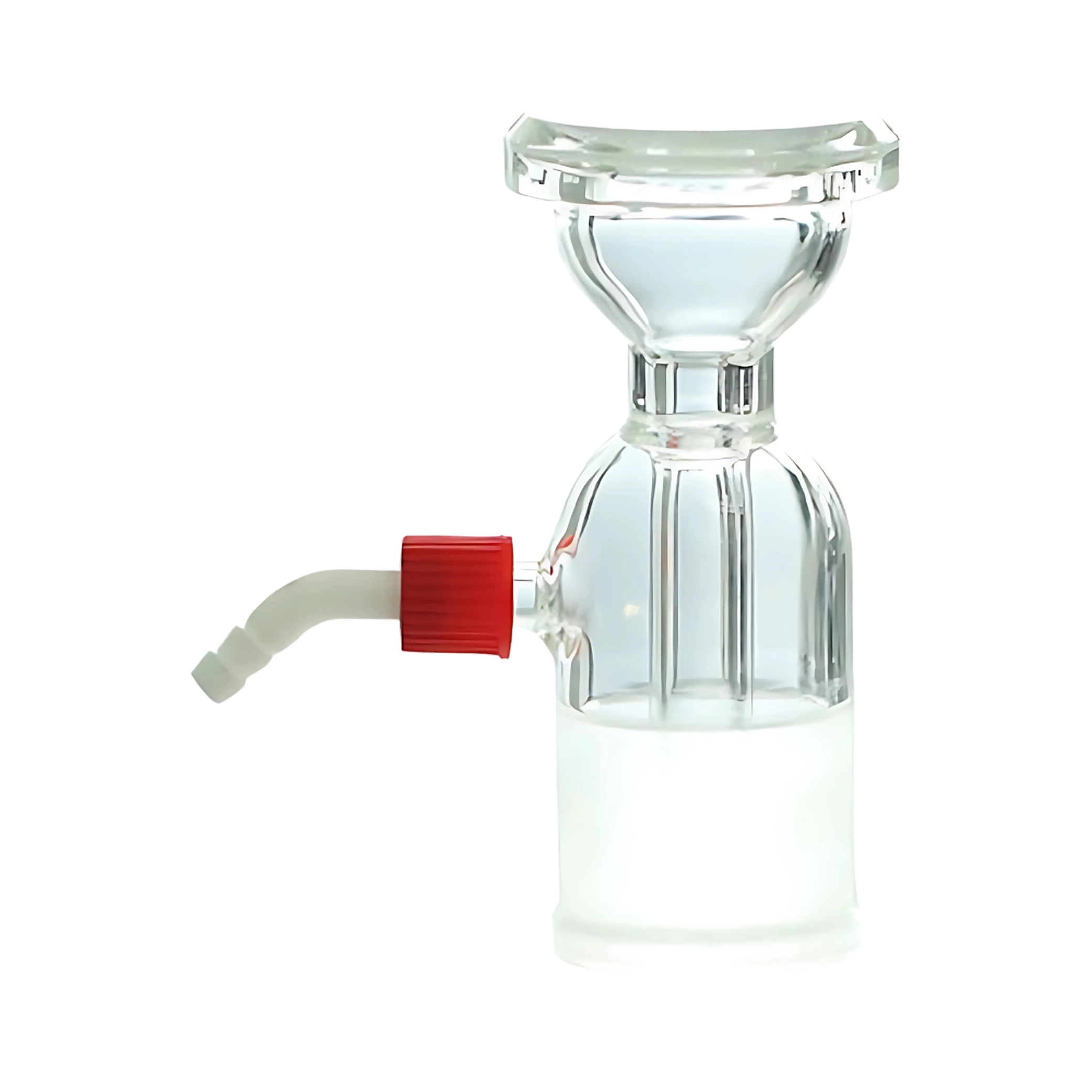

Vacuum-Type Glass Filtration Unit NVGF-103 is a filtration unit combined with a vacuum pump for rapid filtration of particulate matter from solvent. Designed from hard borosilicate glass, and has uniform wall thickness throughout, giving a clear view of the contents inside. Equipped with a fritted-glass support base and the sample reservoir, it is secured in place by an aluminium clamp and can hold 47mm diameter membrane filter.

---

Get Quote Catalog

Specifications

Pore Size of Filter	20 µm
Receiving Bottle	1000 ml
Material	Glass
Funnel	300 ml
Material Support Screen:	Pyrex glass
Membrane	47 or 50 mm
Color	Transparent
Packaging dimensions (W×D×H)	36×25×36 cm
Gross weight	8 kg

Features

• It is made of high-quality, toughened glass
• withstands high pressure, leak-proof system
• It could be used for sterilizing at a high temperature of 121°C
• can filter all kinds of aqueous solutions, organic solutions, and corrosive liquids

Applications

• It is widely utilized for HPLC analysis, instrumental analysis, sanitary inspection, pharmaceutical industry, pesticide liquid filtration, petroleum, environmental monitoring fields.
