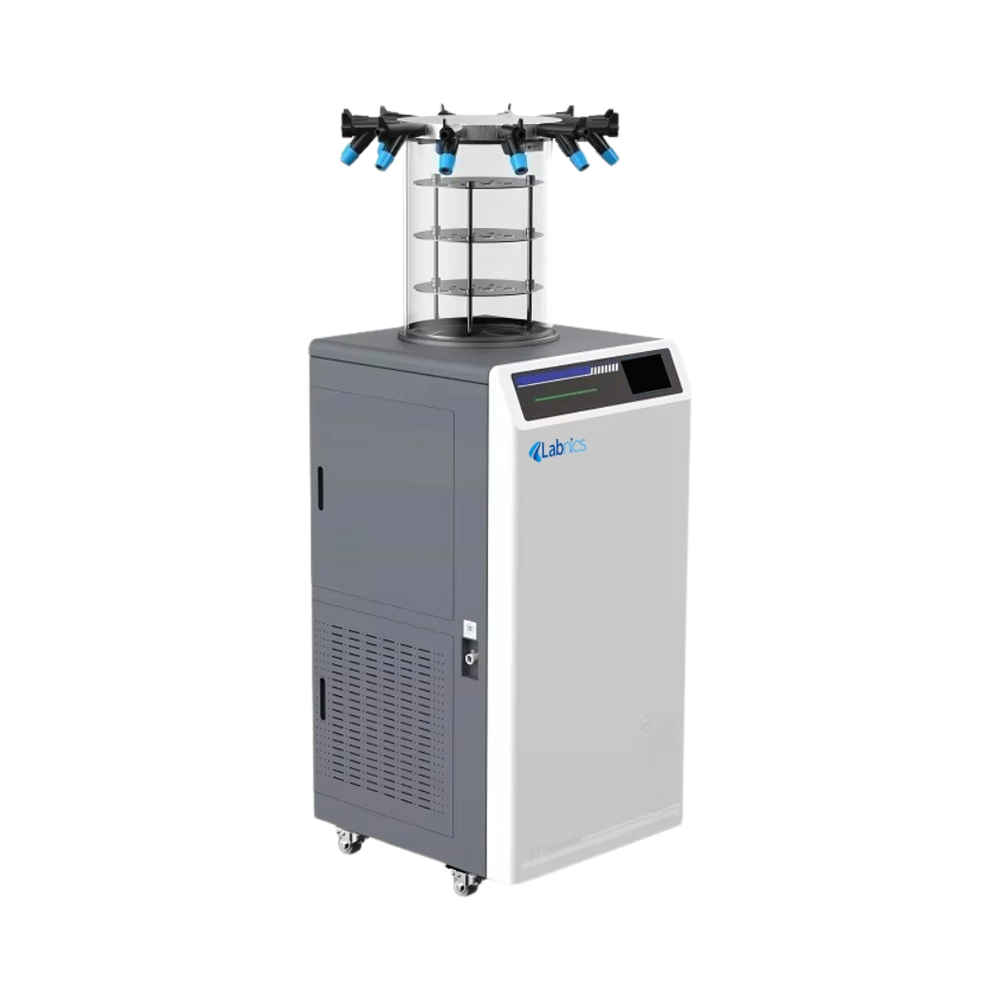

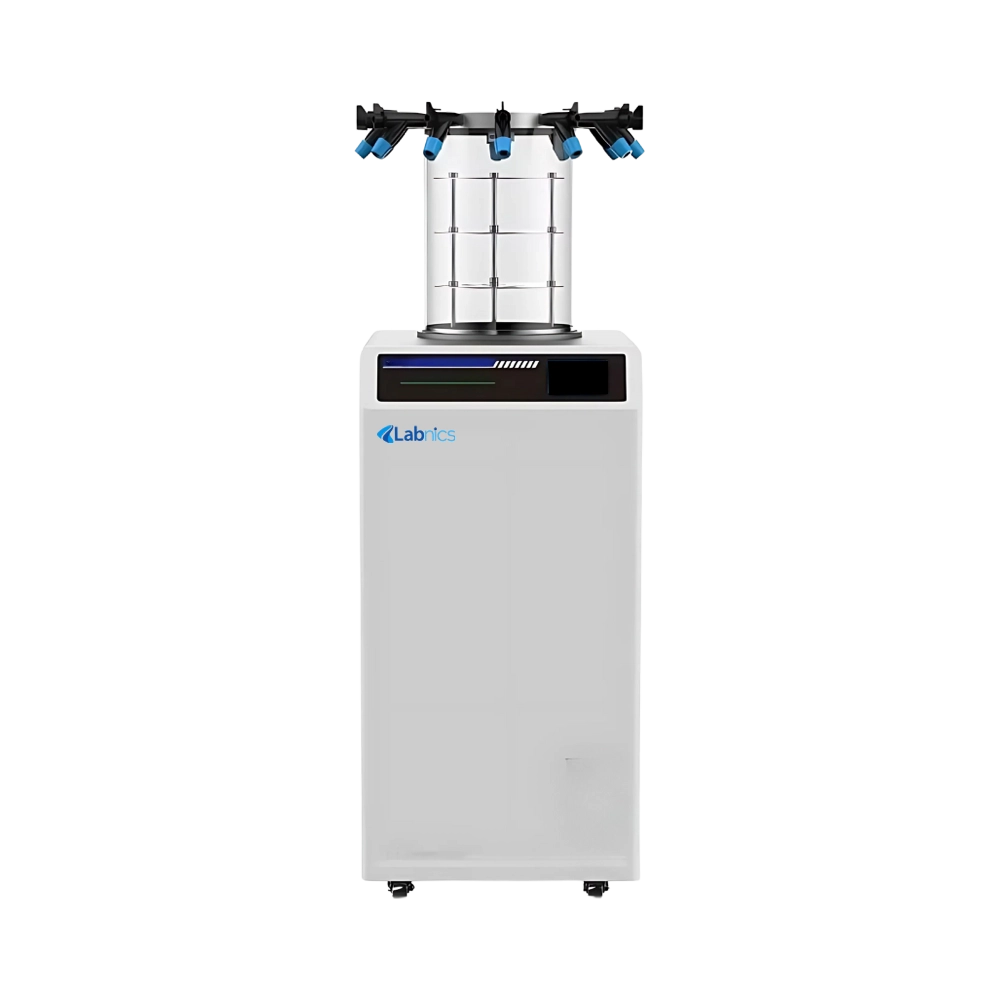

Vacuum Freeze Dryer NVFD-200 features an ice condenser with a 9kg capacity and a condenser temperature of -70°C. Our freezer supports 3 to 10 layers of adjustable sample shelves. It is designed for efficient sublimation drying, ensuring reliable and consistent results. This unit is equipped with a PTFE anti-corrosion system, making it suitable for use with organic solvents. It offers intelligent data output options, allowing users to monitor critical parameters
$16,979.00
Specifications
| Capacity | 9kg |
| Temperature | -70°C |
| Cold Trap Volume | 15L |
| Sample Shelf | 3 to 10 layers (optional) |
| External Valve | 12 pieces/ 24 pieces |
| Power Consumption | 0.9 kW |
| Power Supply | 220V, 50Hz |
| Dimensions (W × D × H) | 525 × 570 × 1080 mm |
| Weight | 80 kg |
Features
Applications
Standard Accessories
Oil Mist Filters
Optional Accessories
Aluminum upper cover and external valve（12 ports）
T-frame 12 ports
Ask Expert
FAQ for Vacuum Freeze Dryer NVFD-200
1: What types of samples can be freeze-dried in Vacuum Freeze Dryer NVFD-200?
This unit is suitable for pharmaceutical formulations, biological samples (e.g., enzymes, tissues), food products, and chemical compounds.
2: Does Vacuum Freeze Dryer NVFD-200 support manifold drying?
Yes, an optional manifold drying system is available for drying multiple small-volume samples simultaneously.
3: Do samples need to be pre-frozen before starting the freeze-drying process?
Yes, samples should be pre-frozen to ensure optimal freeze-drying performance and to prevent structural damage.
4: What type of chamber does Vacuum Freeze Dryer NVFD-200 use?
The default chamber is a bell-shaped design, which offers even distribution and is suitable for most standard freeze-drying applications.
5: What safety features are included in Vacuum Freeze Dryer NVFD-200?
This unit includes over-temperature protection, vacuum overload protection, and safe sealing mechanisms for stable and reliable operation.
Labnics Vacuum Freeze Dryer removes moisture from sensitive substances while preserving their structure. They consume minimal energy and operate with high efficiency. Our freeze dryers use vacuum chambers to protect heat-sensitive materials from thermal damage. These are built with durable, corrosion-resistant materials that ensure long-term performance. They incorporate eco-friendly features and low-noise operations for various applications.
