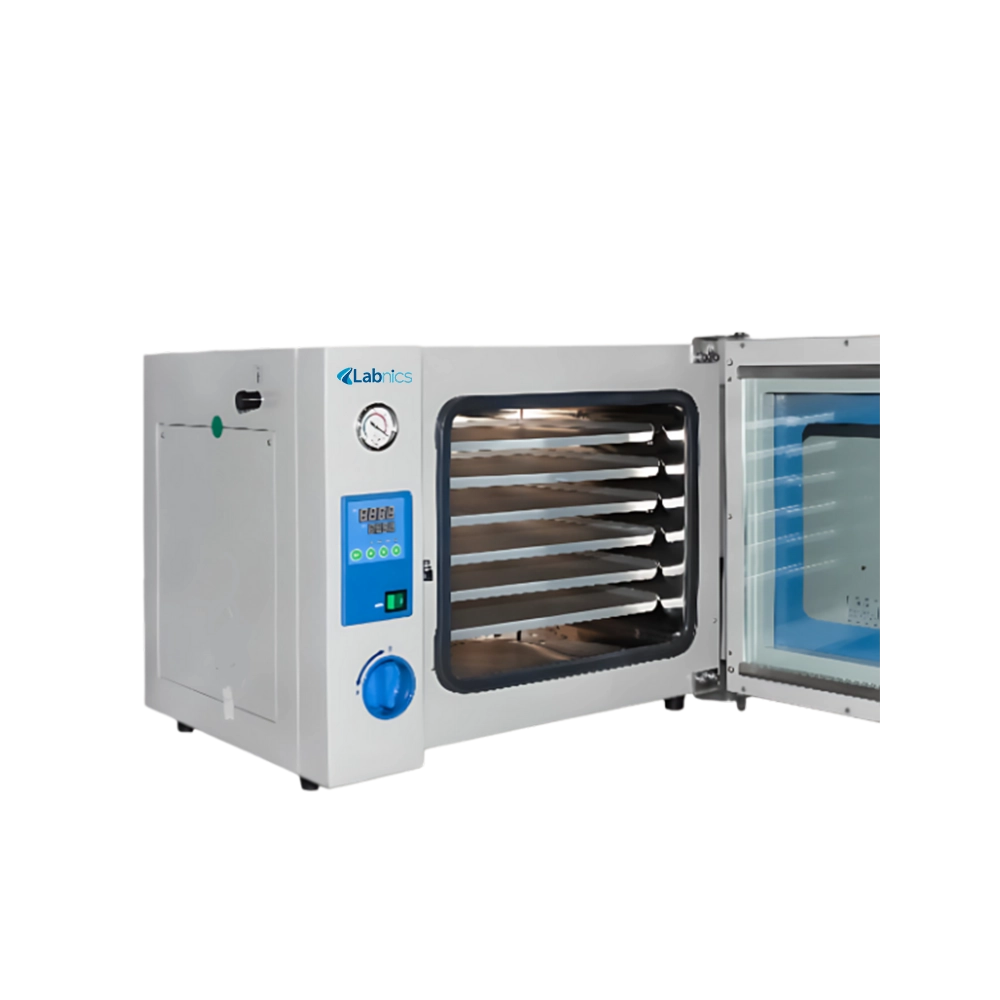

Vacuum Drying Oven NVDO-205

Vacuum Drying Oven NVDO-205 offers a 125L capacity with a temperature range from RT+10°C to 200°C. It features a 304 stainless steel chamber with six shelves, maximizing space for multiple samples. This unit is equipped with an over-temperature alarm and a built-in timing function to prevent overheating. It includes a toughened glass door for clear visibility of the drying process. Our oven comes with an LED display for real-time monitoring and easy control.

---

$9,088.00

Buy Now Catalog

Specifications

Capacity	125L
Shelves	6pcs
Temperature range	RT+10°C to 200°C
Temperature stability	±1°C
Ambient temperature	+5 to 40°C
Display resolution	0.1°C
Vacuum degree	133Pa
Display	LED
Internal material	304 stainless steel
Observation window	Dual-layered tempered glass
Shelves material	Aluminum tray
Power consumption	1500W
Power supply	AC220,50Hz
Internal dimension	500×500×500mm
External dimension	790×660×641mm
Packaging dimension	1060×970×1050mm
Gross weight	265kg

Features

• PID controller for precise temperature control
• Reduces heating time by more than 40%
• Silicon gasket and adjustable door system
• Inert gas valve for controlled atmosphere
• Low maintenance and easy-to-clean

Applications

• Vacuum Drying Oven NVDO-205 is used to dry heat-sensitive materials, preserve product integrity, prevent oxidation, and remove moisture from components. It is widely employed in pharmaceuticals, food processing, material science, chemical, biotechnology, and aerospace industries.

Optional Accessories

Intelligent programmable temperature controller

---

Imported vacuum meter

---

Inert gas valve

---

Vacuum pump VOP100

---

Vacuum pump VOP200

---

Vacuum pump 2XZ-2

---

Vacuum pump 2XZ-4

---

Oil mist filter

---

Liquid filter

---
