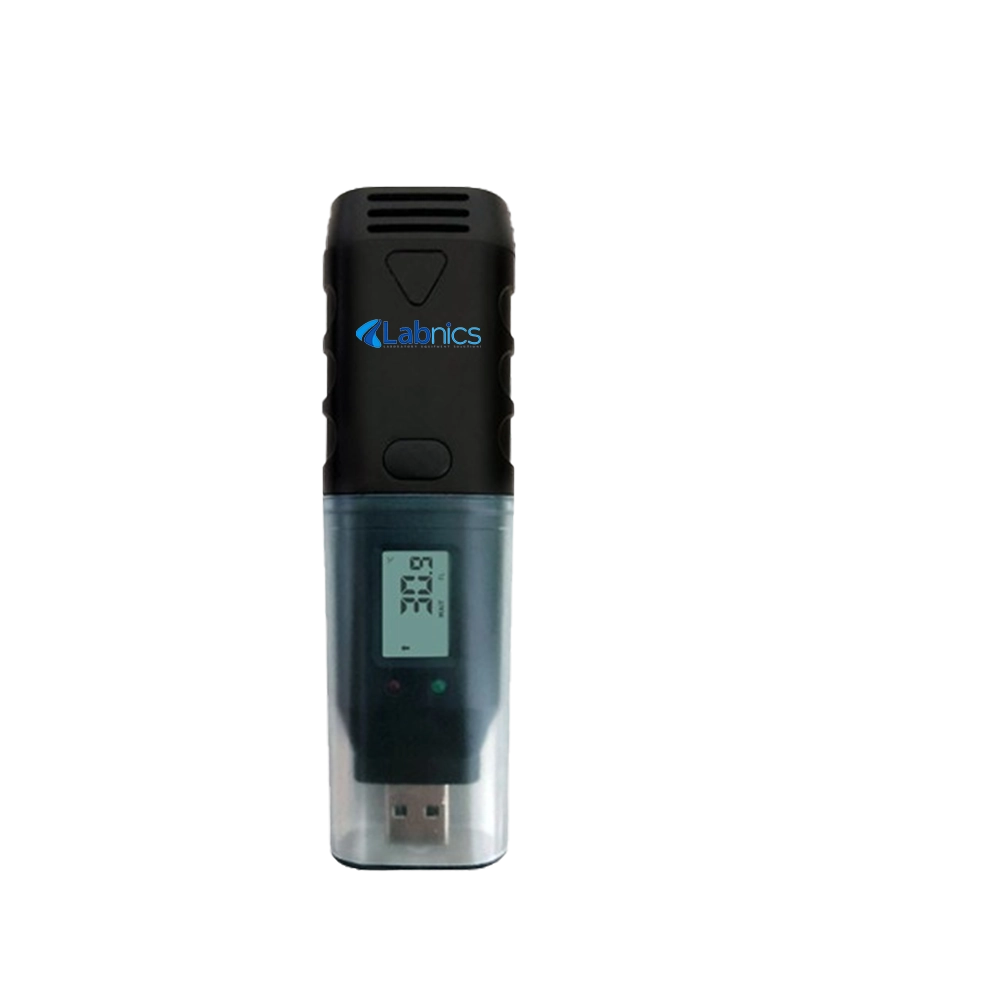

Temperature Data Logger NTDL-100
Temperature Data Logger NTDL-100 operates at a temperature range from -200 to 250℃. It accommodates up to six marker points for easier identification and analysis. It features a built-in probe with a response time of 15 minutes to stabilize and provide accurate readings. Our data logger is equipped with an LCD display for clear and precise reading measurements.
Temperature Range | -200 to 250℃ |
Temperature Accuracy |
With A PT1000: ±0.7℃(-100 to +100℃); ±1℃ With 1/3B PT1000: ±0.5℃(-100 to +100℃); ±1℃ |
Temperature Resolution | 0.1℃ |
Operating/Storage Temperature | -40~70℃ |
Sampling Interval | 10 seconds to 18 hours |
Response Time(t90) | 15 minutes |
Storage | 39960 groups of measurements |
LCD Refresh Interval | 10 seconds |
Alarm Type | Single time; Cumulative |
Delay in Alarm | 0 to 960 minutes |
Start Delay | 0 to 254 minutes |
Start Recording Mode/ Stop Recording Mode | One key function , automatically stops when storage is full |
Automatic Screen Closing Time | 3 minutes |
Interface | Type-A USB2.0 |
PC Software | PoChain; PidifiX (Windows 7/8/vista/10 32/64bits) |
Shell Material | ABS |
Certification and Standards | CE, ROHS, EN12830, REA |
Power Supply | 3.6V non-rechargeable lithium battery, |
Dimensions | 120 × 37 × 23mm |
Weight | 67g |
Temperature Data Logger is widely used in food storage and transport, pharmaceuticals, laboratory research, and industrial processes.
