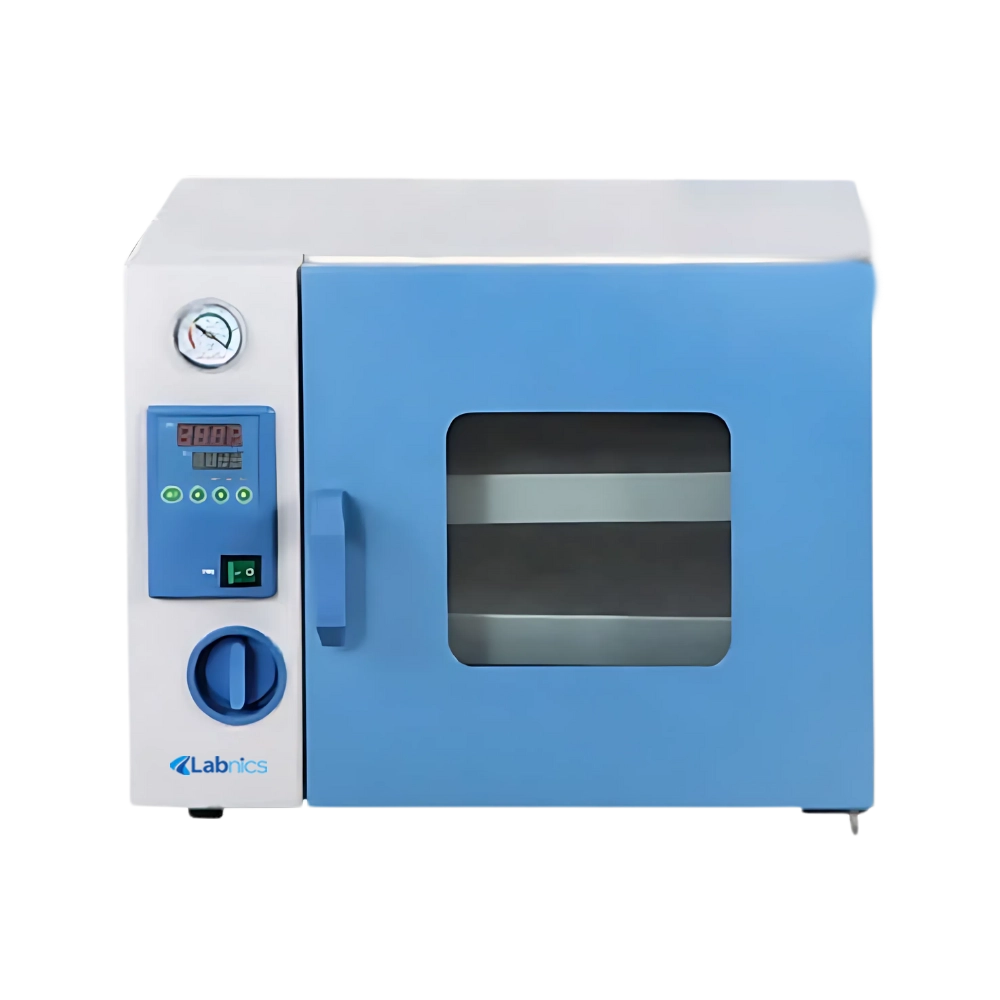

Vacuum Drying Oven NVDO-200

Vacuum Drying Oven NVDO-200 offers a 10L chamber capacity and temperature range from RT+10°C to 200°C. It features a PID controller for precise temperature control, ensuring efficient drying. This oven is equipped with an over-temperature alarm and a built-in timer to prevent overheating. It has a silicon gasket and door adjustment system, ensuring superior vacuum performance. Our unit includes a dual-layer tempered glass door for clear sample visibility.

---

Get Quote Catalog

Specifications

Capacity	10L
Shelves	2pcs
Temperature range	RT+10°C to 200°C
Temperature stability	±1°C
Ambient temperature	+5 to 40°C
Display resolution	0.1°C
Vacuum degree	133Pa
Display	LED
Internal material	304 stainless steel
Observation window	Dual-layered tempered glass
Shelves material	Aluminum tray
Power consumption	400W
Power supply	AC220,50Hz
Internal dimension	220×210×220mm
External dimension	500×375×410mm
Packaging dimension	600×530×590mm
Gross weight	35kg

Features

• Microprocessor controller with timing function
• LED display for easy monitoring
• Reduces heating time by more than 40%
• 304 stainless steel chamber for durability
• Inert gas valve for controlled atmosphere

Applications

• Vacuum Drying Oven NVDO-200 is used to dry heat-sensitive materials by reducing the pressure inside the chamber. It is commonly used in laboratories, pharmaceuticals, food processing, and electronics industries.

Optional Accessories

Intelligent programmable temperature controller

---

Imported vacuum meter

---

Inert gas valve

---

Vacuum pump VOP100

---

Vacuum pump VOP200

---

Vacuum pump 2XZ-2

---

Vacuum pump 2XZ-4

---

Oil mist filter

---

Liquid filter

---
