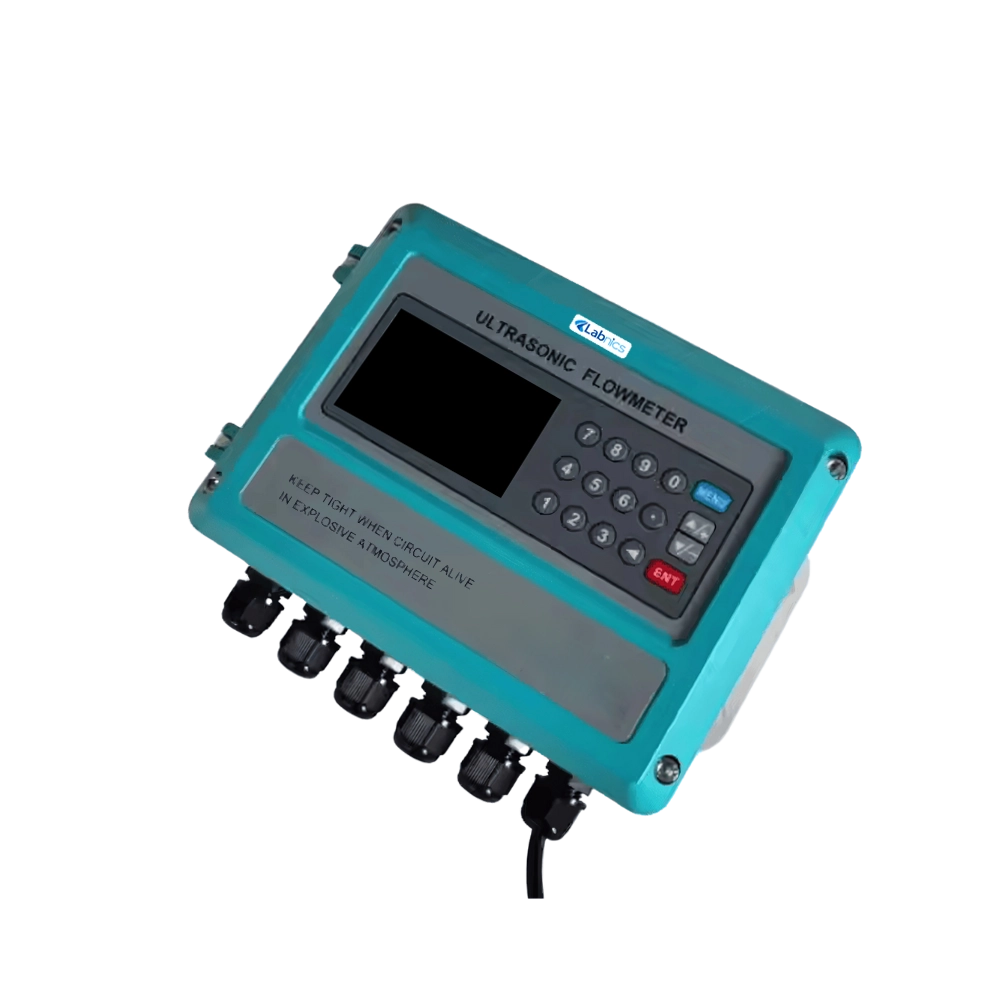

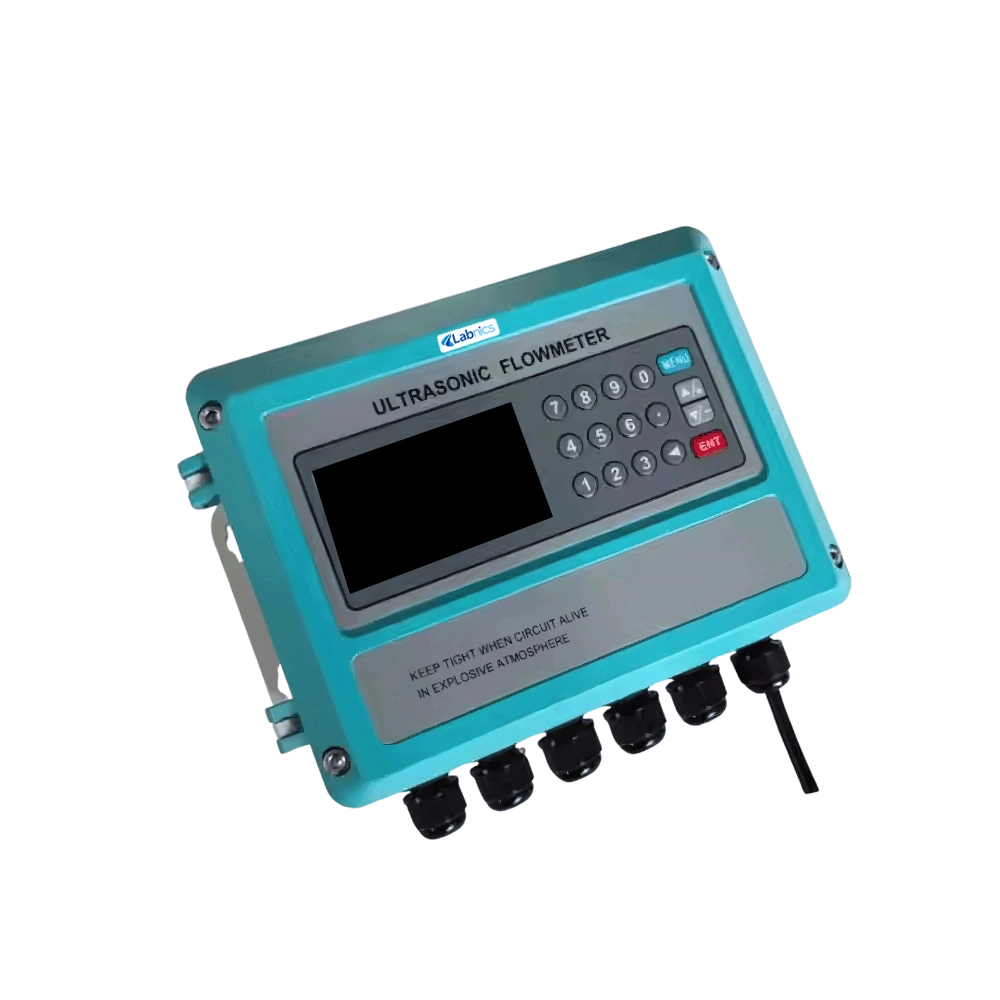

Multichannel Ultrasonic Flow Meter NMUF-100 measures flow rates as low as ≥0.1 m/s with its four-channel configuration. It supports three-wire or four-wire Pt100 transducers for precise heat and cooling energy measurement. It enables quick installation without breaking the pipe flow, ensuring uninterrupted operation. Our unit handles various fluids, including water, sewage, oils, and chemical solutions. This flow meter features a large LCD screen that provides easy monitoring and data interpretation.
$2,038.00
Specifications
| Measuring Flow Rate | One-Channel: ≥0.3 m/s Two-Channel: ≥0.3 m/s Four-Channel: ≥0.1 m/s |
| Accuracy | One-Channel: ±1% Two-Channel: ±0.5% Four-Channel: ±0.5% |
| Pipe Diameter | DN15–DN6000 mm |
| Liquid Temperature Range | -30°C to 160°C |
| Temperature Range | Converter: -20°C to 60°C Transducer: -30°C to 160°C |
| Humidity | Converter: ≤85% RH |
| Type of Liquid | Water, seawater, sewage, acid-alkali solution, ethyl alcohol, beer, and other sound-wave transmitting liquids |
| Protection Class | Converter: IP67 Transducer: IP68 |
| Signal output | 1 way 4-20mA output, electric resistance 0-1K (DC24V power supply), accuracy 0.1% 1 way OCT pulse output, pulse width 6-1000ms 1 way relay output or frequency output |
| Signal input | 3-way 4-20 mA input Can be connected to a three-wire or four-wire PT100 temperature transducer Enables heat/cooling energy measurement |
| Data Interface | Insulated RS485 serial interface, supports MODBUS |
| Power Supply | DC8-36V; AC0-30V; AC85-264V |
| Dimensions (W × H × L) | 226 × 172 × 68 mm |
Features
Applications
Standard Accessories
2 pairs clamp on flow sensor (DN50-DN700, -30 to 90℃)Optional Accessories
