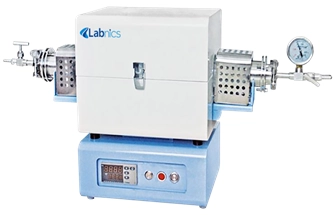

Tube furnace NTF-101

Tube furnace NTF-101 is a heating device that can convert and adjust the atmosphere or vacuum state in the furnace so that materials can be sintered in a specific vacuum or atmosphere. These furnaces provide unmatched thermal uniformity and bring about optimal distribution of heat and are therefore ideal for various thermose

---

Get Quote Catalog

Specifications

Operating temperature	300-1200 ℃
Resolution	1 ℃
Temperature accuracy	±1℃
Heating rate	0-20℃
Heating power	1.2kw
Voltage	AC220V 50HZ
Heating area	410mm
Working size	120x430mm
Control method	LED program control
Vacuum Mpa	-0.1
Furnace tube material	Quartz tube
Furnace tube inner diameter	92x1000 mm
Dimensions (L×D×H)	1320×430×520 mm

Features

• Automatic power off when the furnace door is opened, over-temperature protection function, and leakage protection function to ensure the safety of use
• The gas path connection adopts a quick connection flange structure, which is quick and convenient to install and disassemble
• The furnace is divided into upper and lower parts, and the upper part of the furnace can be turned back 100°, which is convenient for picking and placing and observing materials
• The furnace is made of polycrystalline mullite fiber vacuum adsorption, and the temperature field is even and energy-saving by more than 50%
• Air diversion heat insulation technology ensures the service life and constant temperature effect of each component in the box
• Automatic power off when the furnace door is opened, over-temperature protection function, and leakage protection function to ensure the safety of use
• The circuit adopts continuous heating output mode, double-circuit power supply, and separate wiring of strong and weak currents improves the stability of the system
• The operation button is made of low-voltage metal button, with its own status indicator light, which is safe and intuitive to operate

Applications

• It is widely used across broad range of thermal processes which include inorganic and organic purification, accelerated aging and annealing, coating, drying, etc.
