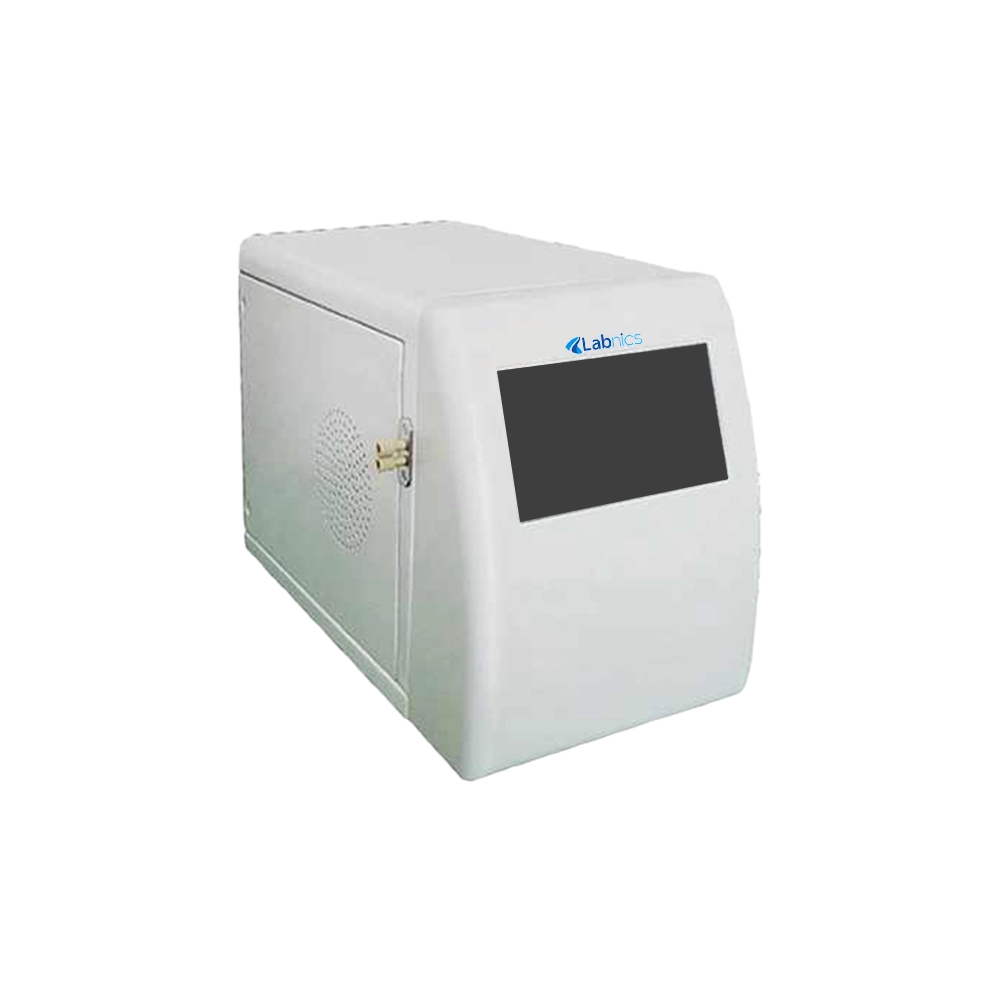

TOC Analyzer NTOC-200
TOC Analyzer NTOC-200 features a detection range of 0.001 to 1.5 mg/L, ensuring precise measurements. It provides rapid results, with each analysis completed in less than 3 minutes for efficient testing. This unit utilizes UV oxidation with a UV lamp, eliminating the need for acids, gases, or catalysts. Our analyzer provides flexible measurement options, making it ideal for testing various types of water. It includes a 7-inch touchscreen with an intuitive user interface for easy operation.
Detection Range | 0.001 to 1.5mg/l |
Detection Limit | 1ppb |
Maximum Tolerance | ±5% |
Analysis Time | 3 min |
Response Time | Within 10 min |
Sample Temperature | 1 to 95°C |
Sample Flow Speed | 3ml/min |
Repeatability Tolerance | ≤ 3% |
Drifting | ±5% |
Environment Temperature | 10 to 40°C with temperature change ±5°C/d |
Relative Humidity | ≤85% |
Power Consumption | 100W |
Power Supply | AC 220V, 50/60Hz (Standard); AC 110V, 50Hz (Optional) |
External Dimensions (L × W × H) | 440 × 220 × 300mm |
Package Dimensions (L × W × H) | 610 × 470 × 405mm |
Net Weight | 11kg |
Gross Weight | 16kg |
TOC Analyzer NTOC-200 is used to measure total organic carbon levels in water, ensuring water quality and compliance with environmental standards. They are commonly employed in industries such as pharmaceuticals, microelectronics, and environmental monitoring.
