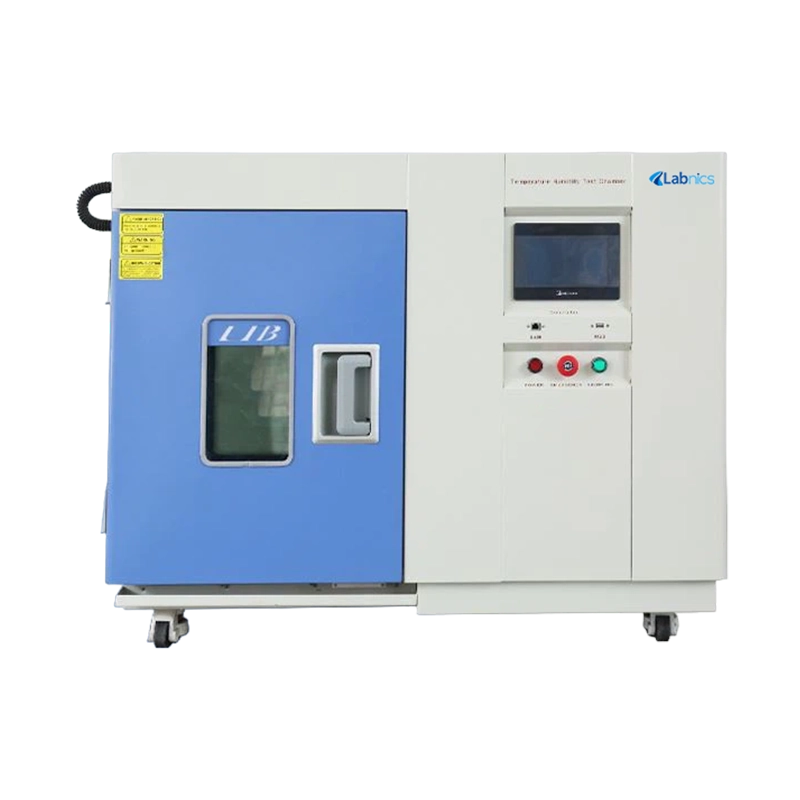

Temperature and Humidity Test Chamber NTHC-100

Temperature and Humidity Test Chamber NTHC-100 is designed for precision testing of material resilience. It tests the samples under higher temperature and humidity conditions. Crafted from corrosion-resistant stainless steel, ensuring durability and reliability. Its robust construction not only safeguards the chamber but also guarantees consistent performance over extended periods

---

$13,025.00

Buy Now Catalog

Specifications

Capacity	50 L
Temperature range	(- 20 °C) to 150 °C
Low type	I – 40 °C, II – 70 °C
Environmental condition	5 ℃ ~ + 40 ℃ ≤ 85 % RH
Humidity range	20 % - 98 % RH
Temperature fluctuation	± 0.5 °C
Temperature deviation	± 2 °C
Humidity deviation	± 2.5 % RH
Heating rate	3 °C / min
Cooling rate	1 °C / min
Temperature sensor	PTR Platinum resistance PT 100 Ω / MV A-class
Temperature resolution	± 0.001 ℃
Humidity sensor	Dry and wet bulb sensor
Humidity resolution	± 1 % RH
Internal dimension	320 × 350 × 450 mm
Overall dimension	800 × 1050 × 950 mm

Features

• Toughened double layered glass window for observation
• Independent R & D software to easily control, and monitor the chamber
• Controls humidity with capacitive humidity sensor
• LCD touch screen controller with graphic display
• Thermal insulating material resistant to high temperature and density
• Windows with anti-sweat heaters to prevent condensation and droplets
• Heat-resistant material with high temperature resistance and density
• Unit turns off after alarm for over heating
• Compressor overload switch

Applications

• Temperature and Humidity Test Chamber is widely used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage.
