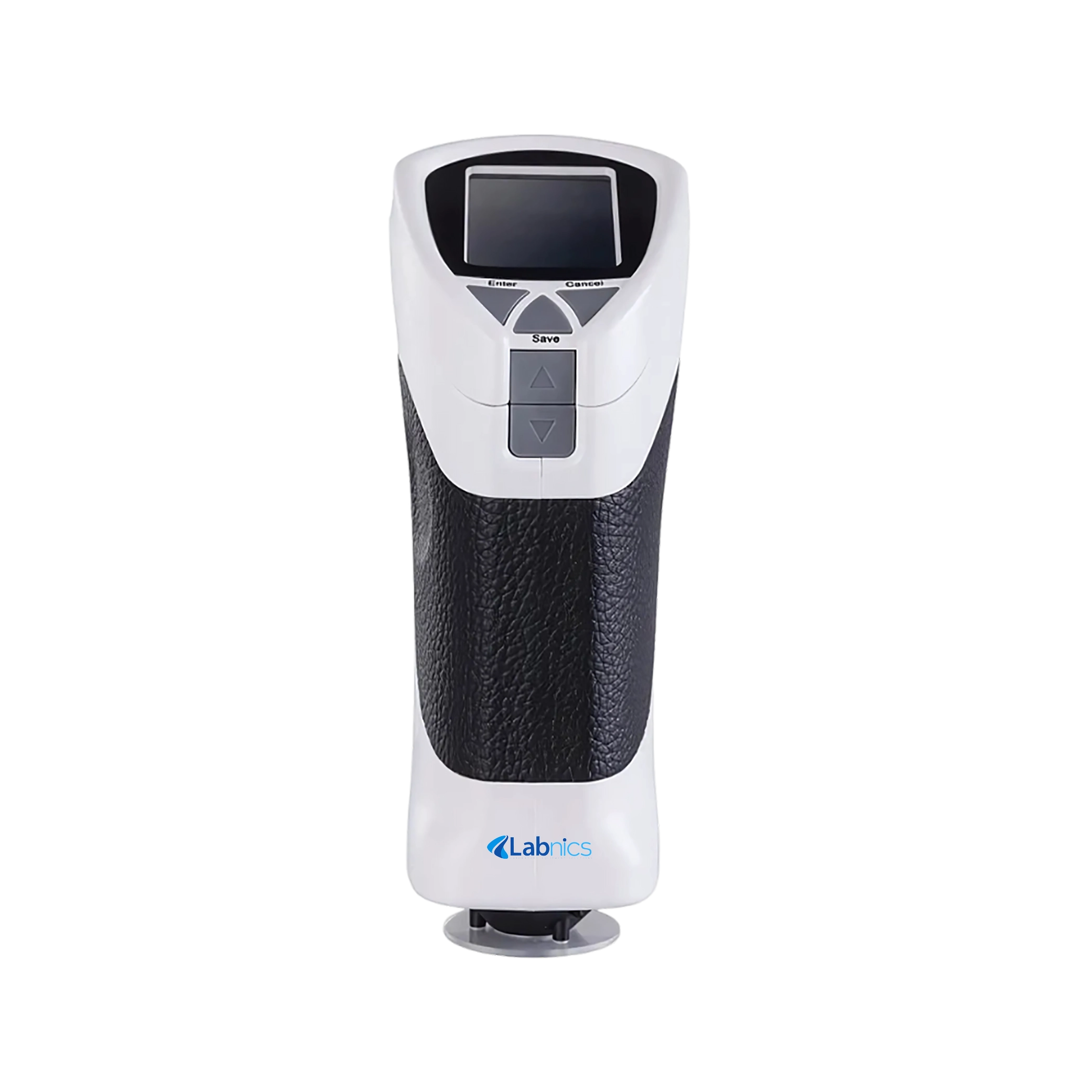

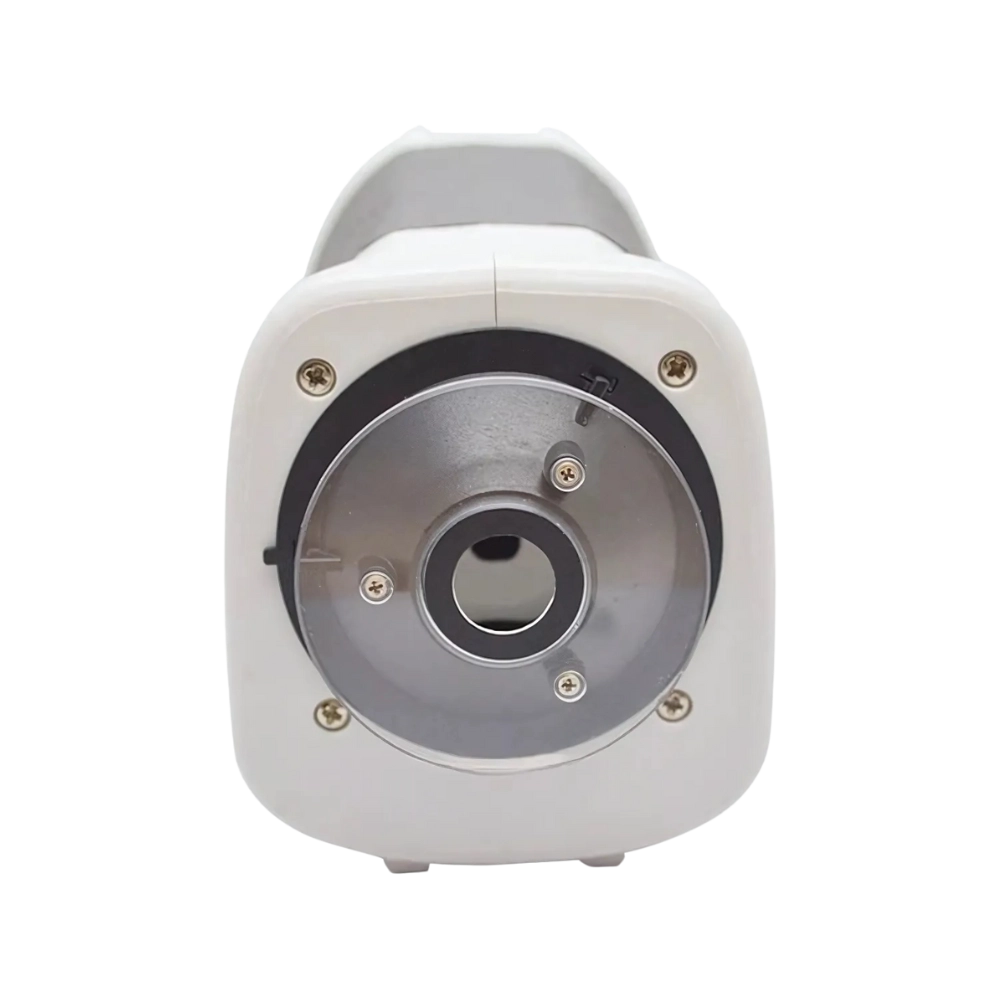

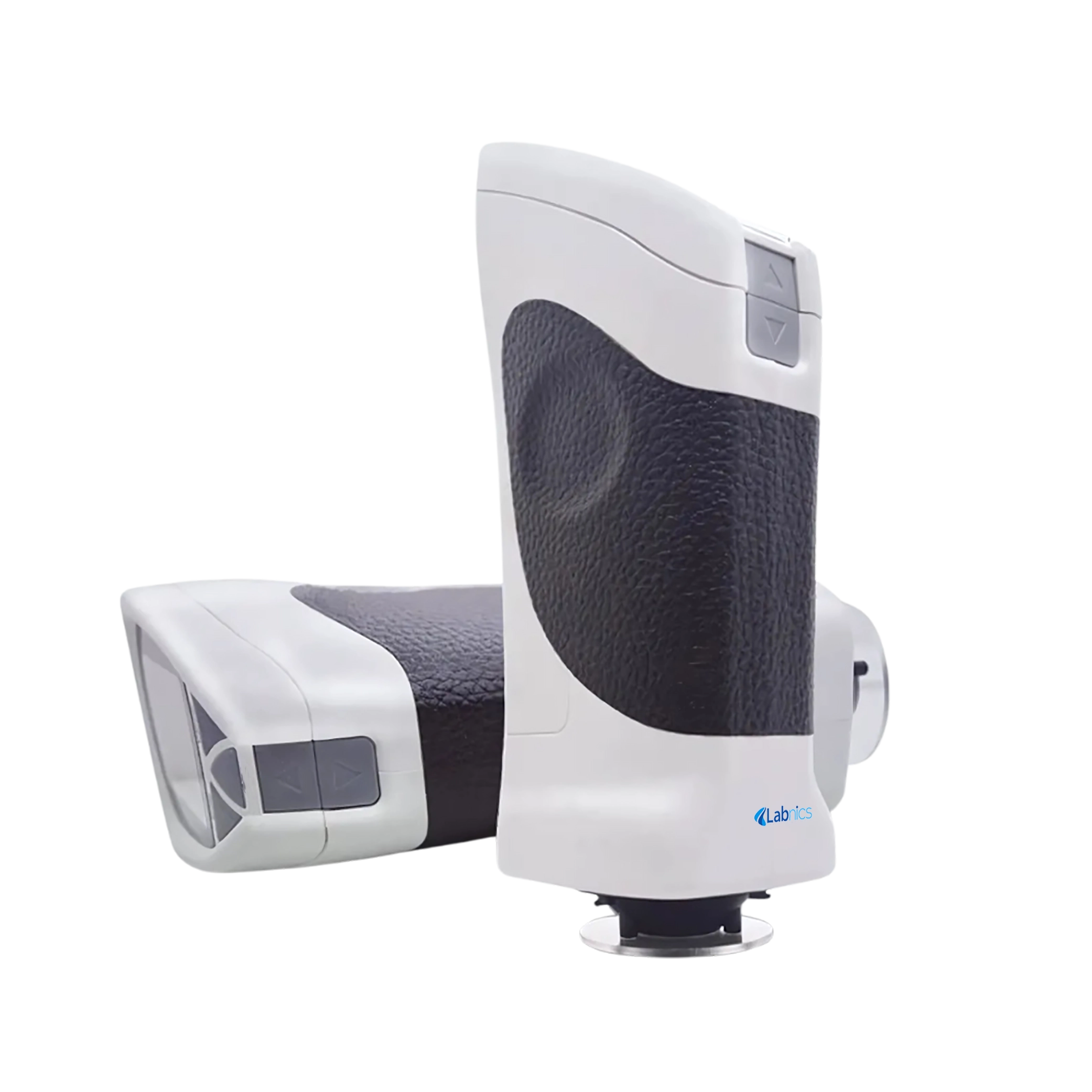

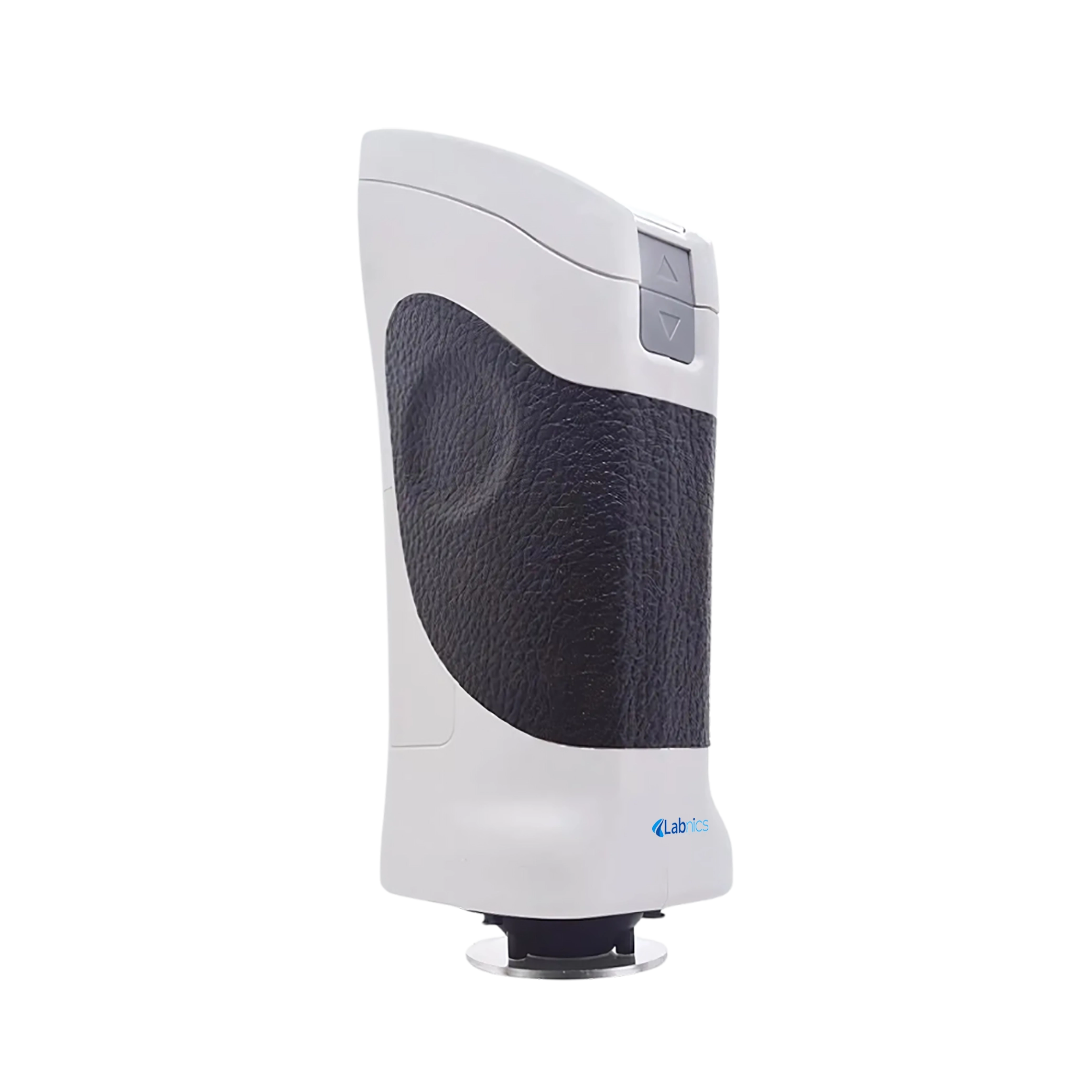

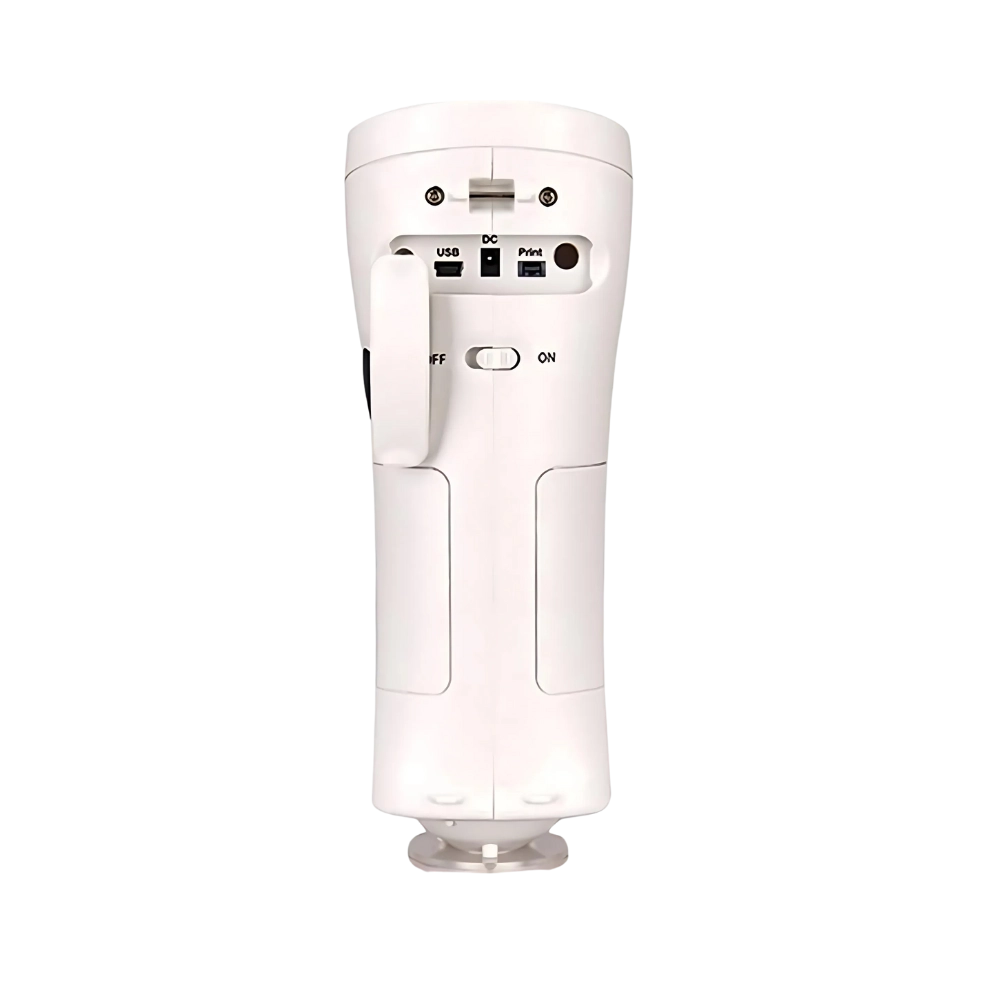

Spectral Colorimeter NSC-100
Spectral colorimeter NSC-100 with high precision is adopted with spectral measurement working theory which greatly improves the accuracy of colorimeter. Equipped with superior leather design, helps in increasing the friction in case of fingers sliding. The spectral colorimeter comes with mass storage capacity and A, C, D65, D50 as light sources for colorimetric measurement.
| Illumination | Di/8 (diffusion illumination, 8° viewing), SCI |
| Size of integrated sphere | 40 mm, alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Sensor | Sensor array |
| Wavelength | 400-700 nm |
| Spectral resolution | 10 nm |
| Measuring time | 2 s |
| Measurement caliber size | 11 mm |
| Optional measurement caliber size | 4 mm, 6 mm, 15 mm |
| Repeatability | Standard deviation ΔE*ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) |
| Observe angles | 2° and 10° |
| Light source | A,C,D50 & D65 |
| Camera attachment | Without camera |
| Display | Chromaticity value（L*a*b，L*C*h）, ΔE value, pass/fail, color tendency, average, generate test report |
| Color difference formula | ΔE*ab, ΔE*CH |
| Color space | CIE-L*a*b, L*C*h, reflectance |
| Measurement indices | Nil |
| Data storage | 100 targets and 200 samples |
| Light source lifetime | 5 years, 1.5 million times |
| Screen | Panchromatic True Color Screen |
| Interface | USB 2.0 |
| Working temperature | 5~45°C, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature | (-25 to 55°C), relative humidity 80% or below( at 35°C ),no condensation |
| Power | Rechargeable Lithium battery, 8.4V/2000 mAh, adaptor DC12V |
| Dimension | 77 × 86 × 210 mm |
| Weight | 550 g |
Spectral Colorimeter is widely used in plastic, printing, paint, ink, textile, dyeing, food, chemical and other industries for color management.
Adapter, color management software, USB cable, black/white calibration tube, protective cover, portable bag, electronic cable charts
Labnics Spectral Colorimeter provides precise color analysis using advanced spectral measurement technology. They feature multiple light sources, enabling versatile color measurements. These colorimeters include a USB interface for smooth and efficient data transfer. They are equipped with a panchromatic true color screen, providing a clear and accurate display. Our units offer advanced color measurement capabilities for precise and reliable results.
Labnics Benchtop Colorimeter provide a wide wavelength range for accurate and precise color measurement across various samples. These units are compatible with various cuvette options, making them suitable for different sample types. They offer multiple color indicators for versatile and comprehensive color analysis. They are capable of storing large amounts of data, ensuring convenient and efficient record-keeping. Our colorimeters ensure quick measurement speed for fast and efficient results.
| Wavelength range | 360 to 780nm |
| Wavelength interval | 10nm |
| Half-band width | 5nm |
| Measuring range | 0 to 200% |
