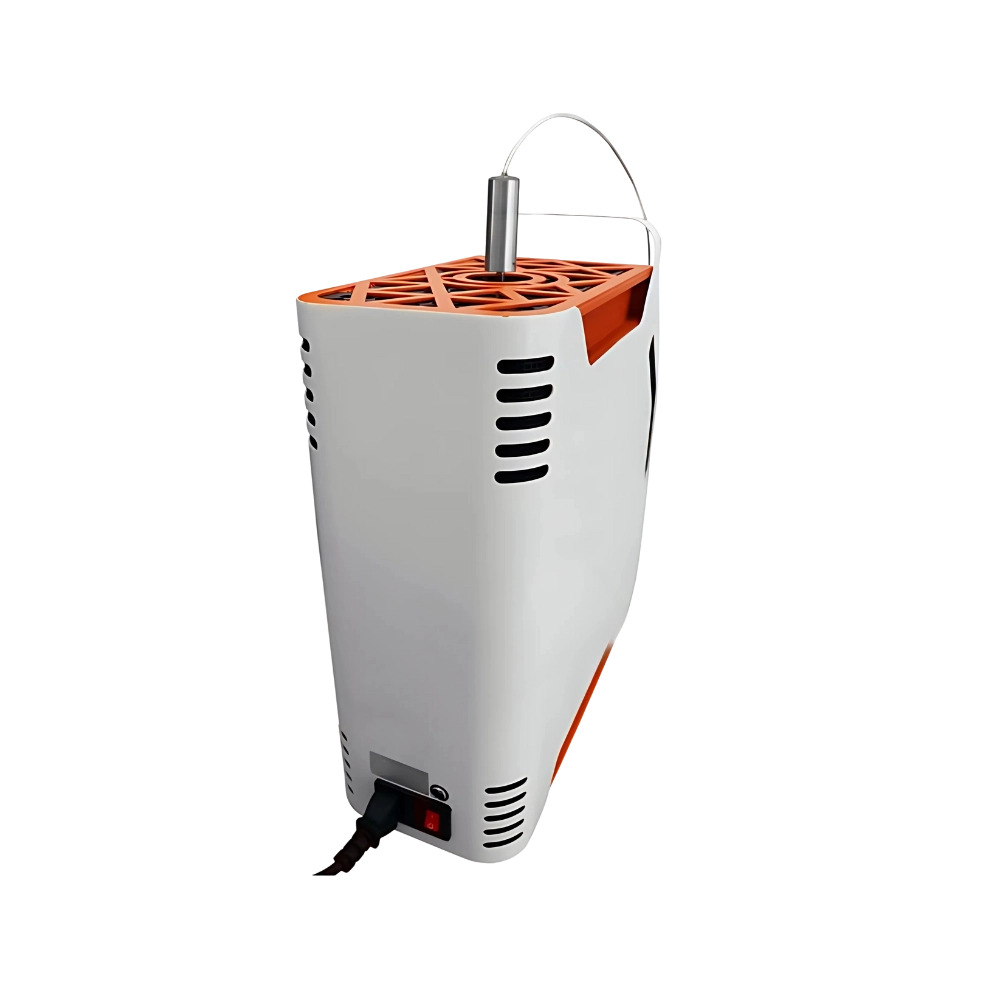

Dry Block Temperature Calibrator NDTC-101
Dry Block Temperature Calibrator NDTC-101 offers a temperature range from RT+10℃ to 700℃ for reliable calibration. It features dual-zone temperature control for uniform heating and consistent results. This calibrator supports programmable multi-point calibration for thermocouples and resistance sensors. It utilizes a platinum resistance sensor for accurate temperature measurements. Our unit is equipped with a 4.0-inch touchscreen for intuitive and efficient operation.
| Temperature Control Range | RT+10℃ to 700℃ |
| Operational Temperature | 0 to 50 ℃ |
| Display Resolution | 0.001℃ |
| Built-In Reference Temperature Control Accuracy |
± 0.15℃ at 100℃ ± 0.60℃ at 600℃ |
| External Reference Temperature Control Accuracy |
± 0.10℃ at 100℃ ± 0.20℃ at 600℃ |
| Temperature Fluctuation |
± 0.03℃ at 100℃ ± 0.07℃ at 600℃ |
| Temperature Difference Between Holes |
0.03℃ at 100℃ 0.10℃ at 600℃ |
| Heating Time | 23℃ to 700℃: 25min |
| Cooling Time | 700℃ to 100℃: 35min |
| Stabilization Time | ≤ 10min |
| Temperature Block Diameter/Insertion Depth | φ26mm/155mm |
| Default Display | 4.0-inch industrial touch screen, Resolution 800 × 480 pixel |
| Communication Method | RS485 |
| Power Consumption | 1200W |
| Power Supply | 220VAC±10%, 50Hz |
| Dimensions (H × W × D) | 360 × 180 × 270 mm |
| Weight | 9.2 kg |
Dry Block Temperature Calibrator is used for precise calibration of temperature sensors and instruments. It is employed in laboratories, industrial settings, and quality control environments.
Fuse tube (6A) × 2
RS232 communication wire
