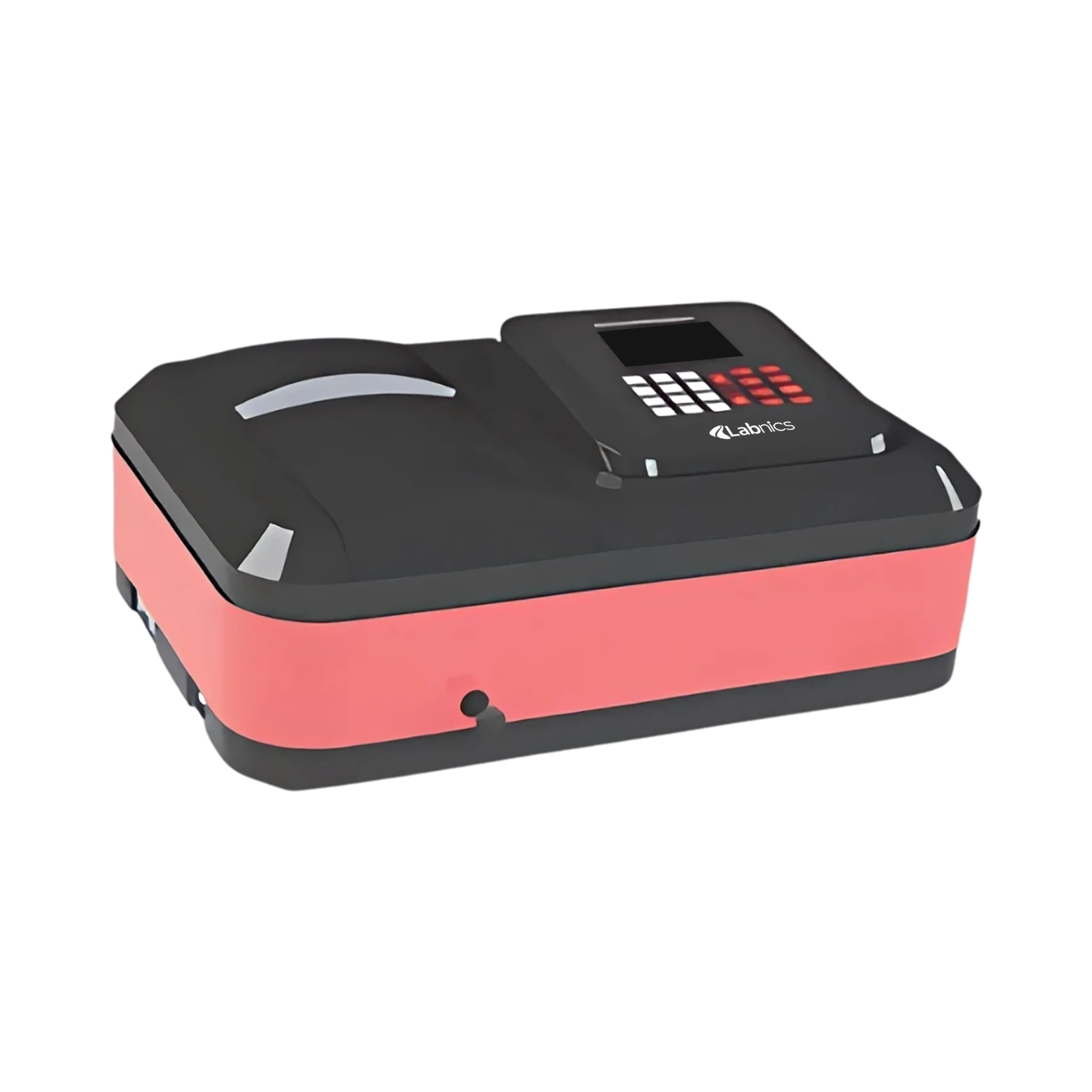

Single Beam UV-Vis Spectrophotometer NSUVS-502

Single Beam UV-Vis Spectrophotometer NSUVS-502

Single Beam UV-Vis Spectrophotometer NSUVS-502 provides accurate photometric analysis with a wavelength range of 190 to 1100 nm. It has automatic wavelength setting ensures precise measurements and user convenience. Our large LCD display offers clear data visibility during testing. This built-in memory supports automatic retention of operational data for consistent use. It is equipped with standard curve functionality for efficient data handling and precise analysis.


$2,975.00

Catalog

Specifications

Wavelength Range 190 to 1100 nm
Band Width 4 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability 0.2 nm
Photometric Accuracy ±0.5% τ
Photometric Repeatability 0.2% τ
Stray Light ≤0.05% τ
Stability 0.001 A/h at 500 nm
Photometric Mode T, A, C, E
Wavelength Setting Automatic
Photometric Display Range -0.3 to 3 A
Display Mode LCD Screen (128 × 64 Dots)
Detector Silicon Photodiode
Light Source Deuterium & Tungsten Halogen Lamp
Power Consumption 120 W
Power Supply AC 220V/50Hz or 110V/60Hz
Dimensions (W × D × H) 470 × 325 × 200 mm
Weight 10.35 Kg

Features

  • Microcomputer Control
  • High Accuracy Reading
  • Auto Filter Switching
  • Built-in Calibration Mode
  • USB Interface
  • Large Sample Holder
  • Direct Concentration Input

Applications

  • Single Beam UV-Vis Spectrophotometer NSUVS-502 is used for absorbance and concentration analysis of chemical and biological samples. It is widely utilized in<strong> </strong>food quality testing, environmental analysis, and academic laboratories for quantitative and qualitative studies.

Standard Accessories

1 cm Glass Cuvette × 4 pcs

1 cm Quartz Cuvette × 2 pcs

Dust Cover × 1 pcs

Power Line × 1 pcs

Ask Expert

FAQ for Single Beam UV-Vis Spectrophotometer NSUVS-502

1: What type of cuvettes can be used with Single Beam UV-Vis Spectrophotometer NSUVS-502?

The standard accessories include 1 cm glass and quartz cuvettes for visible and UV range analysis. The large sample holder accommodates various cuvette sizes for flexible testing needs.

2: Is Single Beam UV-Vis Spectrophotometer NSUVS-502 compatible with modern digital lab systems?

Absolutely. With a USB interface and printer connectivity, it easily integrates with lab computers for data transfer. This capability ensures seamless record-keeping and compliance in regulated environments.

3: Can Single Beam UV-Vis Spectrophotometer NSUVS-502 store multiple test results?

Yes,Single Beam UV-Vis Spectrophotometer NSUVS-502 includes built-in memory for saving multiple datasets and standard curves. This feature improves workflow efficiency and reduces the need for repetitive testing in high-throughput labs.

4: Why is the wide wavelength range important for this Single Beam UV-Vis Spectrophotometer NSUVS-502 ?

The 190 to 1100 nm wavelength range allows the device to measure both UV and visible light, making it suitable for diverse analytical applications. This flexibility enables accurate analysis of various compounds in different industries.
