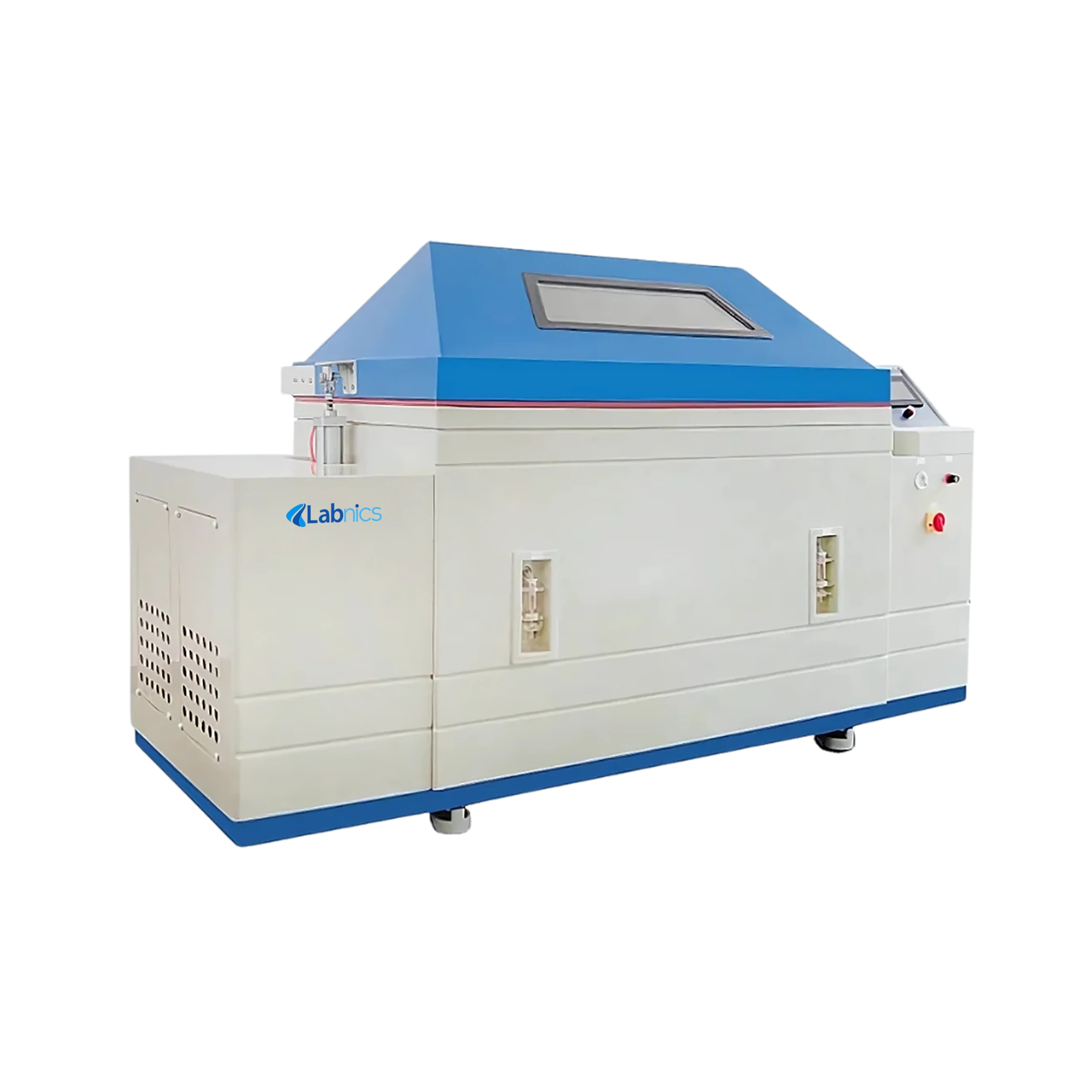

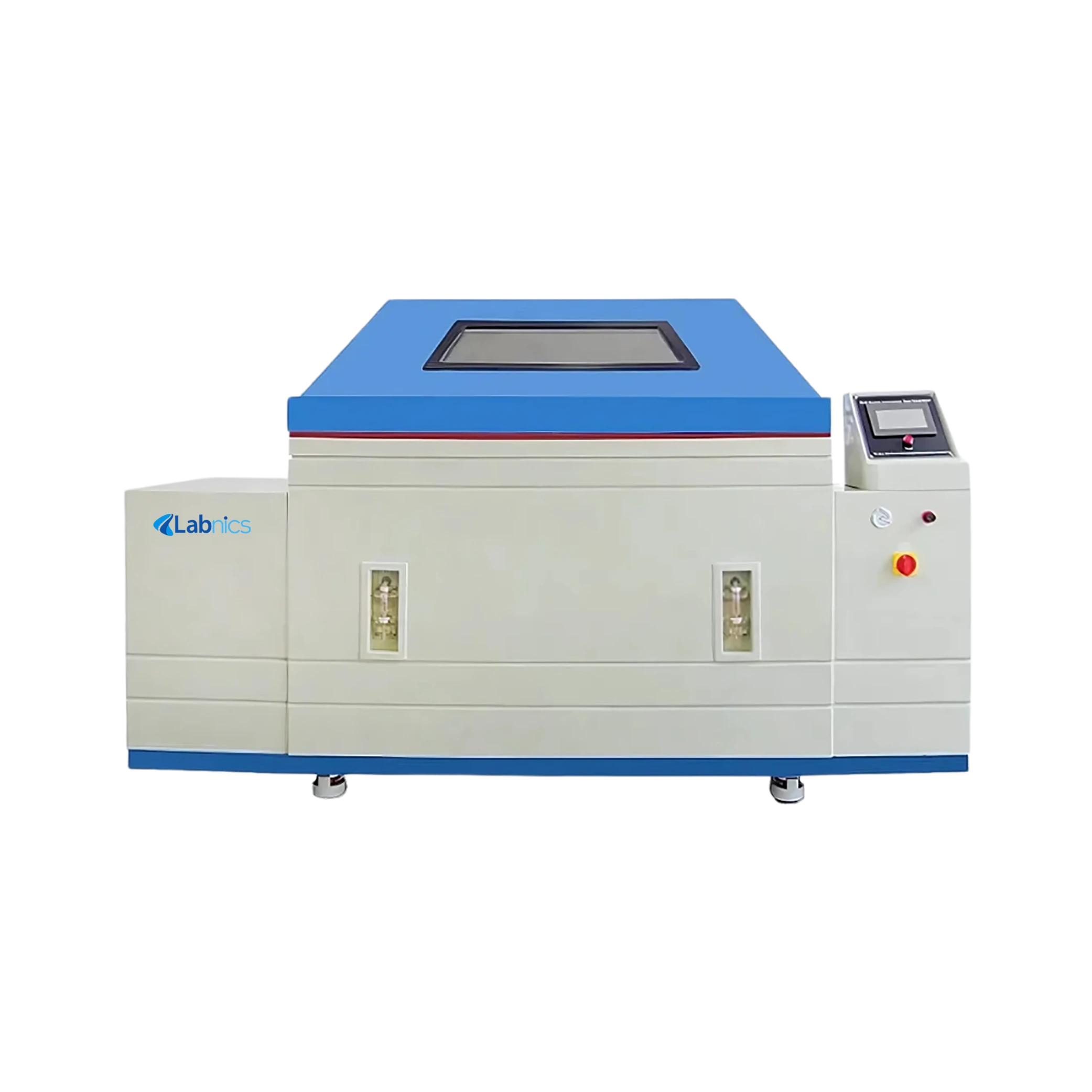

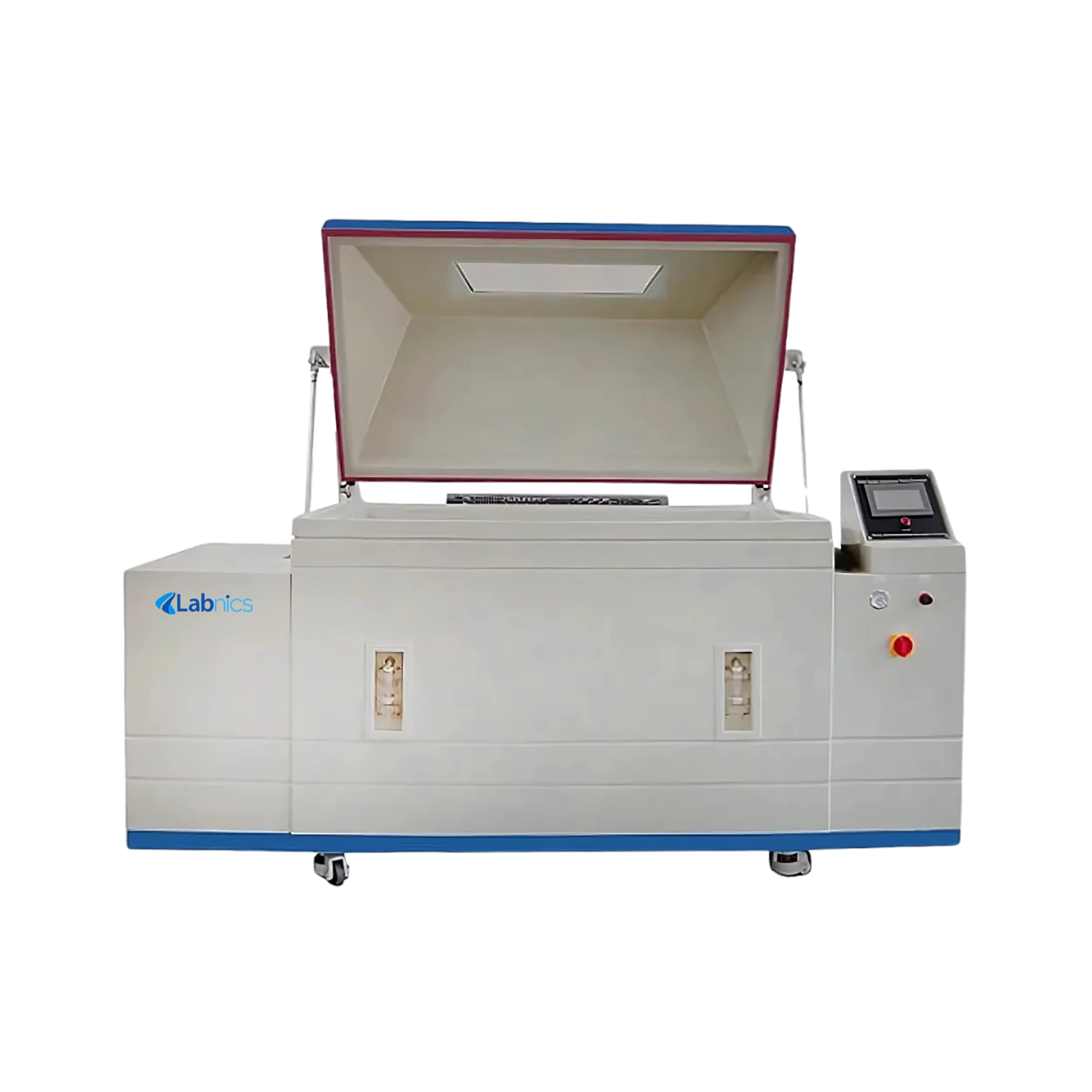

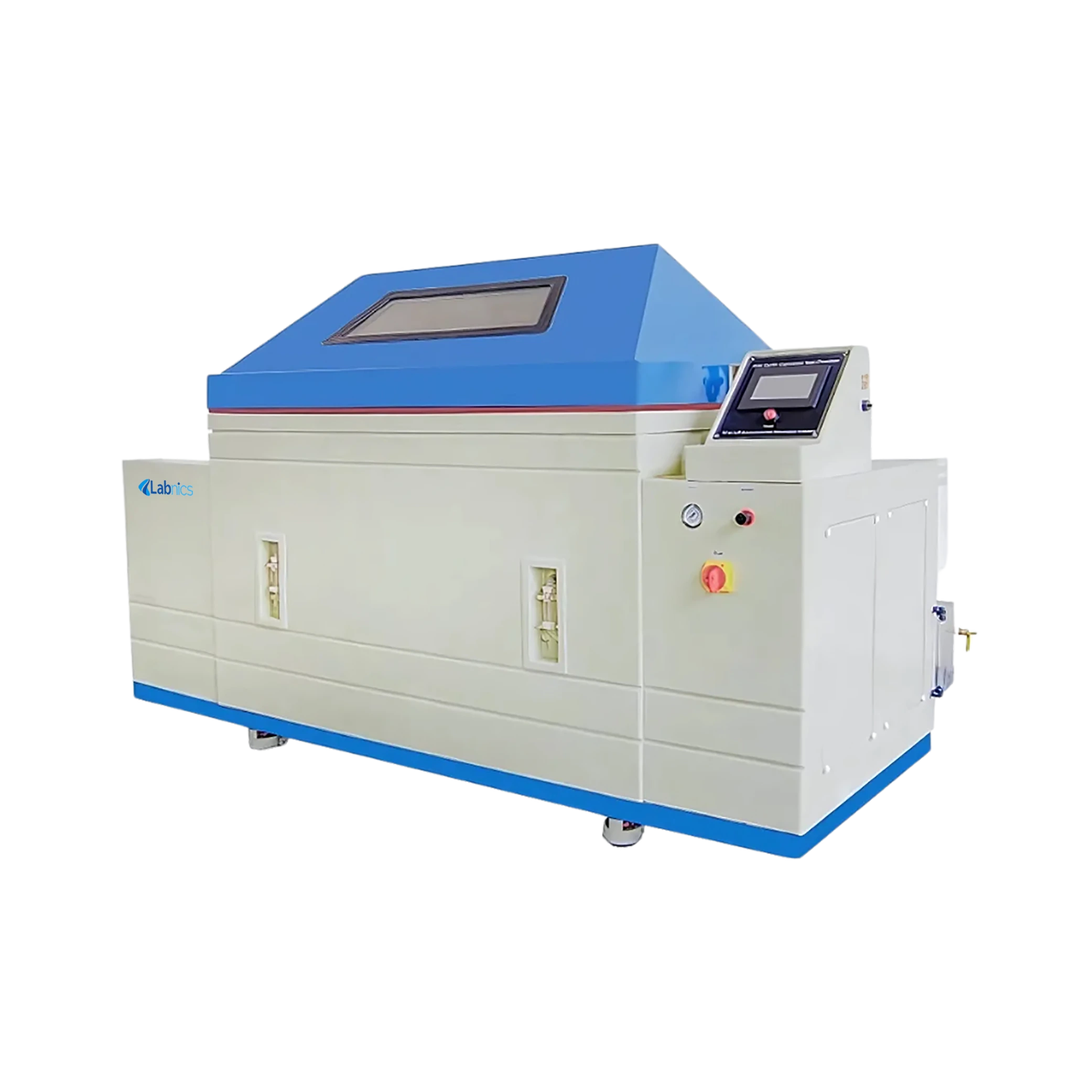

Salt Spray Test Chamber NSSTC-300 provides a temperature range of 10°C to 90°C to simulate various environmental conditions. It features a 780-liter capacity for testing multiple samples at once. The unit uses a centrifugal fan to evenly distribute temperature, humidity, and salt fog. It includes an electric humidifier to precisely control humidity by generating steam. Our chamber operates via a programmable LCD touch screen with Ethernet for easy control and monitoring.
| Chamber capacity |
780L |
| Temperature range |
10°C to 90°C |
| Temperature fluctuation |
± 0.5℃ |
| Temperature deviation |
± 2℃ |
| Humidity range |
30 to 98% RH |
| Humidity deviation |
+2%, -3% |
| Salt fog deposition |
1 to 2ml/8 cm²·h |
| Cooling system |
Mechanical compression refrigeration system |
| Humidifier |
Electric heating humidifier |
| Water supply system |
Water purification system |
| Salt fog collected |
Fog collector and fog measurement cylinder |
| Air preheating |
Saturated air barrel (31L) |
| Spraying system |
Atomizer tower and spray nozzles |
| Controller |
Programmable color LCD touch screen controller, Ethernet connection |
| Air circulation |
Centrifugal wind fan |
| Safety mechanisms |
Humidifier dry-combustion Protection, Over-temperature protection, Over-current protection, Water storage protection, Earth leakage protection |
| Material |
Glass fiber reinforced plastics |
| Standard configuration |
Round bars and V-shaped grooves |
| Internal dimension |
800×1450×680 mm |
| Overall dimension |
1350×2650×1600 mm |
FAQ for Salt Spray Test Chamber NSSTC-300
1: How does the Salt Spray Test Chamber NSSTC-300 ensure even distribution of salt fog and temperature?
The Salt Spray Test Chamber uses a centrifugal wind fan combined with an atomizer spray system to evenly circulate air and distribute salt fog. This uniform environment guarantees that all samples receive consistent exposure during testing.
2: Is the Salt Spray Test Chamber NSSTC-300 easy to operate?
Absolutely, the pneumatic cover operation and user-friendly interface simplify sample loading and control. The automated system also allows continuous operation without constant supervision, saving effort and time.
3: How fast does the Salt Spray Test Chamber recover temperature after opening the door?
The Salt Spray Test Chamber is designed for rapid temperature recovery, so after opening and closing the door, it quickly returns to the set conditions. This minimizes downtime and ensures test accuracy without long interruptions.
4: What kind of water supply does the Salt Spray Test Chamber require?
The Salt Spray Test Chamber uses a built-in water purification system to ensure only clean water is used for generating salt fog and humidity. This prevents contamination that could affect test results and reduces maintenance needs.
5: Is the Salt Spray Test Chamber NSSTC-300 energy-efficient?
The Salt Spray Test Chamber is designed with energy-efficient cooling and heating systems, reducing power consumption without compromising performance. This helps lower operating costs while maintaining reliable test conditions.
