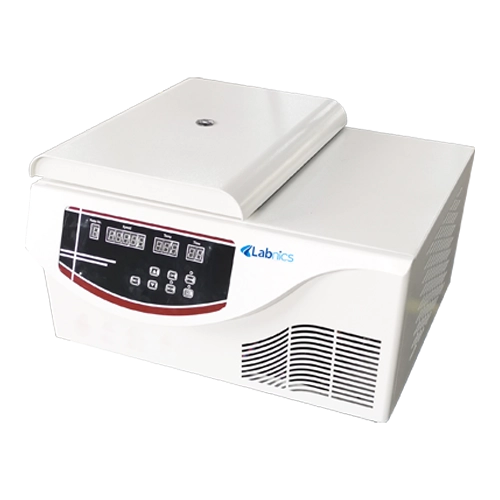

Benchtop Refrigerated Centrifuge NBRC-103

Benchtop Refrigerated Centrifuge NBRC-103 is an ergonomically designed high speed centrifugation. It allows effective and precise separation of biological components, separation of blood /plasma components in a sample under low temperature conditions for heat labile samples. The microprocessor-controlled system overcomes the adverse conditions like over speed and imbalanced rotor by automatically reducing rotation speed levels. It is featured with an electronic lid lock that ensures the safety of the equipment as well as of the user.

---

Get Quote Catalog

Specifications

Maximum RPM	22000 rpm
Maximum RCF	34700xg
Temperature control	(-20 to 40°C)
Maximum Capacity	4×750ml
Chamber diameter	ϕ280mm
Chamber height	160mm
Noise	≤ 65dB
Power supply	AC220V&110V 50-60Hz 18A
Net Weight	70kg
Gross Weight	95kg
Overall Dimensions	520×720×420mm

Features

• Brushless maintenance free DC motor
• Stainless steel structure
• Corrosion resistant rotors
• Automatic Rotor identification
• High definition to display the RCF/RPM
• Electronic lid lock for safety purpose
• Adjustable motor frequency with low noise operation

Applications

• It is widely used in research laboratories, hospitals and healthcare sectors, universities, also in biology, chemistry laboratories and clinical research studies etc.

Rotors Selection

Rotor No.	Maximum Capacity (mL)	Maximum Speed (rpm)	Maximum RCM (xg)
No.1 AR	12x1.5/2ml	22000	34700
No.2 AR	8x5ml	16500	18360
No.3 AR	12x10/15ml	15000	23120
No.4 AR	6x30ml	15000	23120
No.5 AR	6x50ml	13000	17760
No.6 SR	4x750ml	4000	3500
No.7 AR	8x50ml	8000	9800
No.8 AR	6x300ml	10000	18300
No.9 MTP-AR/SR	2x2x96 well microplate	4000	2300
