Forced Air Drying Oven NFDO-109

Forced Air Drying Oven NFDO-109

Forced Air Drying Oven NFDO-109

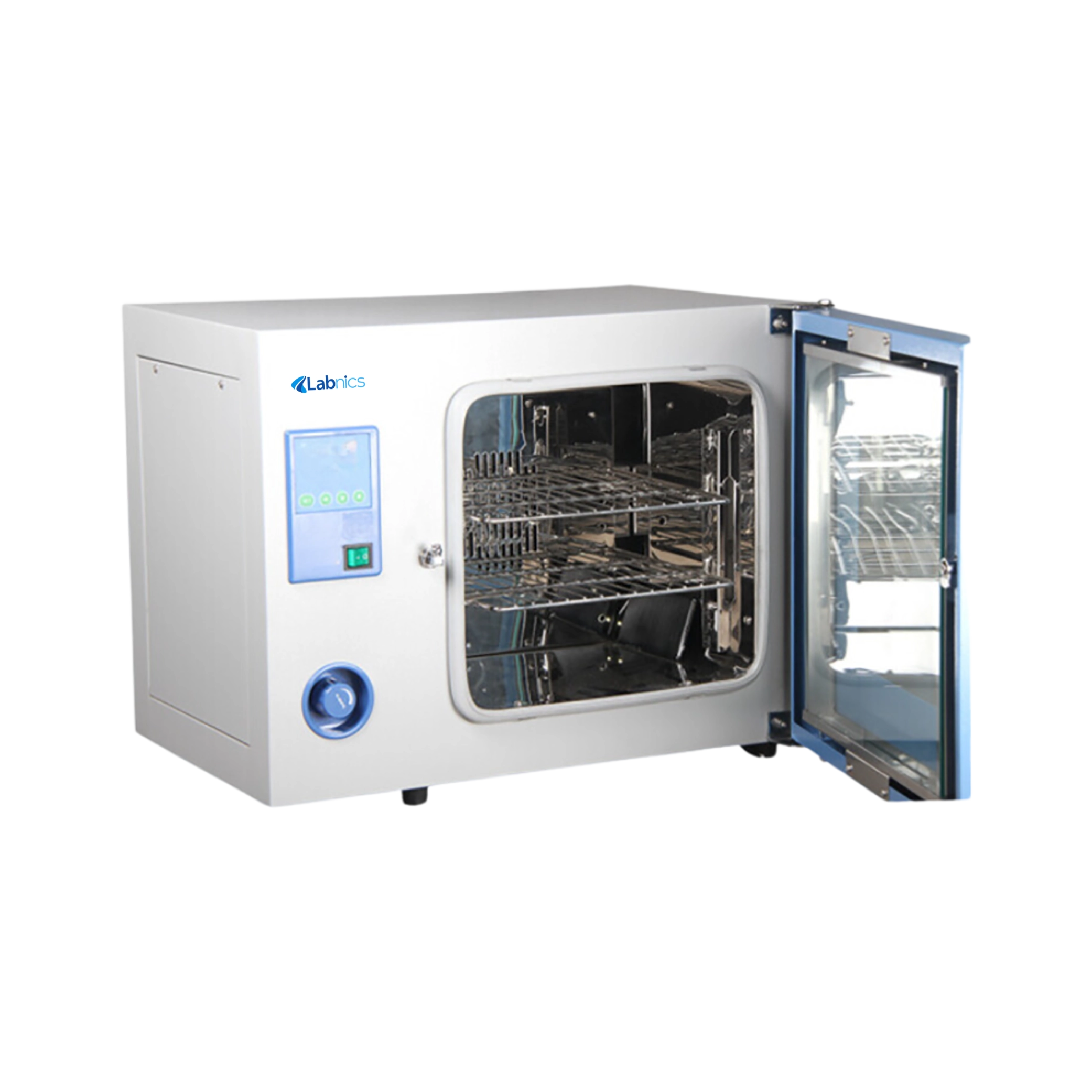

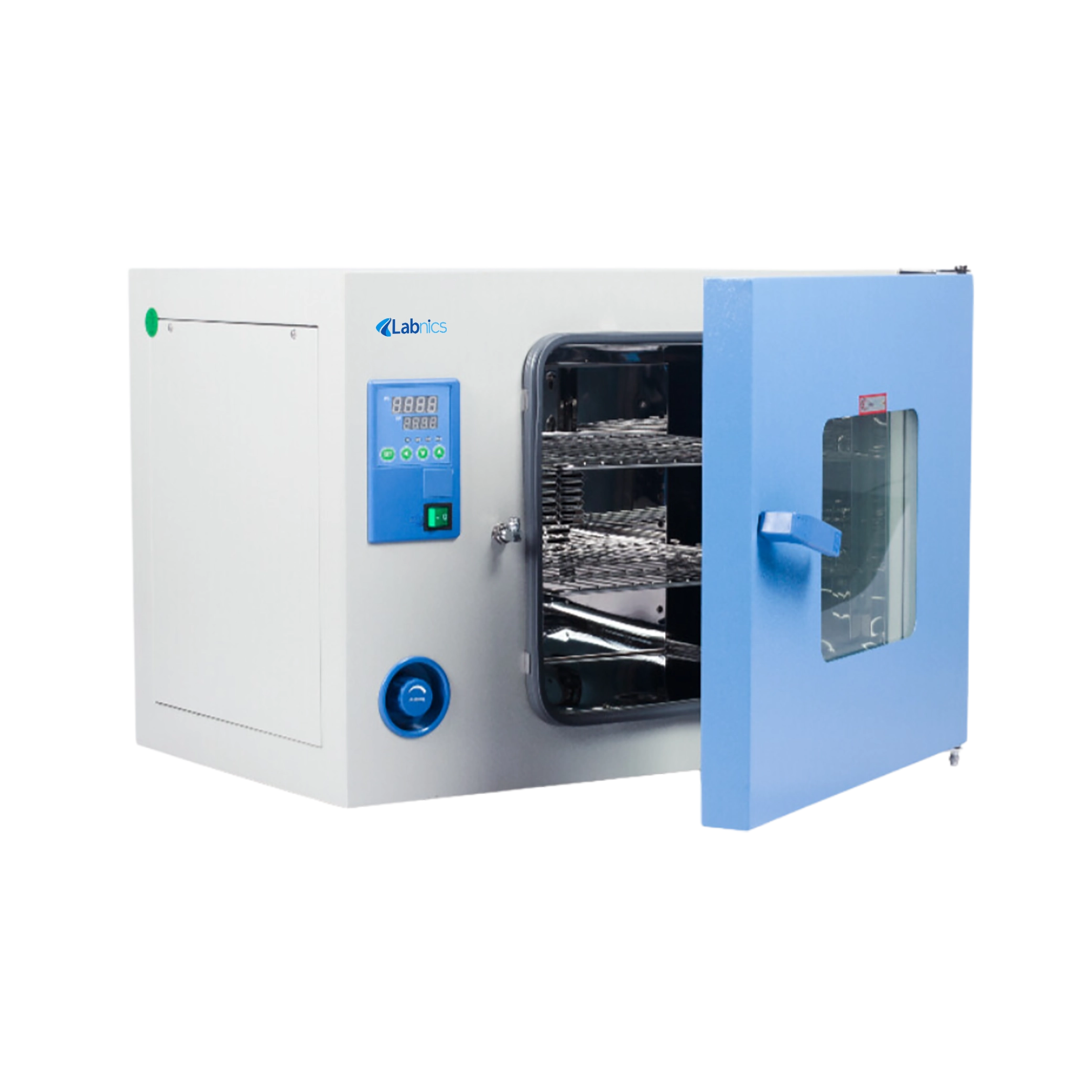

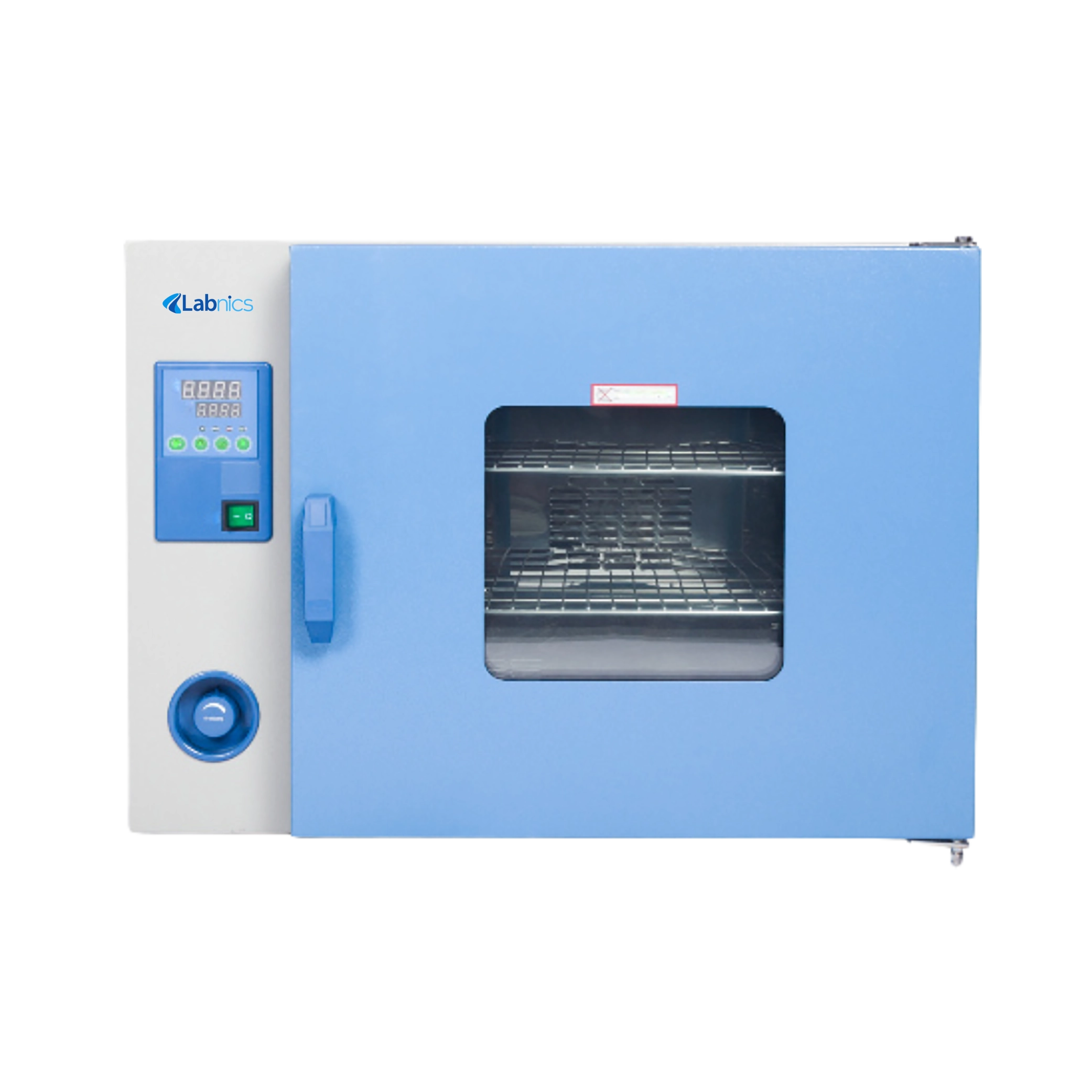

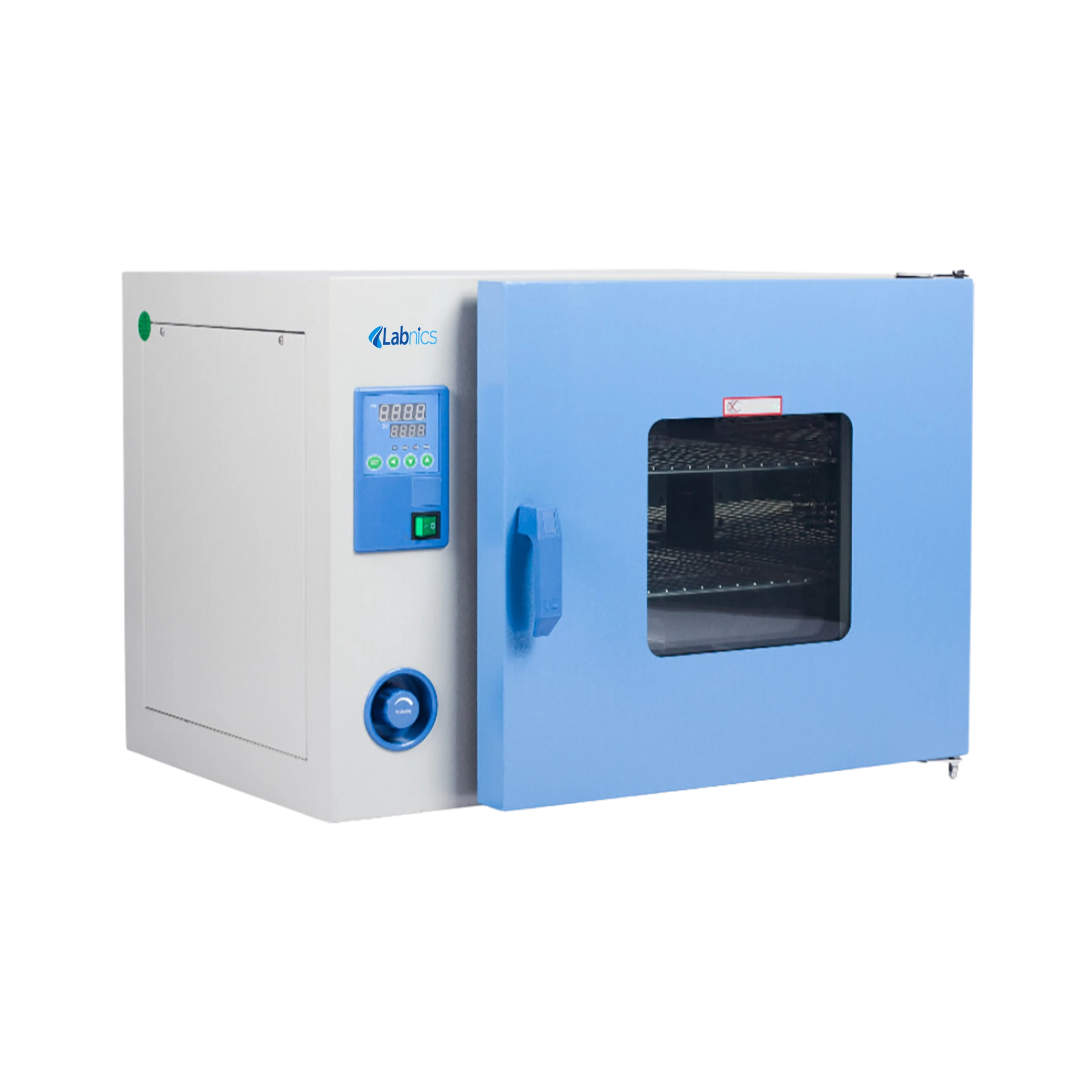

Forced Air Drying Oven NFDO-109 operates within a temperature range of RT+10°C to 250°C and holds a capacity of 136L. It is constructed from stainless steel with a mirror-polished finish for durability and easy cleaning. This oven features horizontal air circulation with dual air ducts for uniform temperature distribution. It has a front damper adjustment system for optimal gas convection within the chamber. Our unit comes with an upgraded anti-hot handle to minimize heat retention for safer handling.

Specifications
Capacity 136L
Shelves 2pcs
Temperature range RT+10°C to 250°C
Temperature stability ±1°C
Temperature uniformity ±3% (100°C)
Ambient temperature +5°C to 40°C
Display resolution 0.1°C
Timing range 0-9999mins
Control system Microprocessor PID
Internal material 304 stainless steel
Display LED
Power consumption 2050W
Power supply 220V, 50Hz
Internal dimension 550×450×550mm
External dimension 840×580×730mm
Packaging dimension 940×780×950mm
Gross weight 105kg
Features
Applications

Forced Air Drying Oven NFDO-109 is used in glassware drying, sterilizing, warming, curing, soldering, annealing, wax-melting, torrefaction, desiccation, and baking. It is widely utilized in pharmaceuticals, food processing, electronics, and manufacturing industries.

Optional Accessories

Intelligent programmable temperature controller


Independent temperature-limiting alarm
Φ25mm testing hole
Wireless alarm system
RS485 connector
USB recorder
Printer

Buy Now

Forced Air Drying oven

Labnics Forced Air Drying Oven utilize advanced microprocessor-controlled temperature systems to maintain precise and reliable drying conditions. They feature easily removable and adjustable shelves for effortless maintenance. Our ovens feature LCDs for real-time parameter controlling and display, providing clear visibility. They include an auto-diagnostic function for monitoring and error detection, ensuring consistent performance.


Labnics Commercial Microwave Oven utilize high-power microwave generators to ensure uniform heat distribution for efficient heating. They are equipped with LCD screens that display real-time operational status for convenient monitoring. Our ovens feature durable stainless steel construction, ensuring longevity and resistance to corrosion. They feature conventional round turntable plates that facilitate even heating by rotating.

Commercial Microwave Oven NCMO-100

Capacity 35L
Microwave leakage ≤ 5MW /cm<sup>2</sup>
Motor speed 5R / min
Motor power 14W

Labnics Drying Oven are equipped with advanced temperature regulation systems for accurate and consistent temperature control. They include digital displays, providing precise monitoring and maintaining stable drying conditions. Our drying ovens feature safety features such as alarms and lockable doors, ensuring secure operation. They include a self-diagnostic function, enabling real-time adjustment of settings for enhanced performance and reliability.

Drying Oven NDO-100
Internal material Stainless Steel
Volume 10L
Interior Dimensions (W × L × H) 200 × 200 × 250 mm
Exterior Dimensions (W × L × H) 490 × 320 × 420 mm
Drying Oven NDO-101
Internal material Stainless Steel
Volume 15L
Interior Dimensions (W × L × H) 250 × 250 × 250 mm
Exterior Dimensions (W × L × H) 530 × 370 × 420 mm

Drying Oven NDO-102

Internal material Stainless Steel
Volume 20L
Interior Dimensions (W × L × H) 300 × 250 × 300 mm
Exterior Dimensions (W × L × H) 580 × 370 × 470 mm

Drying Oven NDO-103

Internal material Stainless Steel
Volume 25L
Interior Dimensions (W × L × H) 300 × 280 × 300 mm
Exterior Dimensions (W × L × H) 580 × 400 × 470 mm

Drying Oven NDO-104

Internal material Stainless Steel
Volume 30L
Interior Dimensions (W × L × H) 300 × 300 × 350 mm
Exterior Dimensions (W × L × H) 580 × 420 × 520 mm
Drying Oven NDO-105
Internal material Stainless Steel
Volume 42L
Interior Dimensions (W × L × H) 350 × 350 × 350 mm
Exterior Dimensions (W × L × H) 630 × 470 × 520 mm
Drying Oven NDO-106
Internal material Stainless Steel
Volume 50L
Interior Dimensions (W × L × H) 350 × 350 × 410 mm
Exterior Dimensions (W × L × H) 630 × 470 × 580 mm

Drying Oven NDO-107

Internal material Stainless Steel
Volume 70L
Interior Dimensions (W × L × H) 350 × 450 × 450 mm
Exterior Dimensions (W × L × H) 630 × 570 × 620 mm

Drying Oven NDO-108

Internal material Stainless Steel
Volume 80L
Interior Dimensions (W × L × H) 400 × 450 × 450 mm
Exterior Dimensions (W × L × H) 680 × 570 × 620 mm

Drying Oven NDO-109

Internal material Stainless Steel
Volume 100L
Interior Dimensions (W × L × H) 450 × 450 × 500 mm
Exterior Dimensions (W × L × H) 730 × 570 × 670 mm
Drying Oven NDO-110
Internal material Stainless Steel
Volume 136L
Interior Dimensions (W × L × H) 550 × 450 × 550 mm
Exterior Dimensions (W × L × H) 830 × 570 × 720 mm
Drying Oven NDO-111
Internal material Stainless Steel
Volume 225L
Interior Dimensions (W × L × H) 600 × 500 × 750 mm
Exterior Dimensions (W × L × H) 850 × 620 × 920 mm

Drying Oven NDO-202

Capacity 36 L
Temperature range Ambient ~ 280 ℃
Internal dimension (W × D × H) 340 × 340 × 320 mm
External dimension (W × D × H) 620 × 530 × 490 mm

Drying Oven NDO-203

Capacity 80 L
Temperature range Ambient ~ 280 ℃
Internal dimension (W × D × H) 450 × 400 × 450 mm
External dimension (W × D × H) 740 × 618 × 630 mm

Drying Oven NDO-207

Capacity 136 L
Temperature range Ambient ~ 300 ℃
Internal dimension (W × D × H) 550 × 450 × 550 mm
External dimension (W × D × H) 730 × 840 × 670 mm
Drying Oven NDO-208
Capacity 225 L
Temperature range Ambient ~ 250 ℃
Internal dimension (W × D × H) 600 × 500 × 750 mm
External dimension (W × D × H) 710 × 1000 × 1000 mm
Drying Oven NDO-204
Capacity 45L
Temperature Range RT+10℃ to 300℃
Temperature Precision 0.1℃
Temperature Uniformity ≤Max Temp.±2.5%

Labnics Vacuum Drying Oven offer a broad temperature range, ensuring versatility for a wide range of heating and drying needs. They include overheat and overload protection features for enhanced safety and durability. Our units facilitate easy connectivity for rapid data processing and analysis. They are equipped with digital displays for precise monitoring of temperature and settings. These ovens are crafted from stainless steel for durability and easy cleaning.

Vacuum Drying Oven NVDO-100

Temperature Range RT + 5 to 250 ˚C
Temperature Fluctuation ± 1 ˚C
Vacuum Pressure < 133 Pa
Display Resolution 0.1 ˚C

Vacuum Drying Oven NVDO-101

Temperature Range RT + 5 to 200 ˚C
Temperature Fluctuation ± 1 ˚C
Vacuum Pressure < 133 Pa
Display Resolution 0.1 ˚C
Vacuum Drying Oven NVDO-102
Temperature Range RT+20 to 200℃
Ambient Temperature +5 to 40℃
Temperature Resolution 0.1℃
Temperature Stability ± 1 ˚C
Vacuum Drying Oven NVDO-103
Temperature Range RT+10 to 300°C
Minimum precision 0.1℃
Temperature fluctuation ±8℃
Temperature change 1.7℃

Vacuum Drying Oven NVDO-200

Capacity 10L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Vacuum Drying Oven NVDO-201

Capacity 24L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Vacuum Drying Oven NVDO-202

Capacity 30L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C
Vacuum Drying Oven NVDO-203
Capacity 50L
Shelves 6pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C
Vacuum Drying Oven NVDO-204
Capacity 90L
Shelves 6pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Vacuum Drying Oven NVDO-205

Capacity 125L
Shelves 6pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Vacuum Drying Oven NVDO-206

Capacity 216L
Shelves 6pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Vacuum Drying Oven NVDO-207

Capacity 50L
Shelves 2pcs
Temperature range RT+10°C to 65°C
Temperature stability ±1°C
Vacuum Drying Oven NVDO-208
Capacity 90L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C
Vacuum Drying Oven NVDO-209
Capacity 50L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Temperature stability ±1°C

Labnics Gravity Convection Oven ensure uniform results with even heat regulation, providing reliable performance. These ovens offer enhanced efficiency through a timing function for optimal workflow. They are equipped with intuitive controls, ensuring effortless and user-friendly operation. They are crafted from 304 stainless steel for durability and corrosion resistance. Our units facilitate secure and reliable data transmission, ensuring efficient operation.

Gravity Convection Oven NGCO-100

Chamber Volume 56 L
Temperature Range RT + 10 to 200°C
Ambient temperature + 5 to 35 ℃
Display Resolution 0.1 °C

Labnics Natural Convection Oven feature adjustable shelves that enhance versatility in accommodating a wide range of sample sizes. They are integrated with PID controllers for precise temperature regulation and enhanced operational stability. These ovens are built from stainless steel ensuring longevity and corrosion resistance. They include over-temperature alarm system to ensure safe operation. Our ovens are equipped with intuitive interfaces for easy monitoring of parameters.

Natural Convection Oven NTCO-100
Temperature Range RT+10°C to 200°C
Ambient Temperature +5°C to 35°C
Temperature Stability ±1°C
Resolution 0.1°C
Natural Convection Oven NTCO-101
Capacity 27L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Ambient temperature +5°C to 35°C

Natural Convection Oven NTCO-102

Capacity 56L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Ambient temperature +5°C to 35°C

Natural Convection Oven NTCO-103

Capacity 96L
Shelves 2pcs
Temperature range RT+10°C to 200°C
Ambient temperature +5°C to 35°C

Natural Convection Oven NTCO-104

Capacity 140L
Shelves 3pcs
Temperature range RT+10°C to 200°C
Ambient temperature +5°C to 35°C

Microwave Chemical Reactor NMOR-100
Maximum Operating Temperature ≤ 250℃
Microwave Emission Mode Continuous wave (Steady output )
Microwave Frequency 2450 MHz ± 15 Hz
Temperature Measurement Technique Contact temperature sensor

Labnics Blast Drying Ovens are equipped with a microprocessor-based PID controller for accurate and consistent temperature regulation. They feature a tempered glass window for clear observation of the drying process. These units feature a durable stainless-steel interior, ensuring stable performance and longevity. They offer an advanced air circulation system that ensures uniform heat distribution. Our ovens feature reliable sealing to maintain a stable internal environment.

Blast Drying Oven NBDO-100

Capacity 40 L
Shelves 1 pc
Temperature Range RT+10 to 250°C
Temperature Stability ±1.0°C

Blast Drying Oven NBDO-101

Capacity 72 L
Shelves 2 pcs
Temperature Range RT+10 to 250°C
Temperature Stability ±1.0°C
Blast Drying Oven NBDO-102
Capacity 151 L
Shelves 2 pcs
Temperature Range RT+10 to 250°C
Temperature Stability ±1.0°C
Blast Drying Oven NBDO-103
Capacity 216 L
Shelves 2 pcs
Temperature Range RT+10 to 250°C
Temperature Stability ±1.0°C

Blast Drying Oven NBDO-104

Capacity 393 L
Shelves 3 pcs
Temperature Range RT+10 to 250°C
Temperature Stability ±1.0°C

Blast Drying Oven NBDO-105

Capacity 672 L
Shelves 4 pcs
Temperature Range RT+10 to 300°C
Temperature Stability ±1.0°C

Blast Drying Oven NBDO-106

Capacity 960 L
Shelves 5 pcs
Temperature Range RT+10 to 300°C
Temperature Stability ±1.0°C
