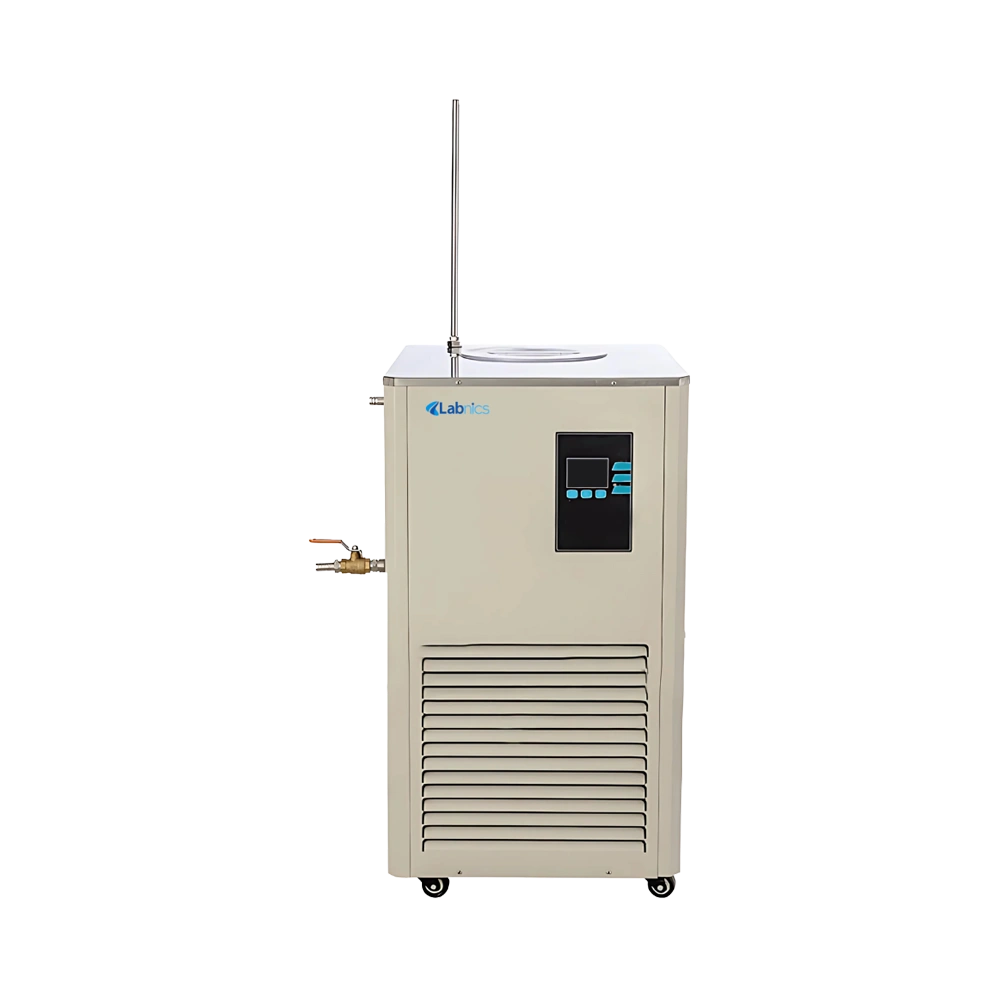

Recirculating Chiller NRC-203 is designed to support a wide temperature range from -40°C to RT, making it suitable for various applications. It maintains high temperature accuracy with a precision of ±0.1°C, ensuring thermal control. This unit circulates coolant at adjustable flow rates between 20 to 40 liters per minute. It uses R22 as the refrigerant, delivering reliable cooling performance. Our chiller includes a Φ16mm outer circulation interface for seamless system integration.
$3,263.00
| Tank capacity | About 14L |
| Temperature range | -40°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 6.9㎡ |
| Air volume | 1030m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ10Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1.5P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 1103W |
| Cooling capacity | 3486W |
| Total power consumption | 1293W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×200 mm |
| Product dimension | 490×570×(730+500) mm |
| Packaging dimension | 620×500×930 mm |
| Weight | 65 kg |
| Packaging weight | 82 kg |
Digital temperature display
Microcomputer-based control
Safety protection system
High air volume circulation
Closed-loop circulation system
Durable compressor unit

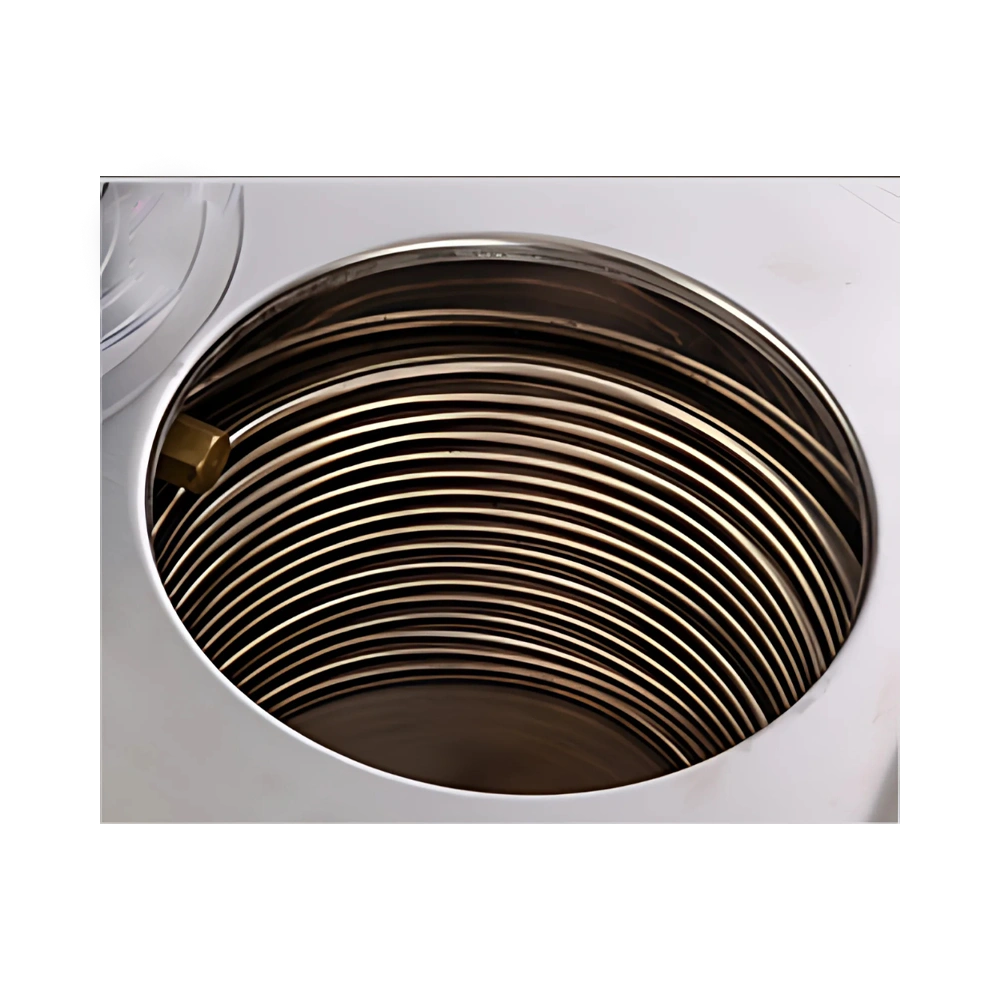

Nickel-plated coil
Recirculating Chiller NRC-203 is used to provide precise and consistent low-temperature cooling for sensitive laboratory processes and equipment. It is commonly applied in chemical synthesis, pharmaceutical research, biotechnology labs, and with devices like rotary evaporators and freeze dryers.
Silicon Hose with Black Insulation Cover
Ball Valve
1: Is the Recirculating Chiller NRC-203 easy to operate?
Yes, our Recirculating Chiller comes with a digital temperature display and microcomputer control, making operation straightforward. Temperature settings and monitoring are both simple and precise.
2: How does the Recirculating Chiller NRC-203 ensure safety during operation?
The Recirculating Chiller is equipped with multiple safety features, including overcurrent protection, overheating prevention, and delay start. These help protect both the unit and connected instruments.
3: Can the Recirculating Chiller handle challenging environmental conditions?
Yes, the Recirculating Chiller is designed to operate reliably even under poor water quality, low water pressure, or high ambient temperatures. This makes it dependable in varied lab settings.
4: How often should the Recirculating Chiller NRC-203 be cleaned?
It is recommended to clean the exterior and check internal components every 1 to 2 months, depending on usage conditions. Regular cleaning helps maintain cooling efficiency and prolongs equipment life.
5: Does the coolant need to be replaced regularly?
Yes, the coolant should be checked periodically and replaced if contaminated or degraded. Using clean coolant ensures proper circulation and prevents internal corrosion or blockages.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
