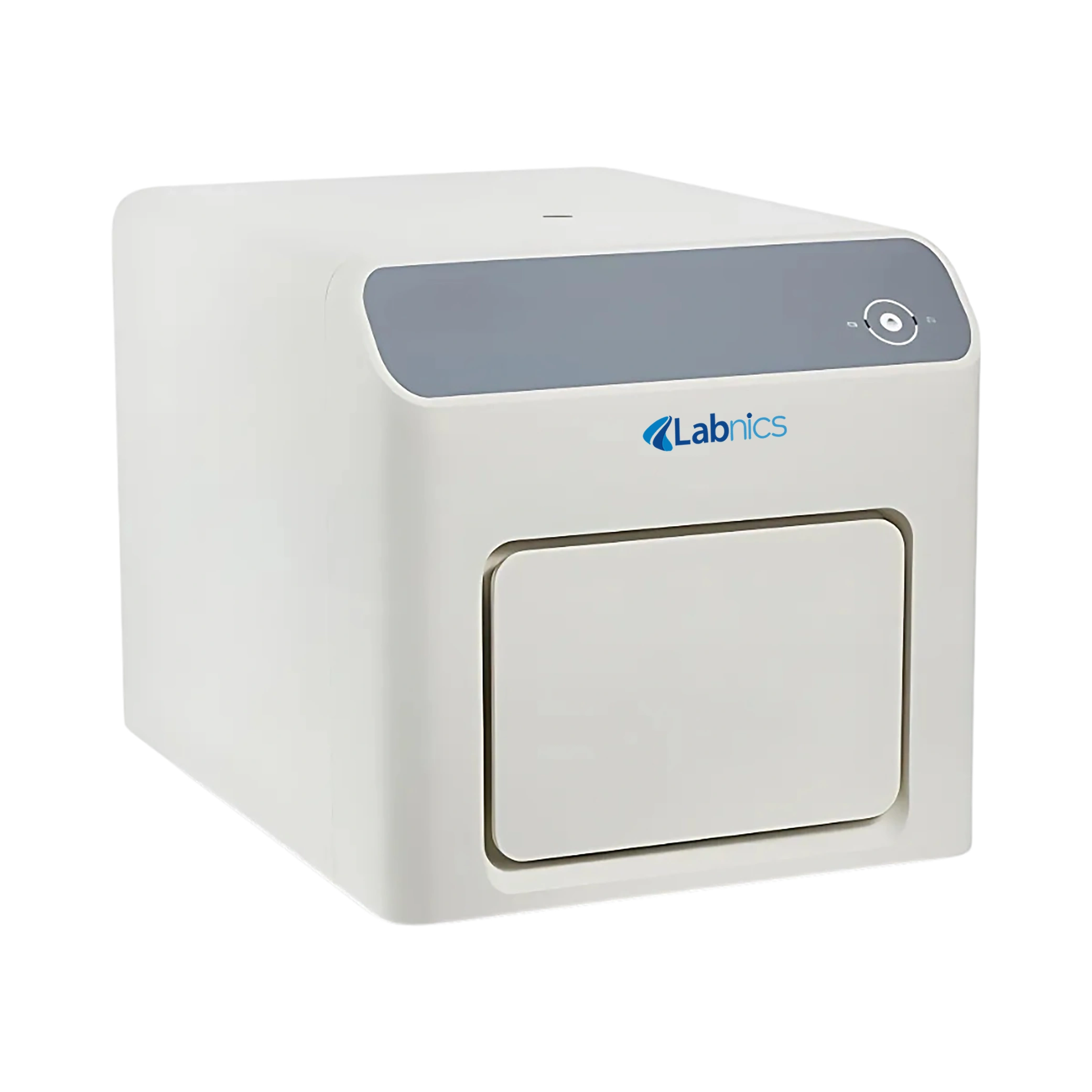

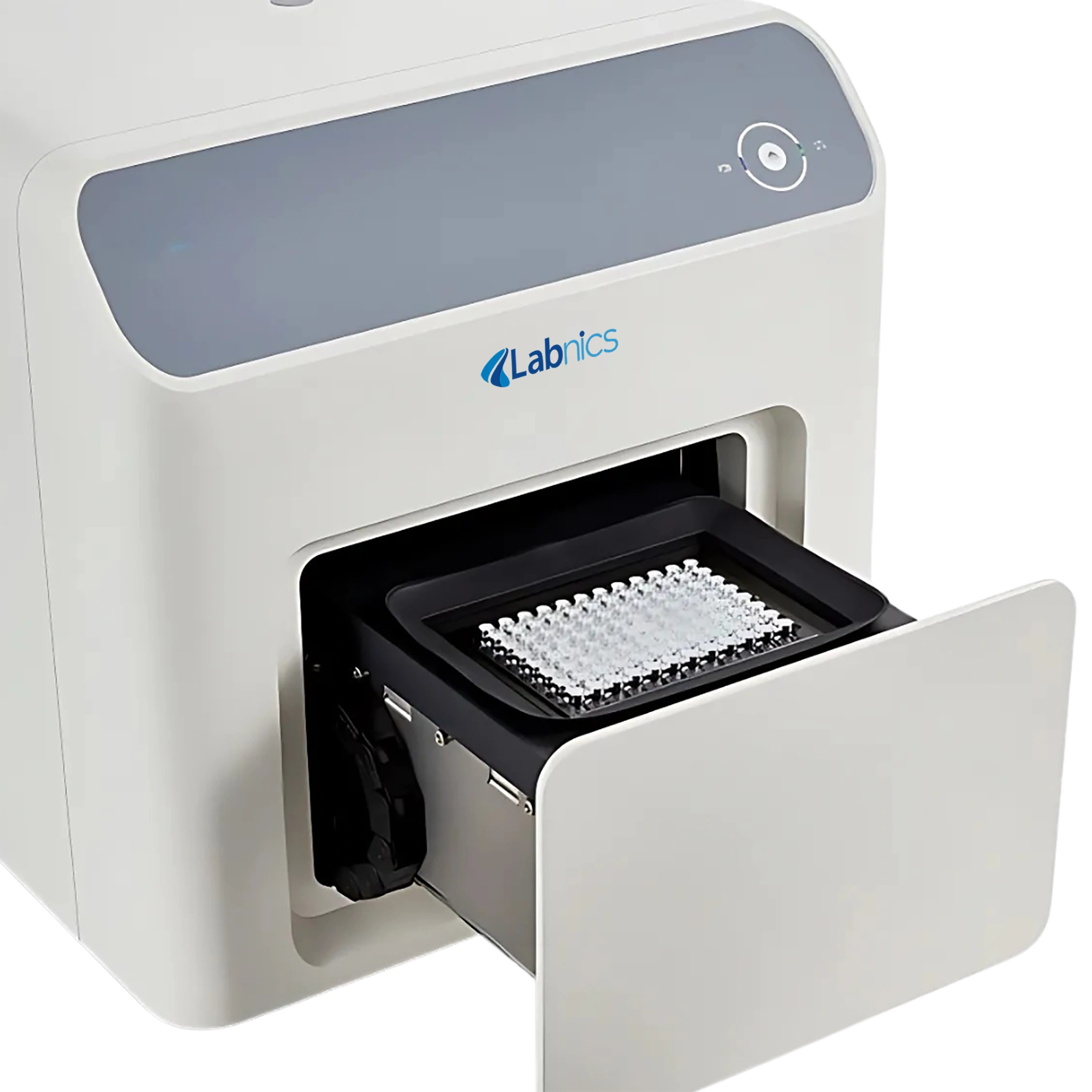

Real Time PCR NRTP-401 supports an excitation wavelength range of 455 to 650 nm and an emission range of 510 to 750 nm. It provides multi-melting curve analysis to enhance the identification of target sequences. This unit offers fast and precise thermal cycling for efficient amplification. It supports data export for streamlined analysis and documentation. Our PCR features a compact design for easy integration into limited laboratory spaces.
$22,750.00
| Sample Capacity | 8 × 0.1 mL PCR strip × 12 96 × 0.1 mL individual tube 0.1 mL PCR Plate |
| Sample Volume | 10 to 50 µL |
| Fluorescence Detection Channels | 5 |
| Thermal Control Method | Peltier |
| Maximum Heating Rate | 6.0° C/s |
| Temperature Range | 4 to 100 °C |
| Temperature Accuracy | ± 0.2°C |
| Temperature Uniformity | ± 0.2°C at 60 °C ± 0.2°C at 95 °C |
| Excitation Light | 5 pcs high-efficiency single colour LEDs |
| Detector | SiPMT |
| Detection Method | Time resolved real-time scanning |
| Wavelength Range | Excitation: 455 to 650 nm Emission: 510 to 750 nm |
| Supported Dyes | FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ, Cy5.5 |
| Multiplexing | up to 5 targets |
| Sensitivity | 1 copy gene |
| Resolution | 1.33-fold copies difference in single–plex reaction |
| Dynamic Range | 10 orders of magnitude |
Minimal maintenance
High detection resolution
Efficient silicon PMT
Low noise operation
Uniform CT scanning
Our Real Time PCR is used for gene expression analysis, mutation detection, SNP genotyping, viral load monitoring, and precise quantification of nucleic acids with high specificity and reproducibility.
Labnics Real Time PCR use fluorescent systems for accurate real-time DNA quantification. They support multiplex detection for simultaneous amplification of multiple targets. These units offer multi-melting curve analysis for reliable result confirmation. They come with built-in software for streamlined data analysis and reporting. Our Real-Time PCR includes data export capability for efficient result management and analysis.
