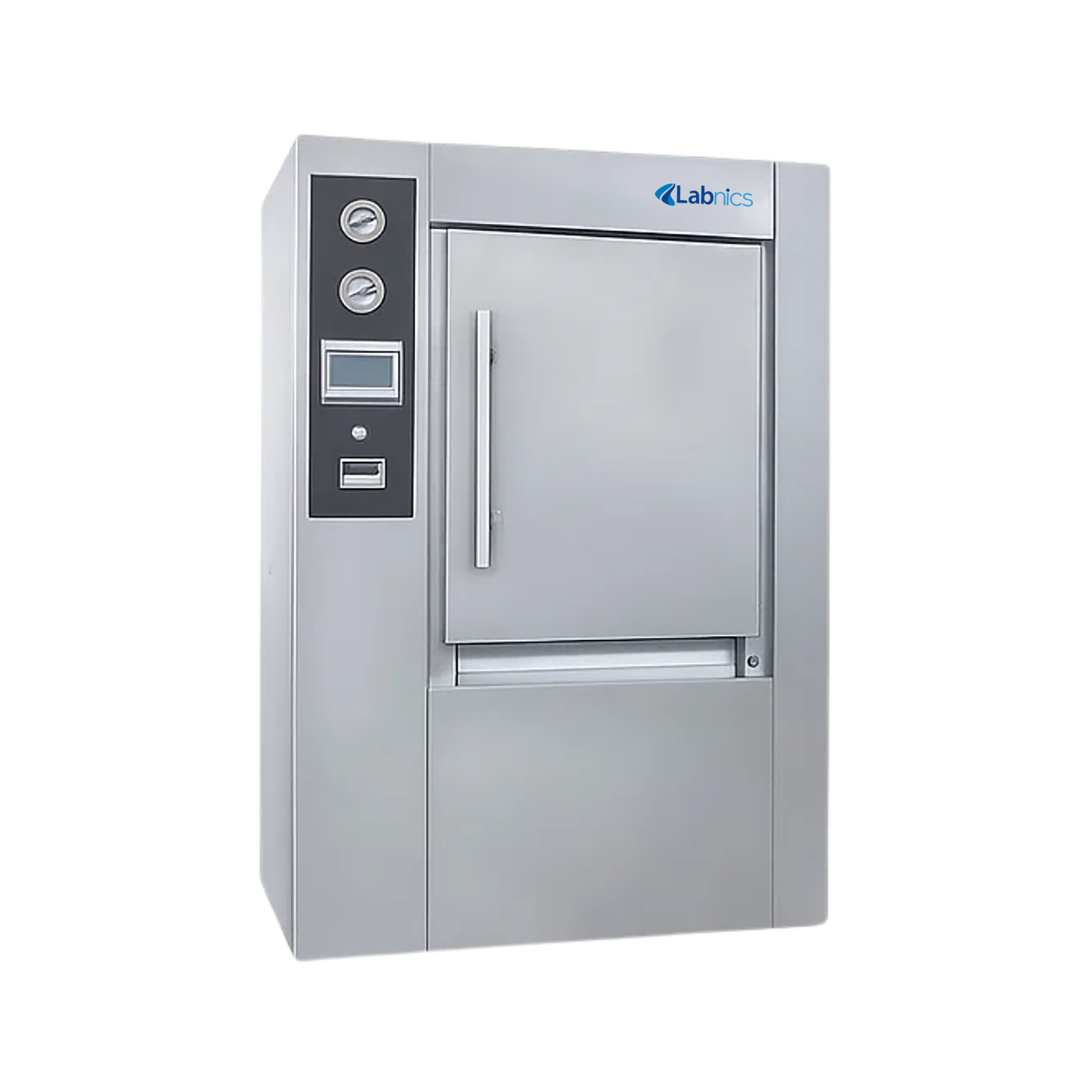

Pulse Vacuum Autoclave NPVA-102 features a 1500L capacity, making it suitable for large-scale sterilization applications. It utilizes a pulsating vacuum to improve sterilization consistency. Our unit comes with a double-door interlock system to ensure safety under high pressure. It incorporates a high-precision air filter, ensuring a sterilization rate of 99.97%. This pulse vacuum autoclave includes a built-in micro-dot printer for real-time data printing.
| Capacity |
1500L |
| Pressure of inner chamber |
-0.1 to 0.3Mpa |
| Pressure of jacket |
0.3Mpa |
| Designed temperature |
150°C |
| Working temperature |
139°C |
| Working pressure |
0.25Mpa |
| Vacuum leakage rate |
≤0.13KPa/min |
| Ultimate vacuum |
-97Kpa |
| Opening pressure for the inner chamber’s safety valve |
0.28Mpa |
| Opening pressure for jacket’s safety valve |
0.28Mpa |
| Precision of sterilization temperature control |
0 to 2°C |
| Temperature uniformity |
±1°C |
| Negative pressure pulsation vacuum amplitude and times |
Amplitude -80 to 0Kpa, Times 1 to 99 |
| Times of pulses across pressure |
Amplitude -80 to 80Kpa, Times 1 |
| Times of positive pressure pulses |
1 to 3 |
| Steam consumption |
80Kg/C |
| Tap water consumption |
750Kg/C |
| Power consumption |
380V, 50Hz |
| Power supply |
4kW |
| Internal dimension |
680×1180×1900mm |
| External dimension |
2220×1490×2050mm |
| Packaging dimension |
2140×1480×2000mm |
| Weight |
1850Kg |
FAQ for Pulse Vacuum Autoclave NPVA-102
1: How does the pulsating vacuum improve sterilization?
This Pulse Vacuum Autoclave uses a pulsating vacuum method that removes cold air and allows steam to fully penetrate the load. This process ensures a more consistent and reliable sterilization compared to traditional methods.
2: What kind of control system does this Pulse Vacuum Autoclave NPVA-102 have?
The Pulse Vacuum Autoclave comes with an intuitive Siemens programmable logic controller (PLC) and a color touchscreen. This setup makes it easy to program sterilization cycles and monitor real-time process parameters like temperature and pressure.
3: Can the Pulse Vacuum Autoclave NPVA-102 save water and energy during operation?
Yes, the Pulse Vacuum Autoclave is designed with energy-efficient features and an integrated water-saving system. This reduces both power and water consumption, which is cost-effective and environmentally friendly.
4: How does the door sealing system work?
The door sealing ring is automatically sealed using inflation pressure and made from a wear-resistant silicone rubber. This design improves sealing reliability and extends the service life of the seal to up to 1500 cycles.
5: How can I tell if the vacuum leakage rate is within acceptable limits?
The Pulse Vacuum Autoclave automatically monitors vacuum leakage, which should be less than or equal to 0.13 KPa/min. If leakage exceeds this, it usually triggers alerts, indicating the need for inspection or seal replacement.
