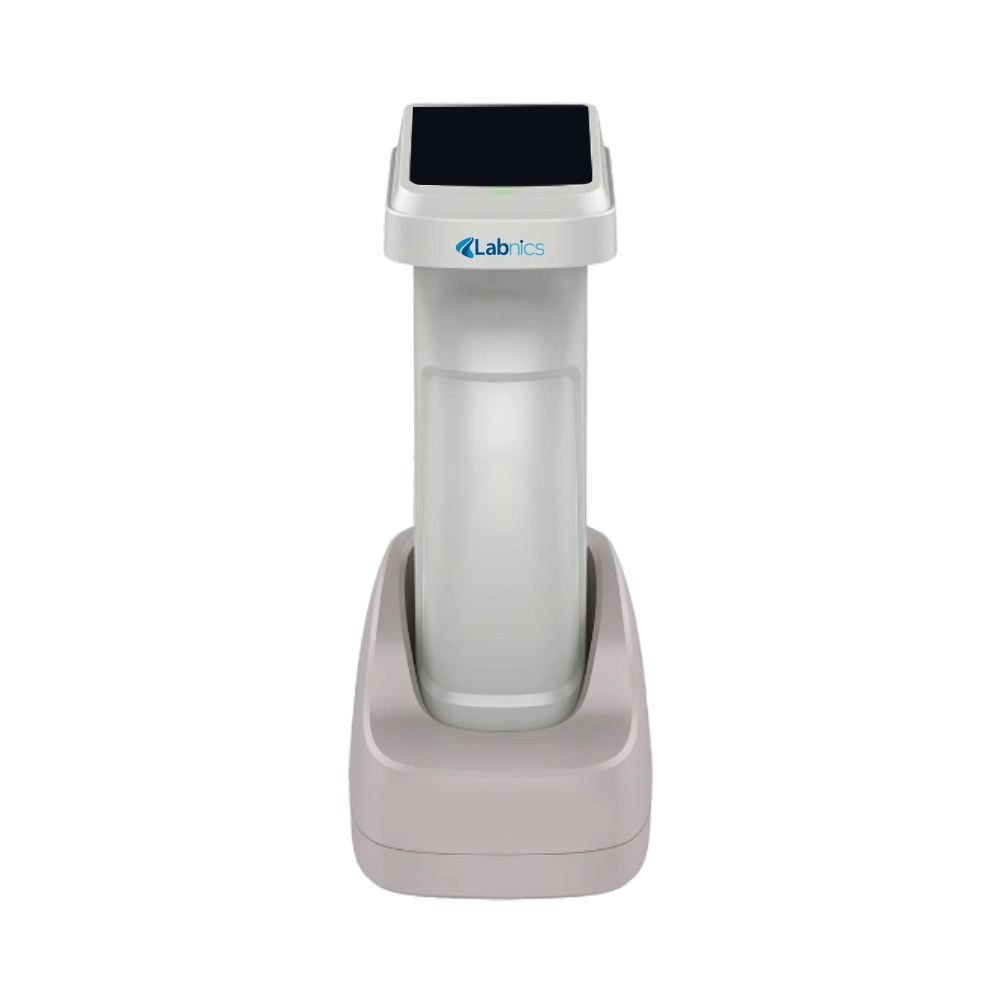

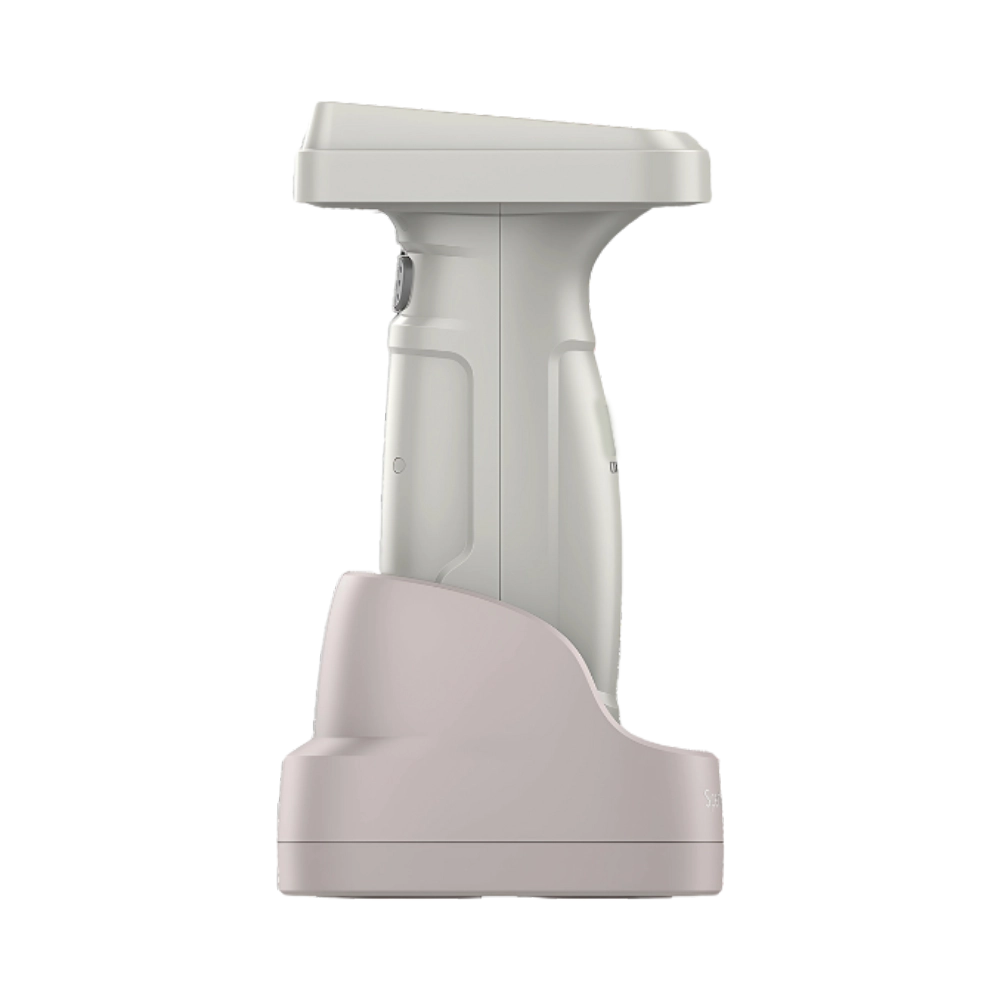

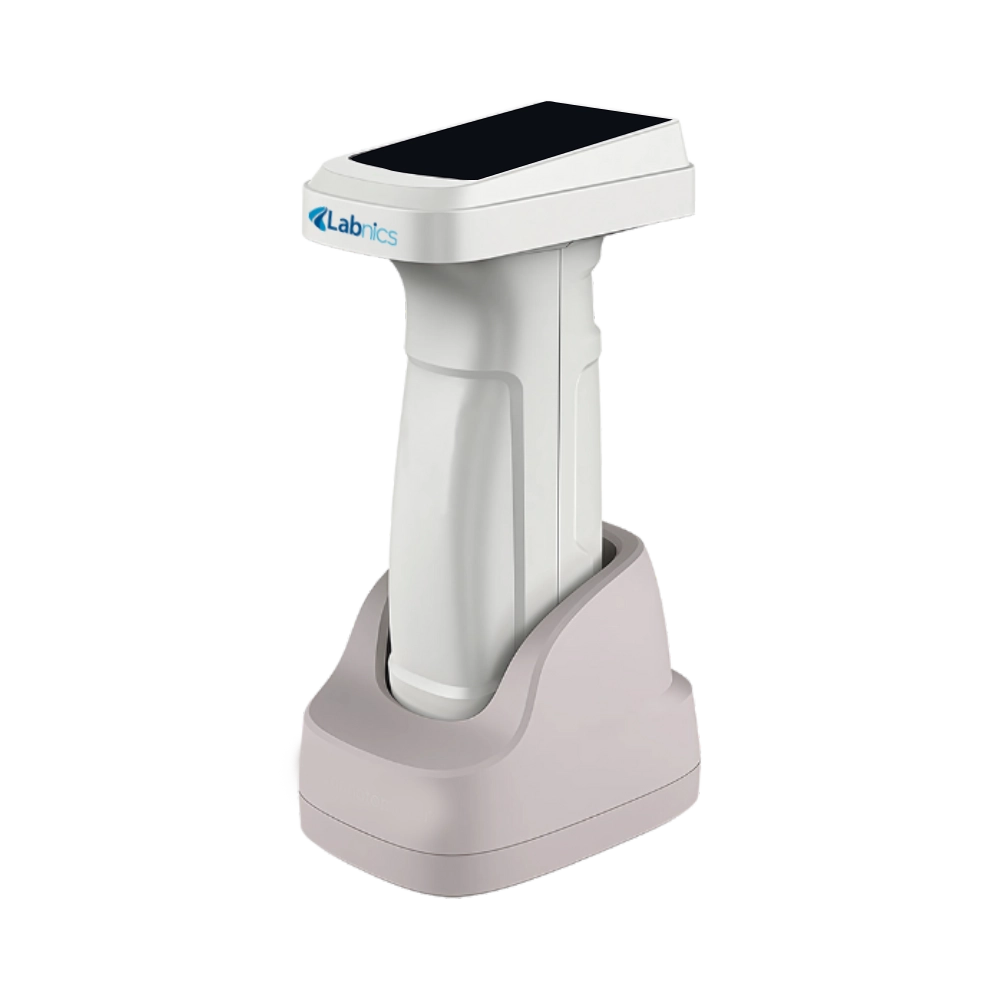

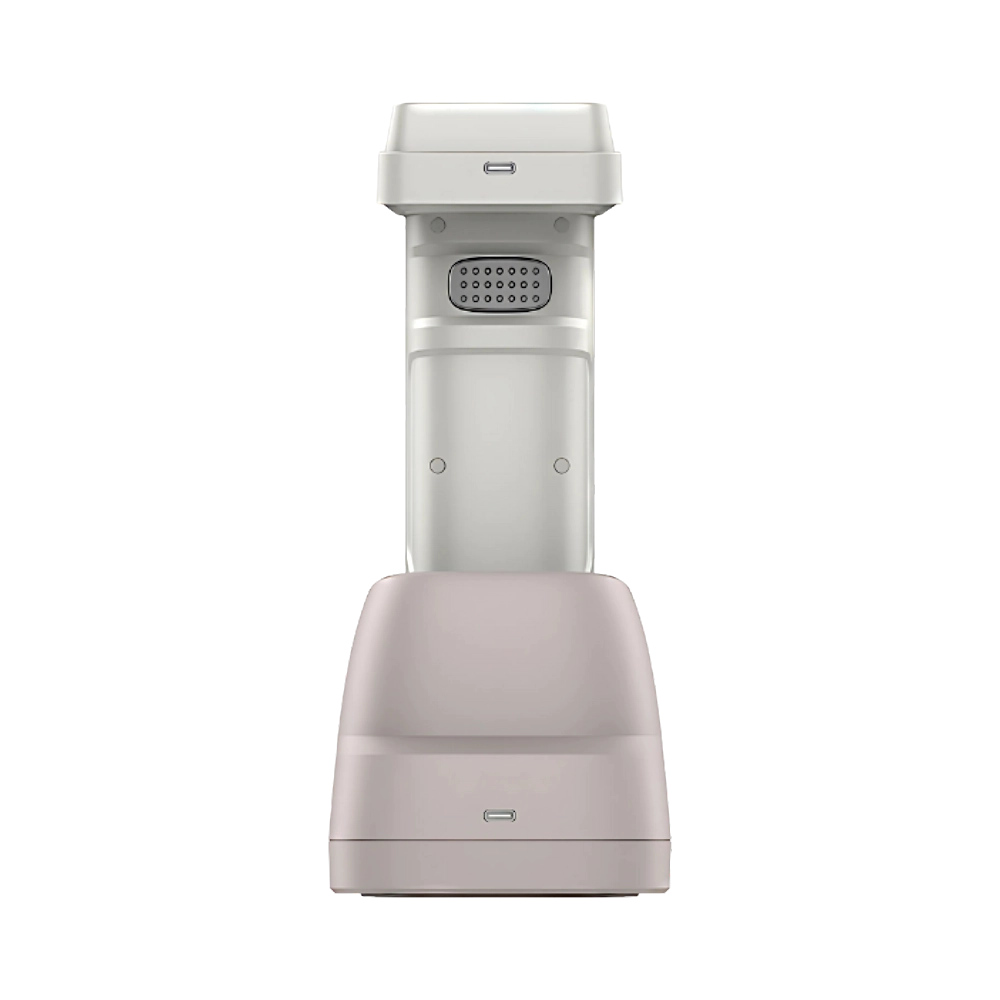

Portable Spectrophotometer NPS-102

---

$3,263.00

Buy Now Data Sheet

Specifications

Measuring aperture	Six: Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, 1×3mm
Measuring geometry	D/8, SCI/SCE
Light source	Full-band balanced LED light source + UV
Sensor	Dual-row high-precision CMOS array sensor
Repeatability	ΔE × ab ≤ 0.02
Inter-instrument agreement	ΔE × ab ≤ 0.2
Display resolution	0.01
Measurement time	Less than 2 seconds
Accuracy	Metrology level 1
Observer angles	2°, 10°
Sphere size	40mm
Spectroscopic method	Grating
Wavelength interval	10nm
Wavelength range	400 to 700nm
Reflectance range	0 to 200%
Reflectivity resolution	0.0001
Measurement index	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color difference (ΔE×ab, ΔE×cmc, ΔE×94, ΔE ×100), WI (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness, Tint, (ASTM E313-00), Colour Density CMYK (A, T, E, M), Milm, Munsell, Opacity, Color strength
Illuminants	A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Measurement and observation mode	Camera
Calibration	Intelligent automatic calibration
Software	Android, iOS, Windows, WeChat app
Standards	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Interface	USB, Bluetooth
Screen	IPS Full-Color Screen of 3.5 inches
Battery capacity	Rechargeable, 8000 times continuous tests, 7.2V/3000mAh
Light source lifetime	10 years, 1 million tests
Storage	Instrument: 100 standard samples and 10000 samples; APP: mass storage

Features

• User-friendly interface for simple operation
• Durable construction for long-term use
• Wide wavelength ranges from 400 to 700nm
• Stores up to 10,000 sample readings
• Compatible with Android, iOS, Windows
• Multiple color indices and illuminants
• Easy data export and storage

Applications

Portable Spectrophotometer NPS-102 is used for accurate color measurement and analysis in various industries. It is commonly applied in fields such as textiles, automotive, packaging, printing, and quality control.
