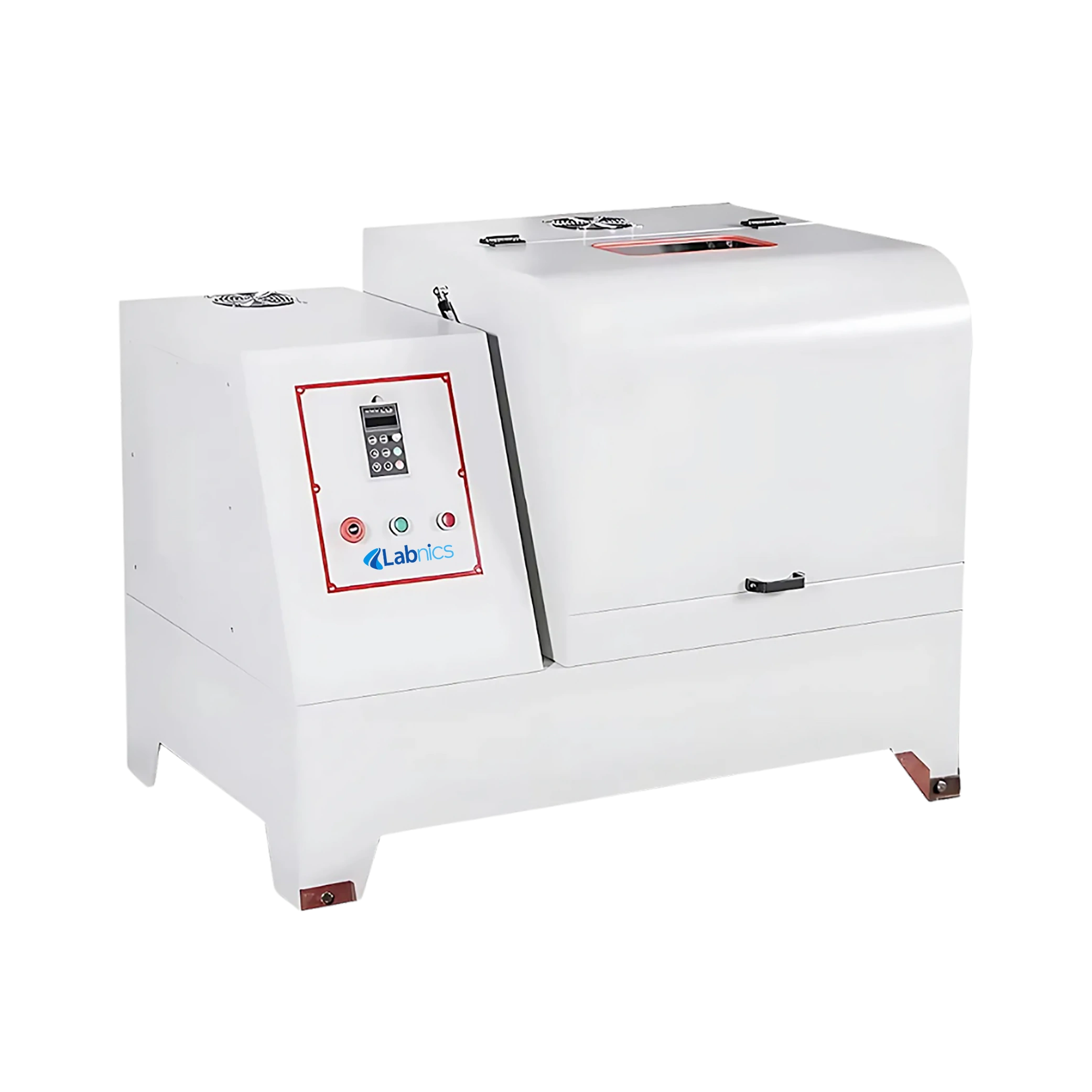

Planetary Ball Mill NPBM-403

Planetary Ball Mill NPBM-403

Planetary Ball Mill NPBM-403 features a maximum jar capacity of 100L for high-volume grinding. It delivers high-speed accuracy to ensure consistent and reliable grinding performance. This unit achieves a revolution speed of 27 to 160 rpm and a rotation speed of 40 to 320 rpm. It incorporates a cooling fan system for efficient heat dissipation. Our ball mill includes built-in safety mechanisms for secure and reliable operation.


$23,925.00

Catalog

Specifications

Jar capacity 100L, each jar maximum 25L
No. of jars accommodated 2 to 4 pcs
Vacuum jar capacity 10 to 20L
Revolution speed 27 to 160 rpm
Rotation speed 40 to 320 rpm
Speed ratio 2:1 rpm
Run set time 1 to 9999 min
Forward and reverse running time 1 to 999 min
Feed particle size Solid material <10mm, Other material <3mm
Transfer method Gear transfer
Working method 2 or 4 ball mill tanks work at the same time
Maximum charge 2/3 volume of the grinding jar
Speed control mode Frequency conversion speed regulation
Control system Frequency conversion control system
Noise <65dB±5
Grinding jar optional Zirconia, Agate, Corundum, Nylon, Stainless steel, Polyurethane, Tungsten Carbide Alloy, Teflon
Total power consumption 11kW
Power supply AC380V 50Hz
Dimension 1750×1140×1330mm
Net weight 1125 kg

Features

  • Planetary motion design
  • Dual-direction rotation
  • Gear transfer method
  • Pneumatic jar holder
  • Low noise operation
  • Frequency speed control

Applications

  • Planetary Ball Mill NPBM-403 is used for fine grinding, mixing, and homogenizing of materials with high precision and consistency. It is commonly applied in laboratories, research institutions, and industrial settings such as ceramics, metallurgy, pharmaceuticals, and material science.

Ask Expert

FAQ for Planetary Ball Mill NPBM-403

1: Can the speed be adjusted based on different material needs?

Yes, our Planetary Ball Mill features frequency speed control that allows precise adjustment of both rotation and revolution speeds. This flexibility helps in handling a wide range of materials with varying grinding requirements.

2: What safety features are included in the Planetary Ball Mill NPBM-403?

Our Planetary Ball Mill includes built-in safety mechanisms like overcurrent and undervoltage protection. These features help protect the equipment and ensure user safety during extended operation.

3: Is the Planetary Ball Mill suitable for continuous operation?

Yes, our Planetary Ball Mill incorporates a cooling fan system that enhances airflow and promotes high-speed heat dissipation. This allows stable performance even during long-duration grinding sessions.

4: How easy is it to operate the Planetary Ball Mill NPBM-403?

The Planetary Ball Mill comes with user-friendly controls and a pneumatic jar holder for secure placement. The intuitive design simplifies setup and operation for both experienced users and beginners.

5: How long is the Planetary Ball Mill NPBM-403 expected to last with proper maintenance?

With regular maintenance and proper usage, the Planetary Ball Mill is designed for long-term operation. Following the recommended maintenance schedule greatly extends its service life.

6: How easy is it to operate the Planetary Ball Mill?

The Planetary Ball Mill features a user-friendly control panel designed for straightforward operation. Its intuitive settings make it accessible for both experienced users and beginners, reducing setup time and errors.

7: Is this Planetary Ball Mill suitable for producing nano-sized powders?

Yes, the powerful impact and friction forces generated by the planetary motion enable ultra-fine grinding down to the nanometer scale. This capability supports advanced research and high-precision applications.

8: Can the jars be easily replaced or cleaned?

The jars are designed for easy removal, replacement, and cleaning to maintain hygiene and prevent cross-contamination. This feature also supports quick turnaround between different grinding tasks.

9: Does the Planetary Ball Mill require regular maintenance?

Regular maintenance is minimal and mainly involves cleaning the jars and checking mechanical components. Keeping the mill clean ensures consistent grinding quality and prolongs the equipment’s lifespan.
