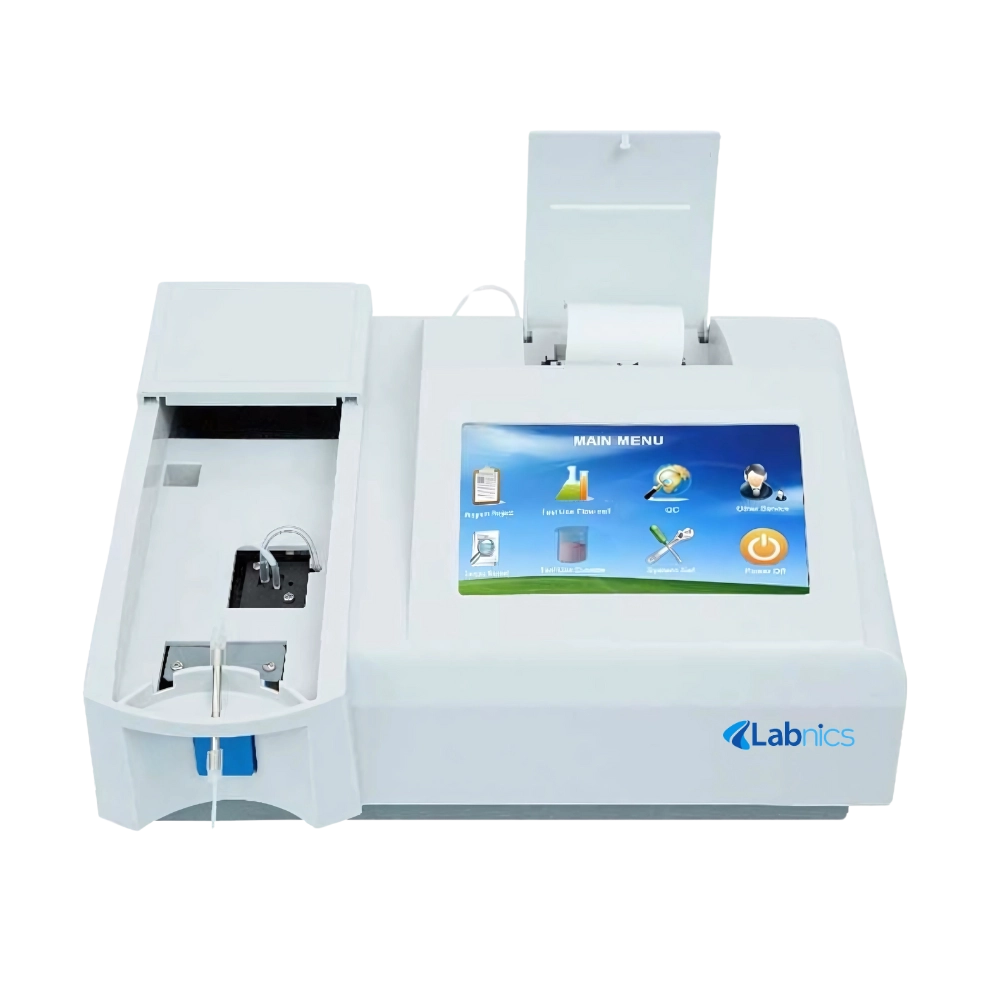

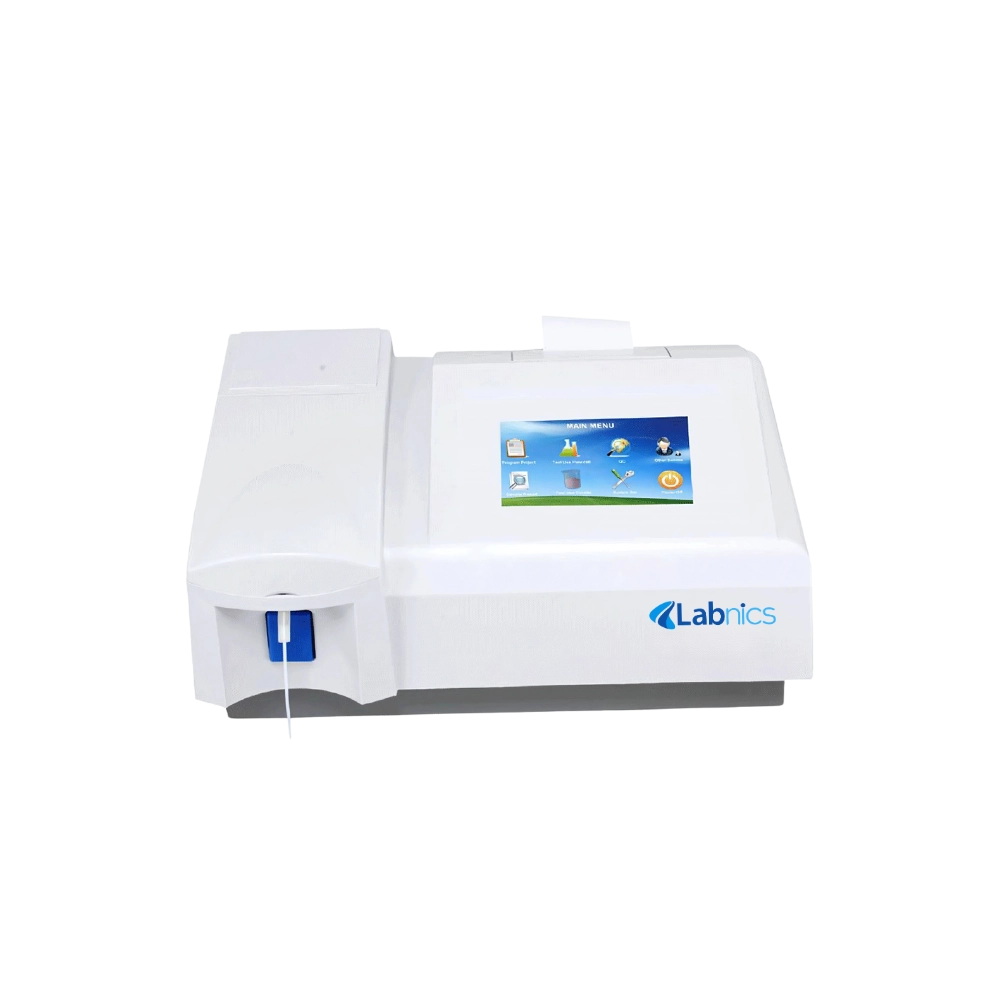

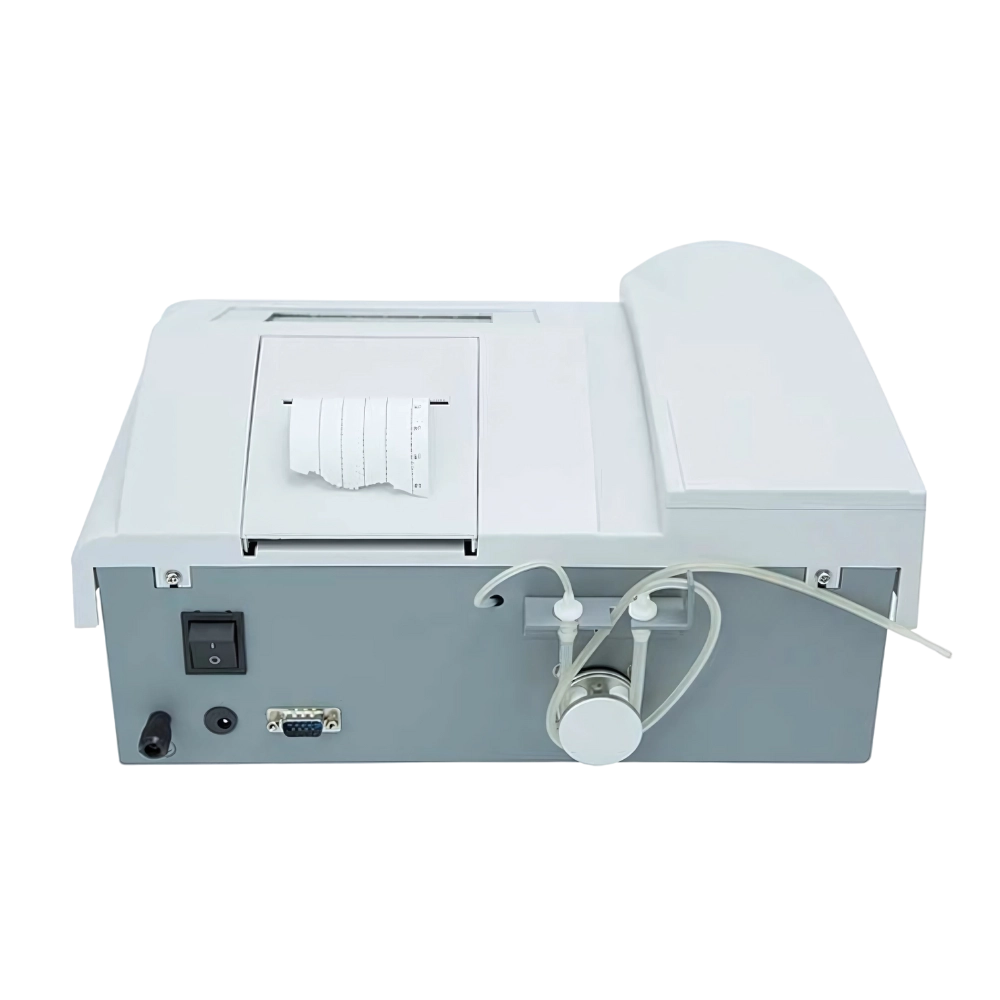

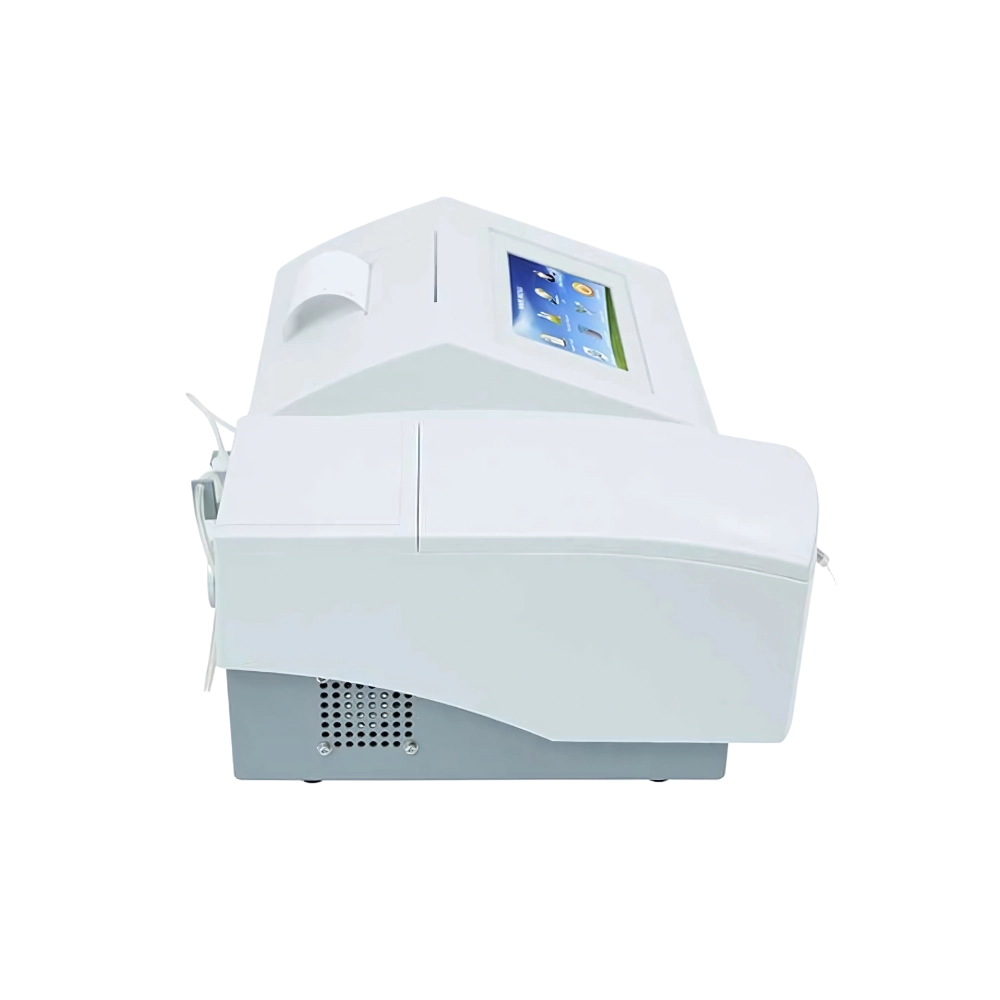

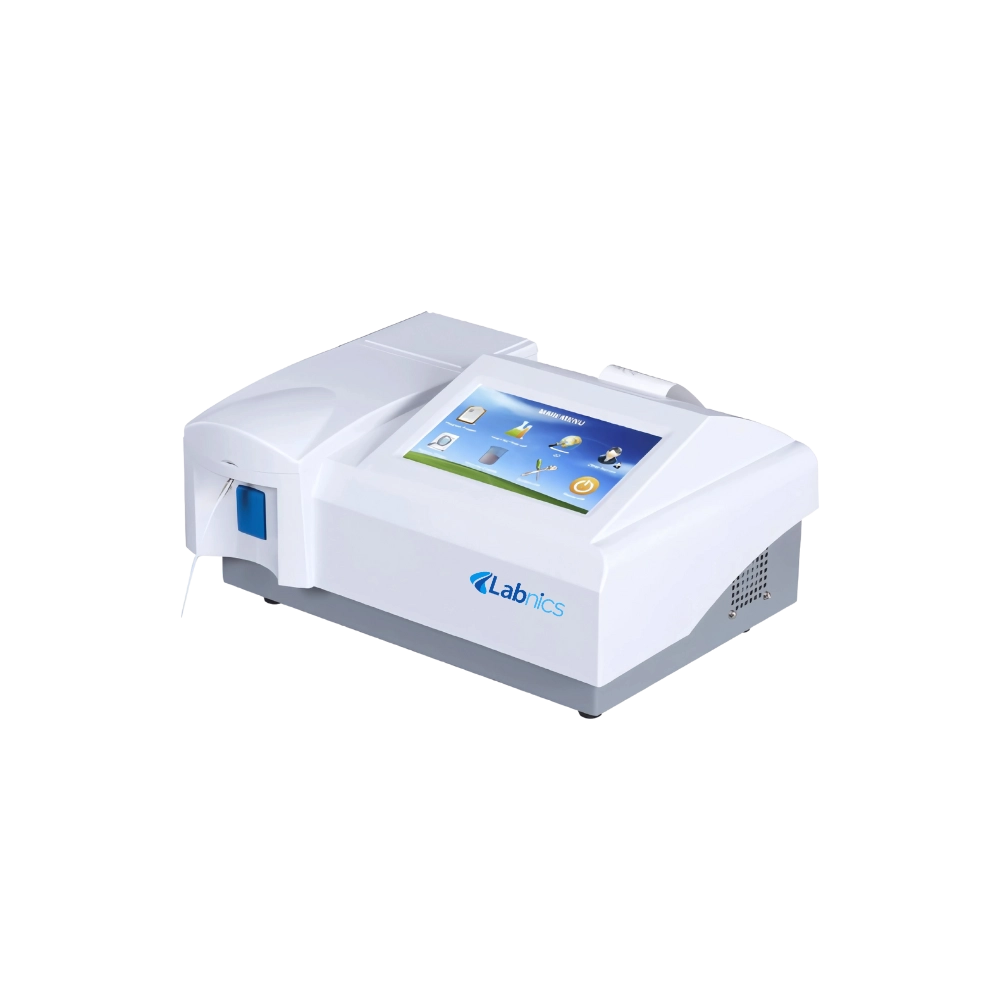

Semi-Automatic Chemistry Analyzer NSCA-201
Semi-Automatic Chemistry Analyzer NSCA-201 features 7 standard wavelength filters and 1 free filter position for user customization. It is designed with a capacity ranging from 0 to 3000 µL for optimal performance. This analyzer supports both flow cell and cuvette test modes, making it versatile for various applications. It operates efficiently in a work environment with temperatures between 0°C and 40°C and humidity levels of ≤80%. Our unit includes a 7-inch color LCD touchscreen, providing a user-friendly interface for easy operation.
| Wavelength | 7 standard filters (340nm, 405nm, 492nm, 510nm, 546nm, 578nm, 630 nm) and 1 free position |
| Wavelength accuracy | ±2 nm, width ≤ 10nm |
| Capacity | 0 to 3000 µL (≥500µL recommended) |
| Absorbance range | 0 to 4.500 Abs |
| Absorbance accuracy | outside 0.0001 Abs, inside 0.00001 Ab |
| Carry over | < 1% |
| Repeatability | < 1% |
| Temperature range | 0 to 40°C |
| Incubator temperature | 37°C, 30°C, 25°C |
| Temperature accuracy | ±0.1°C |
| Humidity | ≤ 80% |
| Test mode | Kinetic, End point, Two-point, Absorbance |
| Quality control curve | X̅, SD, CV%, L-J |
| Flow cell | 32 µL quartz glass, 10 mm |
| Heating source | Philips 6V 10W halogen lamp |
| Display | 7 inches color LCD, touchscreen |
| CPU | ARM series high-speed micro CPU |
| Data storage | ≥10,000 |
| Printer | Internal thermal printer |
| Interface | RS232 |
| Power supply | 100 to 240VAC，50 to 60Hz， |
| Overall dimension | 340×270×160mm |
| Weight | 5kg |
Semi-Automatic Chemistry Analyzer NSCA-201 is utilized to determine the chemical properties of various samples, providing critical data for accurate testing and analysis. It is applied in clinical laboratories, hospitals, pharmaceutical research, environmental testing, food safety, and academic research institutions.
| Liver function | ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, Nh3 |
| Renal function | BUN, CRE, UA, URE, CO2-CP, γ-G |
| Lipids | T-CHO, TG, HDL-C, LDL-C |
| Cardiac function | CK, CK-MB, LDH |
| Immune proteins | IGA, IGG, IGM, C3 |
| Others | GLU, HGB, AMS |
Labnics Chemistry Analyzers (Semi-Automatic) are capable of testing a wide range of parameters, employing a diverse spectrum of wavelengths to ensure accurate results. They require some manual input from the operator to initiate the testing process. Our analyzers are built to be robust, requiring minimal maintenance to ensure long-lasting performance. They feature a built-in thermal printer for easy result documentation. These units come equipped with an LCD touchscreen for simple and intuitive operation.
| Assay | 80 assay |
| Throughput 1 Reagent | 400 tests / h |
| Throughput 2 Reagent | 400 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 40 assay |
| Throughput 1 Reagent | 300 tests / h (max) |
| Throughput 2 Reagent | 240 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 40 assay |
| Throughput 1 Reagent | 240 tests / h (max) |
| Throughput 2 Reagent | 150 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 36 assay |
| Throughput 1 Reagent | 200 tests / h (max) |
| Throughput 2 Reagent | 150 tests / h (max) |
| Throughput with ISE | + 100 tests/h |
