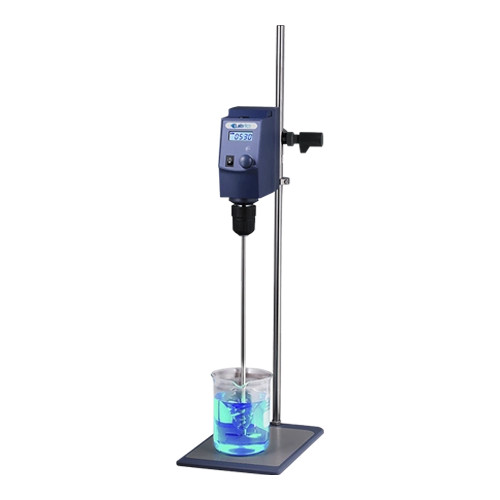

Overhead Stirrer NOHS-103
Overhead Stirrer NOHS-103 is an overhead, motor-driven agitation equipment designed for emulsification or homogenization of a compound mixture. It is equipped with a unique shaft stirrer design that helps in the mixing of viscous liquid mixtures with high shear stress. The microprocessor-controlled system ensures safe operation during voltage fluctuations and regulates the speed at desired levels.
Stirring capacity | 40L |
Motor input power | 120W |
Motor output power | 100W |
Stir speed | 50-2200rpm |
Stir speed accuracy | ±3rpm |
Permissible Ambient Temperature | 5-40°C, 80%RH |
Maximum viscosity | 50000mPas |
Voltage | 100V-240V, 50/60 Hz |
Power | 130W |
Max. torque | 60Ncm |
Display | LCD |
Interface | RS232 |
Overall dimensions (L×W×H) | 83 × 220 × 186 mm |
Weight | 2.8 kg |
It is widely used essential laboratory equipment in areas like Analytical and Organic Chemical laboratories and industries such as petroleum, paint, medicine, environment protection, biochemistry, education and scientific research etc.
Work plate Dimension | φ135mm (5 inches) |
Work plate material | Stainless steel with ceramic coat |
Motor type | Brushless DC motor |
Motor rating input | 5W |
Work plate Dimension | 184 ×184 mm |
Work plate Material | Glass ceramic |
Heating Position | 1 |
Heating Output | 1000W |
Top plate dimension | 180×180mm |
Stirring capacity | 50ml-5000ml |
Maximum temperature for top plate | 325°C |
Temperature Range | Ambient to 400°C |
Top plate dimension | 280×280mm |
Stirring capacity | 50ml-15000ml |
Maximum temperature for top plate | 325°C |
Temperature Range | Ambient to 400°C |
Work plate material | Glass ceramic |
Work plate size | 184 × 184 mm |
Stirring Capacity | 1 L – 10 L |
Heating output | 1000 W |
Work plate material | Stainless steel with ceramic coating |
Work plate size | Φ 135 mm |
Stirring capacity | 20 L |
Magnetic bar length | 80 mm |
Work plate material | Stainless steel with ceramic coating |
Work plate size | Φ 135 mm |
Stirring capacity | 20 L |
Magnetic bar length | 80 mm |
No of Positions | 3 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-1000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 3 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-5000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 3 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-10000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 3 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-15000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 2 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-1000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 2 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 500ml-5000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 2 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-10000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 2 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-15000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 4 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-1000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 4 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-5000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 4 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-10000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Positions | 4 |
Stirring Bar Speed Range | 100~1800rpm |
Stirring Bar Capacity for each position | 50ml-15000ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Points | 5 |
Stirring Bar Speed Range | 100~1800rpm each point |
Stirring Bar Capacity for each position | 5×50ml-250ml |
Stirring Bar Speed Accuracy | ±1 rpm |
No of Points | 10 |
Stirring Bar Speed Range | 100~1400rpm each point |
Stirring Bar Capacity for each position | 50ml-250ml |
Stirring Bar Speed Accuracy | ±1 rpm |
Maximum temperature setting | 450℃ |
Maximum temperature setting with E-sensor | 300℃ |
Safety temperature | 50 to 500 ℃ |
High-temperature protection | 10 to 50℃ |
