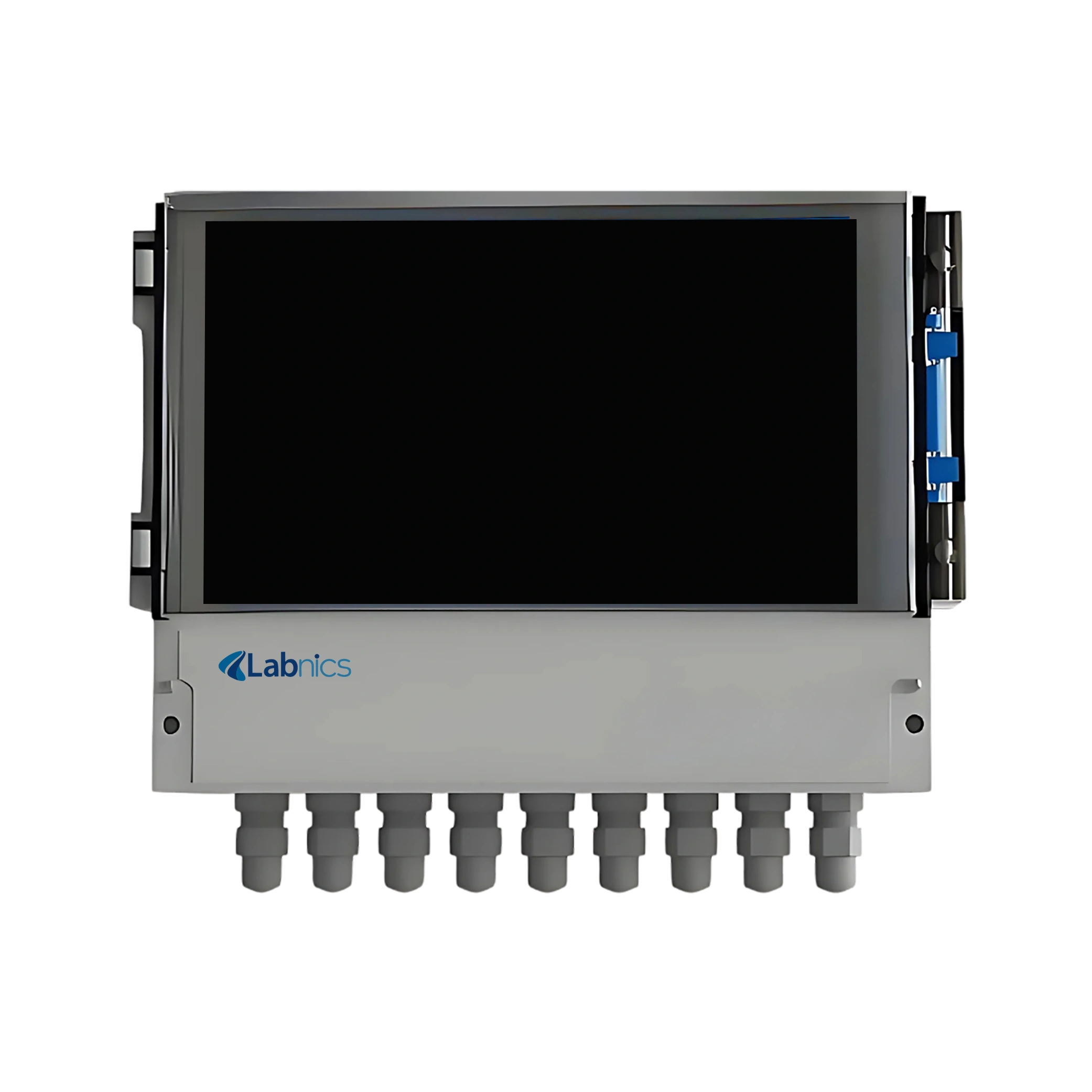

Multiparameter Water Quality Analyzer NMWA-300 is designed with a measurement range of 0 to 500 mg and a resolution of 0.01 mg. It includes multi-sensor connectivity to support diverse monitoring requirements. This unit offers a flexible sensor combination for adaptable monitoring needs. It supports wall-mounted installation for secure and stable placement. Our water quality analyzer provides automatic electrode compensation within a defined range.
$2,575.00
Specifications
| Measurement Range | 0 to 500 mg/L, 0 to 60 °C |
| Resolution | 0.01 mg/L ; 0.1 °C |
| Accuracy | ±5% FS |
| Temperature Compensation | 0 to 60 °C PT1000 |
| Digital Interface | 1 Road or 2 RS485 (ModBus protocol) |
| Protection Rating | IP65 |
| Analog Output | 1-channel or 2-channel 4~20 mA (4-wire), maximum load 750 Ω |
| Relays | 2 or 4 groups of relays, divided into high and low point alarm control Load AC220V/3A |
| Power Supply | AC220V, DC24V |
| Dimensions | 218 × 183 × 126 mm |
Features
Applications
Optional Accessories
Chloride electrode
Fluoride electrode
Blue-green algae
Chlorophyll electrode
Calcium electrode
Turbidity electrode
Ask Expert
FAQ for Multiparameter Water Quality Analyzer NMWA-300
1: How does the Multiparameter Water Quality Analyzer NMWA-300 maintain accuracy under different temperatures?
The Multiparameter Water Quality Analyzer NMWA-300 features automatic electrode compensation, which ensures stable and precise measurements even when temperature conditions change.
2: Can the Multiparameter Water Quality Analyzer NMWA-300 support multiple sensors at once?
Yes, the Multiparameter Water Quality Analyzer NMWA-300 is designed with multi-sensor connectivity, allowing flexible sensor combinations to meet diverse monitoring requirements.
3: Is the Multiparameter Water Quality Analyzer NMWA-300 suitable for industrial applications?
Our Multiparameter Water Quality Analyzer NMWA-300 is built with an IP65 protection rating and a reliable watchdog function, making it suitable for industrial water discharge monitoring and environmental testing.
4: What maintenance does the Multiparameter Water Quality Analyzer NMWA-300 require?
The Multiparameter Water Quality Analyzer NMWA-300 is designed for minimal maintenance, though periodic electrode calibration and cleaning are recommended to ensure accuracy.
5: Where can the Multiparameter Water Quality Analyzer NMWA-300 be installed?
This Multiparameter Water Quality Analyzer NMWA-300 supports stable wall-mounted installation, making it ideal for laboratories, water treatment plants, industrial facilities, and continuous field monitoring.
