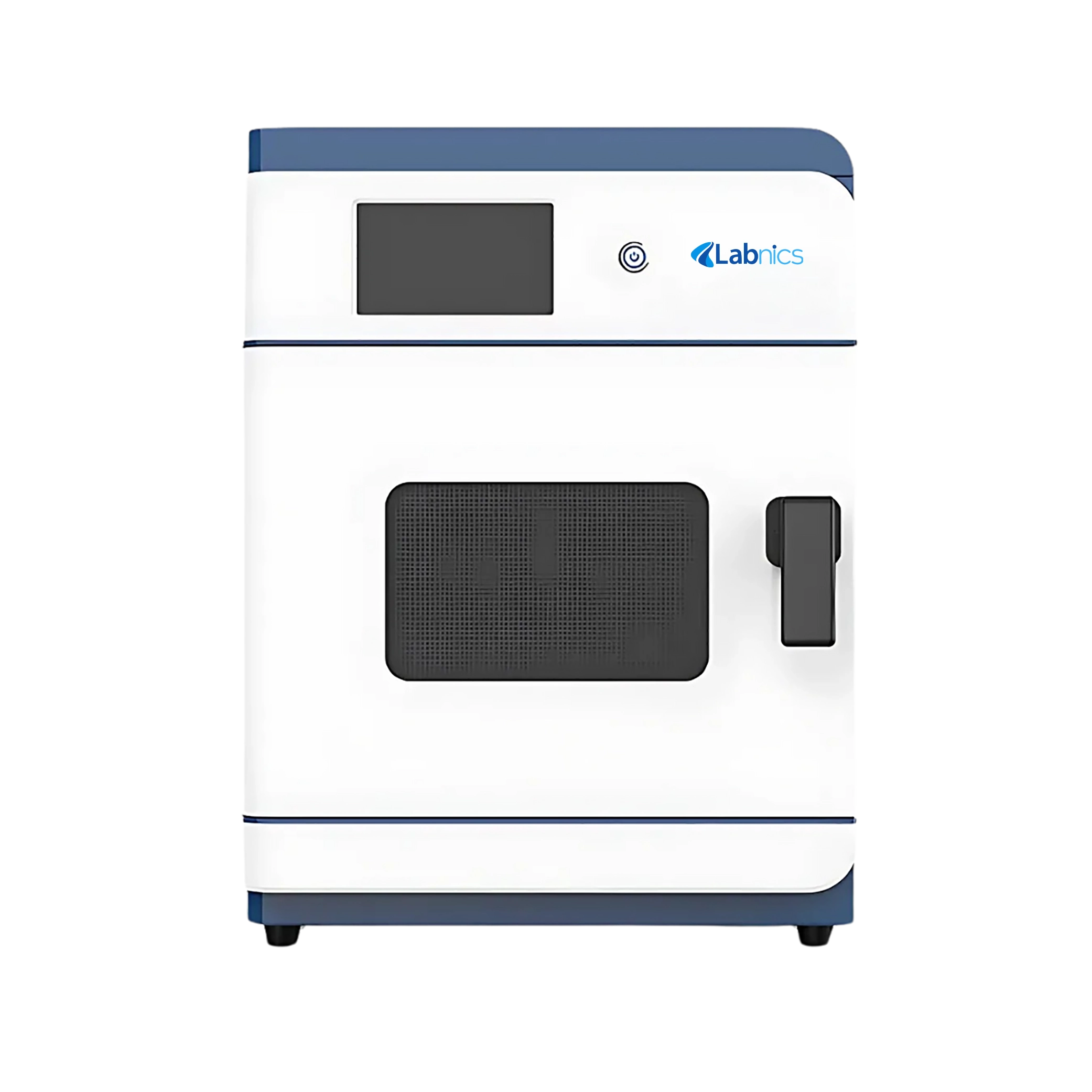

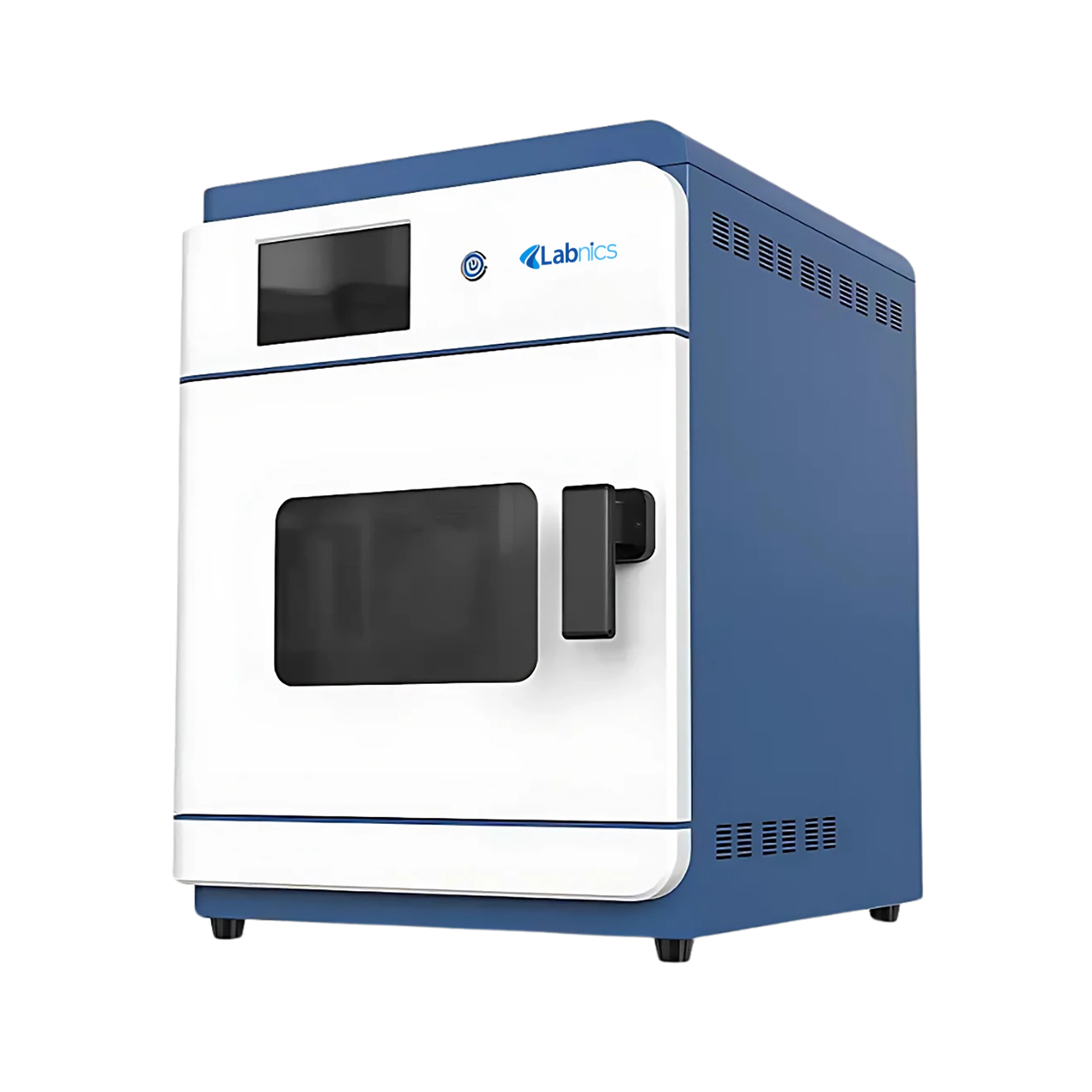

Microwave Digestion System NMDS-302 provides a 55 ml vessel capacity and a maximum temperature of 300°C. It features an explosion-proof self-locking door for reliable performance. The unit includes an automatic microwave shutoff for enhanced safety. It also has a safety rupture disk with dual protection for pressure control. Our digestion system is equipped with infrared non-contact temperature monitoring for safe operation.
$6,775.00
Specifications
| Sample capacity | ≥8 samples/batch |
| Vessel capacity | 55 ml |
| Temperature range | 0 to 300°C |
| Maximum Temperature | 300°C |
| Temperature accuracy | ±0.5°C |
| Pressure | 1500 psi |
| Inner tank material | Polytetrafluoroethylene (PTFE) |
| Working mode | Continuous 360° unidirectional rotation |
| Power consumption | 2600 W |
| Power supply | 220 to 240 V AC, 50/60 Hz |
| Dimensions | 507 × 619.5 × 666 mm |
| Weight | 50 kg |
Features
Applications
Ask Expert
FAQ for Microwave Digestion System NMDS-302
1: How often does the Microwave Digestion System NMDS-302 require calibration or maintenance?
Regular visual inspection and functional checks are recommended. Calibration frequency depends on usage, but periodic verification of temperature and pressure readings ensures optimal performance.
2: Is there any microwave leakage from the Microwave Digestion System during operation?
No, the system is designed with a tightly sealed stainless steel cavity and furnace door. It meets national standards for microwave leakage, ensuring complete operational safety.
3: Why is a turntable design important for microwave digestion?
The rotating turntable allows 360° uniform microwave exposure to all samples. This consistent energy distribution ensures even digestion, which enhances result reliability across multiple samples.
4: Can I adjust the digestion parameters manually in this Microwave Digestion System NMDS-302?
Yes, users can manually set or adjust parameters such as temperature, pressure, and digestion time based on the sample type and method requirements.
5: What are the recommended practices for cleaning and maintaining the digestion vessels?
After each use, vessels should be rinsed thoroughly with deionized water and, if needed, cleaned with a mild acid solution. Ensure vessels are fully dry before storage to maintain their integrity.
Labnics Microwave Digestion Systems utilize advanced microwave heating technology for faster sample digestion. These units are equipped with durable vessels resistant to harsh conditions, ensuring long-lasting performance. They continuously display pressure and temperature for each vessel, providing accurate control throughout the process. Our Digestion Systems allow users to adjust key parameters for flexibility in the operation.
