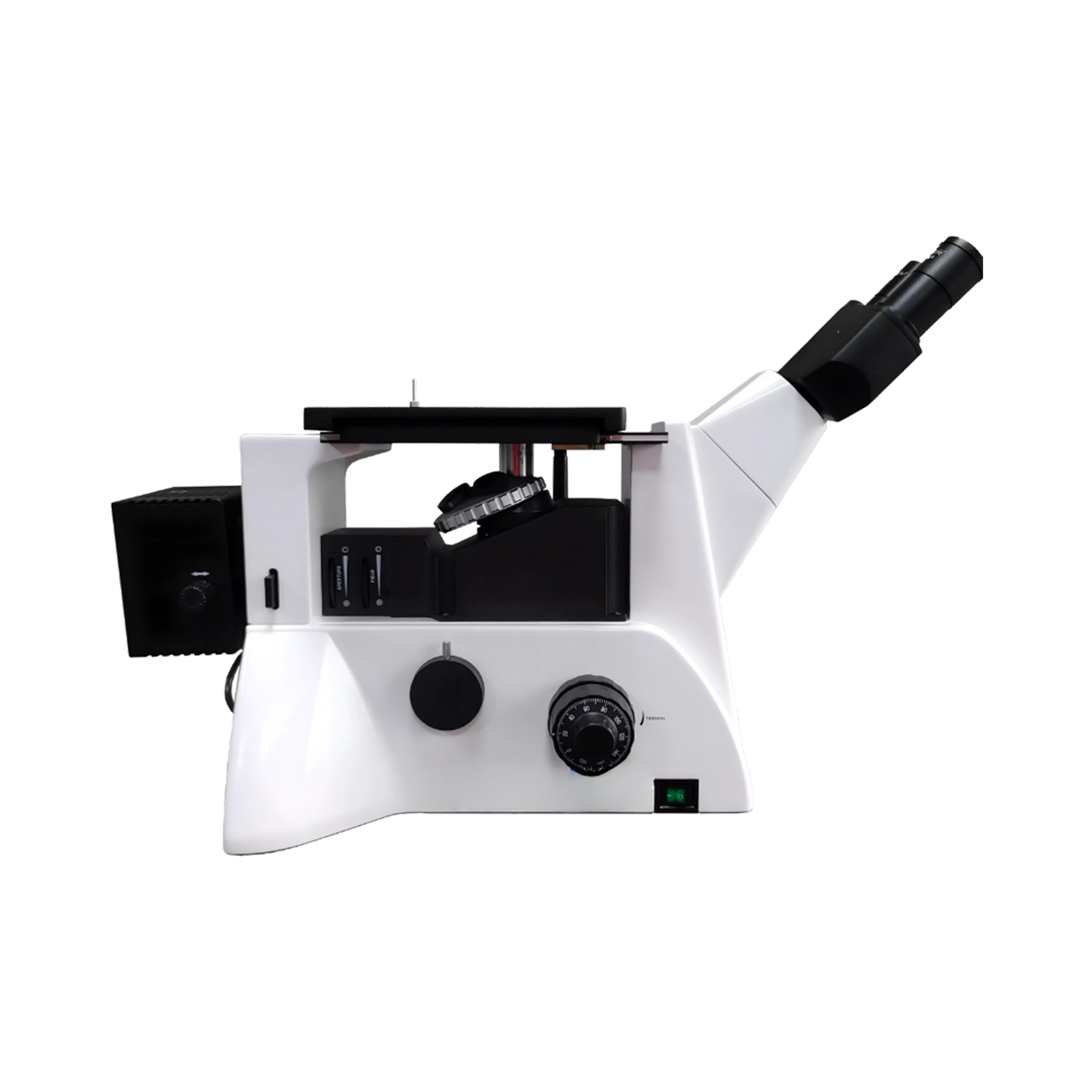

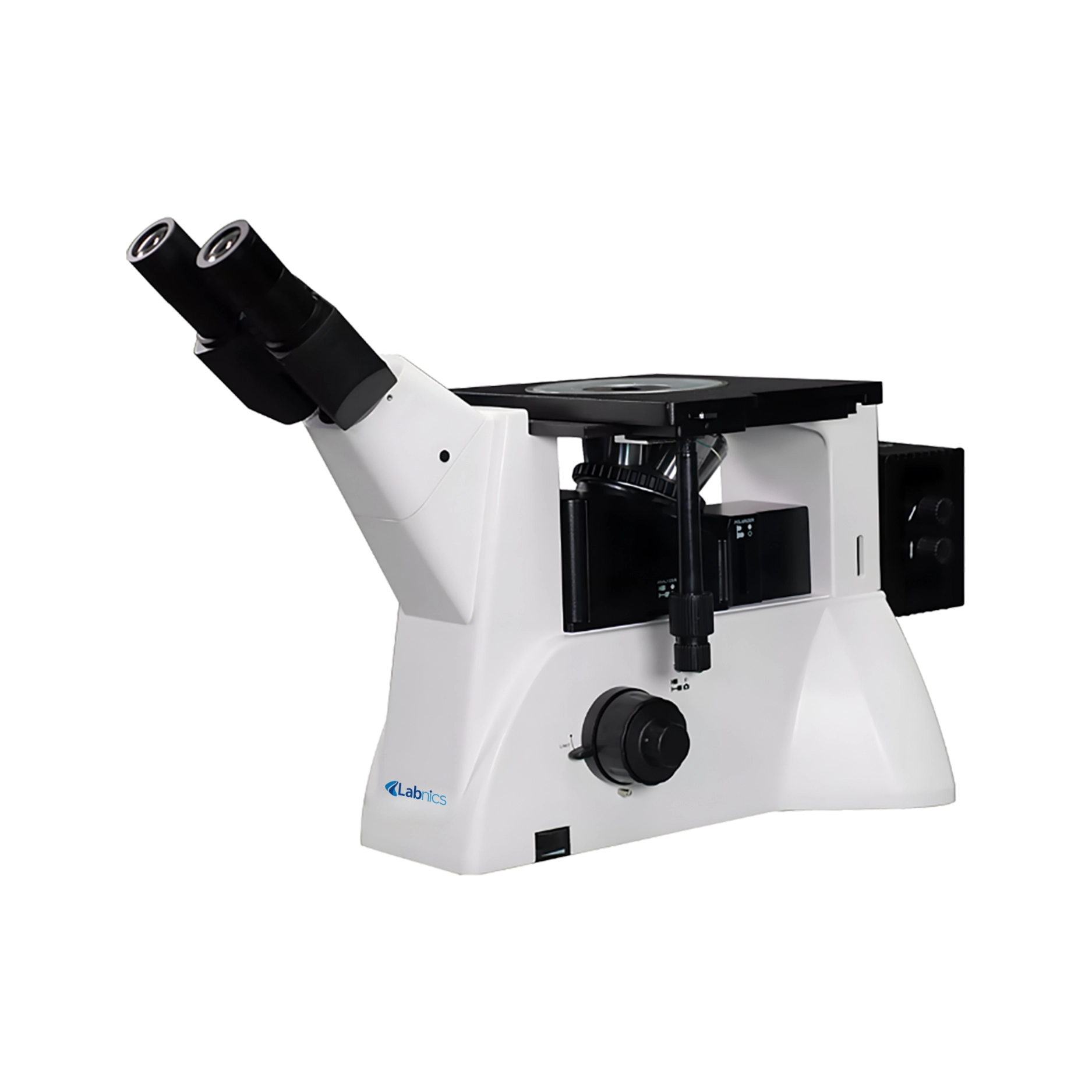

Metallurgy Microscope NMM-102 is designed for bright field observations in metallurgical applications. It features WF10× wide field eyepieces offering a 22mm field of view. This unit comes with four objective lenses for varied magnification and working distances. It is powered by a 6V/30W halogen lamp with adjustable brightness. Our microscope is built with durable construction for long-lasting and reliable performance.
$3,900.00
| Observation method | Bright field |
| Eyepiece | WF10× / Ø22mm wide field plan eyepiece |
| Objective type | Infinity Plan Achromatic |
| Objectives and working distance | PL L10×/0.25B – 20.2mm PL L20×/0.40B – 8.8mm PL L50×/0.70B – 3.68mm PL L100×/0.85B – 0.4mm |
| Eyepiece tube | Hinged binocular, 45° inclined, 53 to 75mm interpupillary distance |
| Nosepiece | Quintuple, inward-facing ball positioning |
| Focusing mechanism | Coarse/fine coaxial, 2μm precision |
| Stage | Mechanical stage: 242×200mm, movement range: 30×30mm Circular rotating stage: Ø130mm (max), Ø12mm (min) clear aperture |
| Illumination system | 6V/30W halogen lamps, adjustable brightness |
| Filters included | Yellow, green, blue, frosted glass |
High optical clarity
Rotating mechanical stage
Precise sample movement
Interpupillary distance adjustment
Color filter options
Hinged binocular tube
Coaxial fine focusing
Compact and rigid frame
Metallurgy Microscope NMM-102 is used for detailed micro-observation of metallographic structures and surface morphology. It is commonly applied in factories, laboratories, and research institutions for quality control, materials research, and educational purposes in fields like metallurgy, geology, and engineering.
1: How precise is the focusing mechanism?
It features a coaxial coarse and fine focusing system with 2 micrometers precision and a locking device, enabling highly accurate adjustments for detailed observation.
2: Can the Metallurgy Microscope NMM-102 handle both flat and irregular surfaces?
Yes, the combination of a large mechanical stage and an optional circular rotating stage allows stable placement and observation of both flat and uneven sample types.
3: Is the viewing head comfortable for extended use?
Yes, the hinged binocular tube is inclined at 45° and adjustable between 53 to 75mm interpupillary distance, ensuring comfortable viewing for all users during long observation sessions.
4: Is this Metallurgy Microscope NMM-102 easy to maintain?
It is designed with accessible components for easy cleaning, lamp replacement, and long-term maintenance without needing professional service.
5: Does the Metallurgy Microscope NMM-102 support both right- and left-handed users?
Yes, the controls are ergonomically placed and symmetrical, making it comfortable for both right- and left-handed users to operate.
