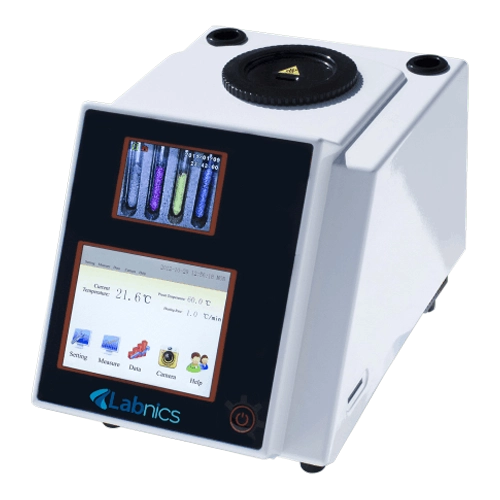

Automatic Melting Point Meter NMPM-204

Automatic melting point meter NMPM-204

Automatic Melting Point Meter NMPM-204

Automatic melting point meter NMPM-204 is a semi-automatic table top instrument intended for determination of the melting point of samples The large TFT touch screen enables accessible setting of operational parameters. It enables auto correction of errors that improvises the readability and specificity of the measurement.

Specifications
Temperature range RT - 420 ℃
Detection method Fully automatic ( compatible with Semi-automatic )
Camera and Video Camera and Video
SD card capacity 32 GB
Result storage 100 groups
Temperature gradients 0.1 °C ~ 20.0 ℃ / min
Temperature accuracy ± 0.3 ℃( < 250 ℃ )
± 0.5 ℃ ( > 250 ℃ )
Repeatability ± 0.1 ℃( At 0.1 ℃ / min )
Exploration model Yes
Video playback Yes
Magnification 7
Operator account 20
Curve storage 80
Display TFT touch screen
Interface USB, RS232, SD card
Standard capillary size Inner diameter- 1.0 mm
Outer diameter- 1.4 mm
Power 110 V-220 V
50 Hz / 60 Hz
120 W
Dimensions 400 × 280 × 300 mm
Gross weight 5 kgs
Features
Applications

It is utilized in chemicals, pharmaceuticals, food and drug administration, colleges and universities and other related departments, scientific research units, medical purpose, spices, dyes, other organic crystalline substances, metallurgic components, biological and molecular samples, etc.

Buy Now

Melting Point Meters

Labnics Melting Point Meters feature an adjustable heating rate, allowing precise temperature control. They provide an intuitive interface for easy operation and parameter setting. They support multi-sample testing, allowing simultaneous analysis of multiple samples. These meters include a self-diagnosis function that detects system errors and ensures reliable operation. Our units provide efficient data management, enabling easy data transfer and storage.
