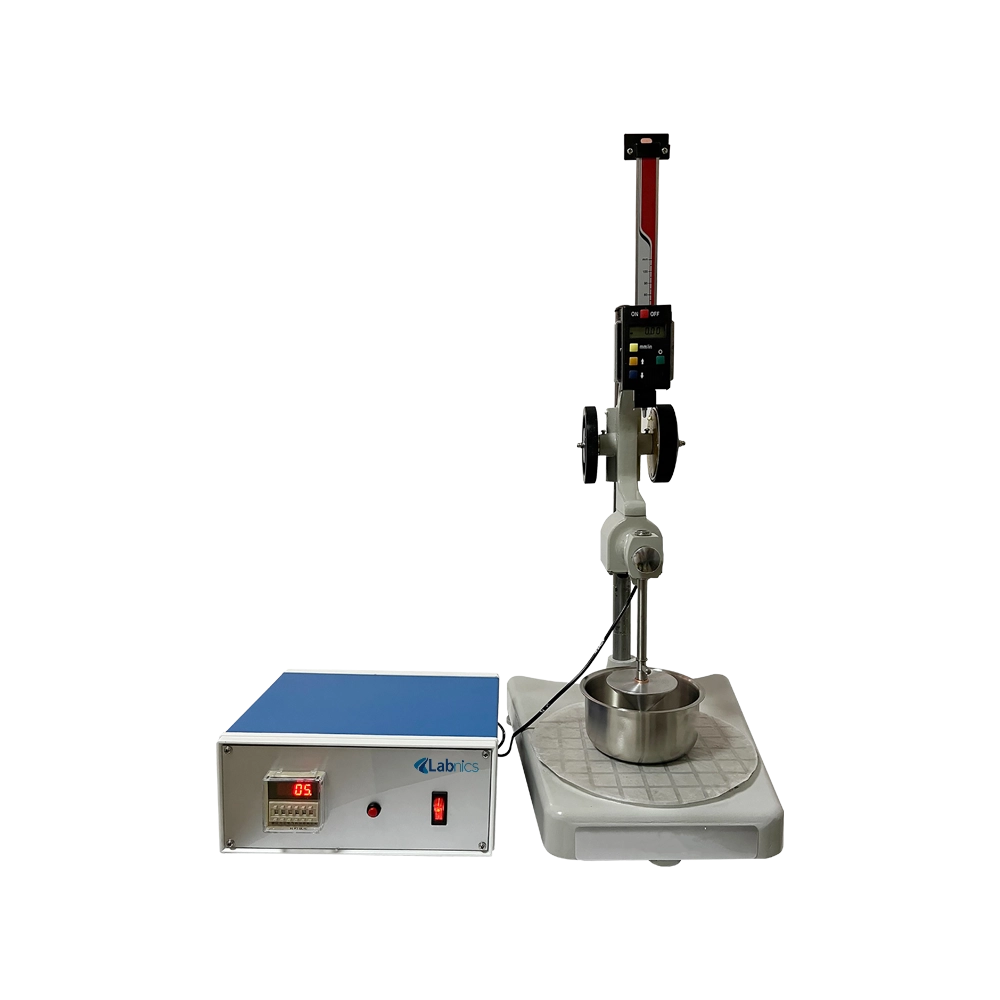

Cone Penetrometer NCP-100
Cone Penetrometer NCP-100 measures a maximum depth greater than 620 cone penetration units for reliable testing. It includes a timer for accurate tracking and measurement of test duration. This penetrometer features an electromagnetic release button for precise and controlled cone operation. Our unit is equipped with a locking screw to ensure stability during operation. It includes an LCD digital display for clear and precise measurement readings.
| Maximum depth measurement | > 620 cone penetration |
| Timer setting range | 0 to 99seconds ± 0.1seconds |
| Operating Environment | Indoor use, no corrosive gases |
| Ambient temperature | ≤ 30°C |
| Display |
LCD digital display Accuracy 0.01mm (0.1cone penetration) |
| Cone penetration indicator battery | LR44H button battery |
| Power | 220V±22V, 50Hz±1Hz |
| Dimensions | 500 × 450 × 350 mm |
| Weight | 25kg |
Cone Penetrometer is used to measure the penetration of greases, petroleum products, and other materials. It finds application in soil testing, food processing, and material evaluation.
Instrument base × 1set
Tamper
| Measuring range | 0.10 % (m/m) to 30 % (m/m) |
| Temperature range | Room temperature to 600 °C |
| Temperature control of the cooking oven | 500 °C ± 2 °C |
| Test positions | 12 |
| Working Voltage | AC 220 V ± 10%, 50 Hz |
| Ambient Temperature | 5 to 35 ℃ |
| Ambient Humidity | ≤ 85% |
| Working Conditions | No vibration, no dust, no corrosive gas, no strong magnetic field interference, no strong light exposure |
| Quantity of Parallel Samples | 2 |
| UV-light Wavelength | 365 nm |
| Light Source | HB LED |
| Electric Agitator | Two channels are controlled separately |
